Accessory Control Display
>>
Radio/HVAC Display
Radio/HVAC Display
Component Connector End Views

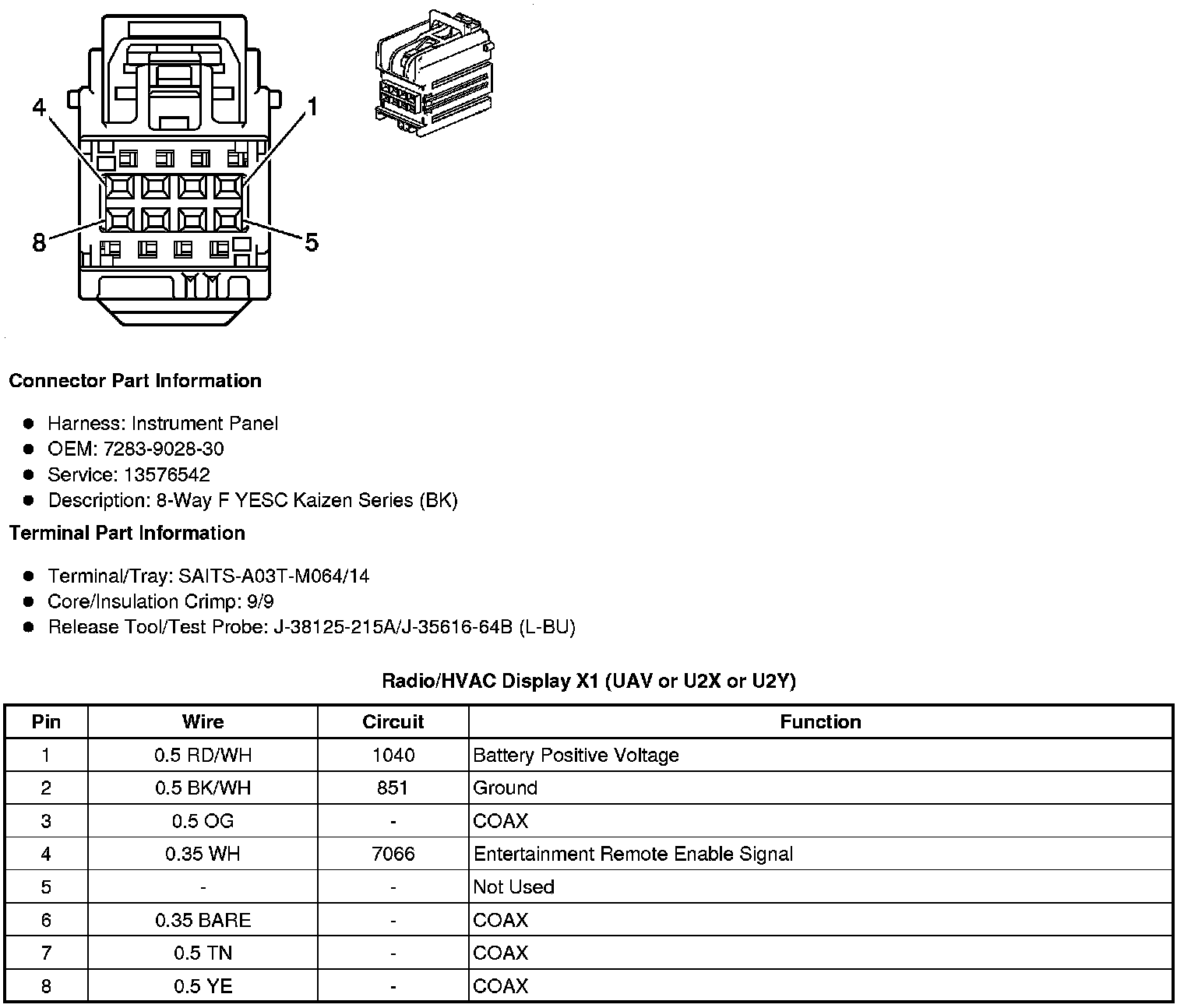

Radio/HVAC Display X1 (UAV or U2X or U2Y)

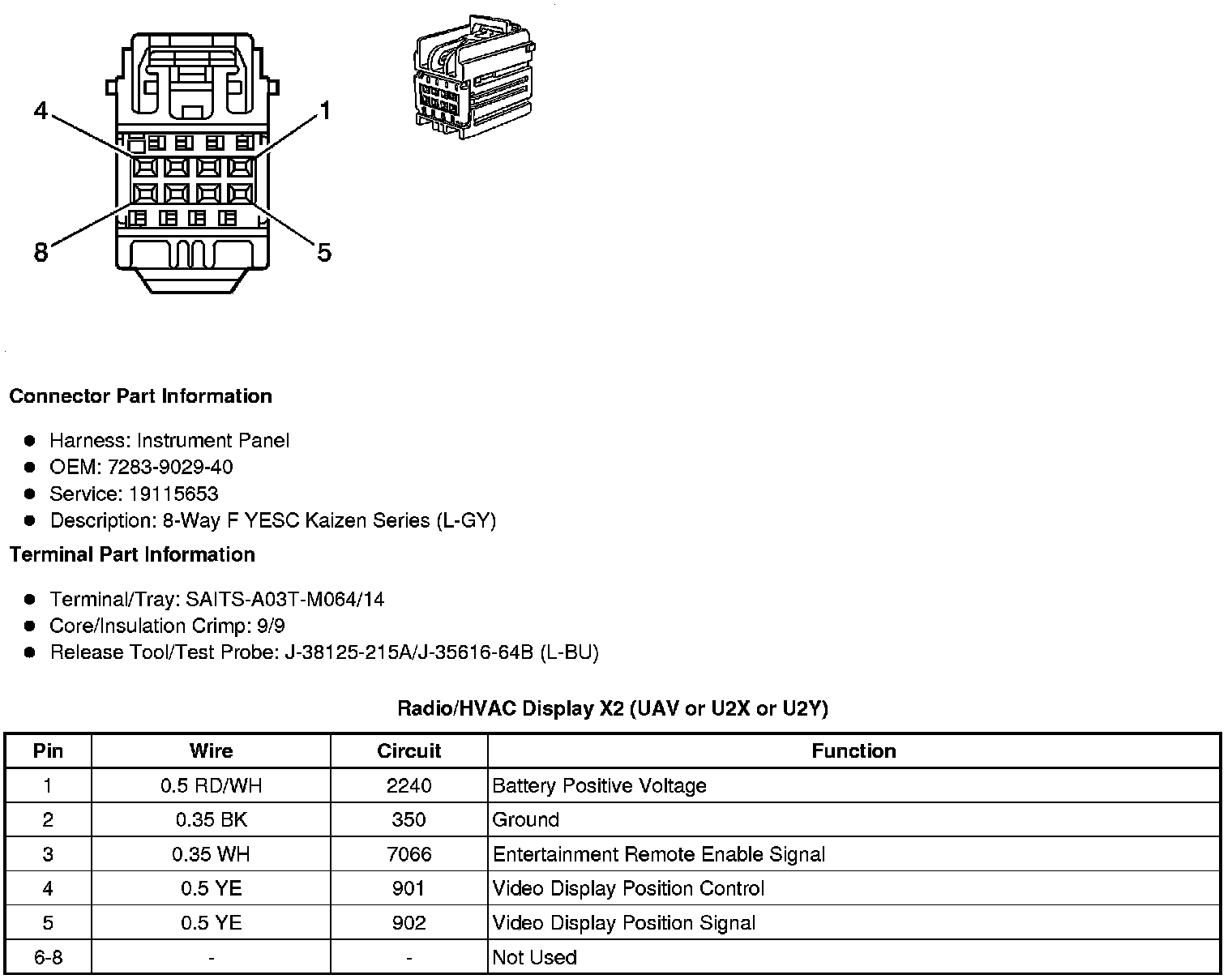

Radio/HVAC Display X2 (UAV or U2X or U2Y)
