Exhaust Manifold
EXHAUST MANIFOLD

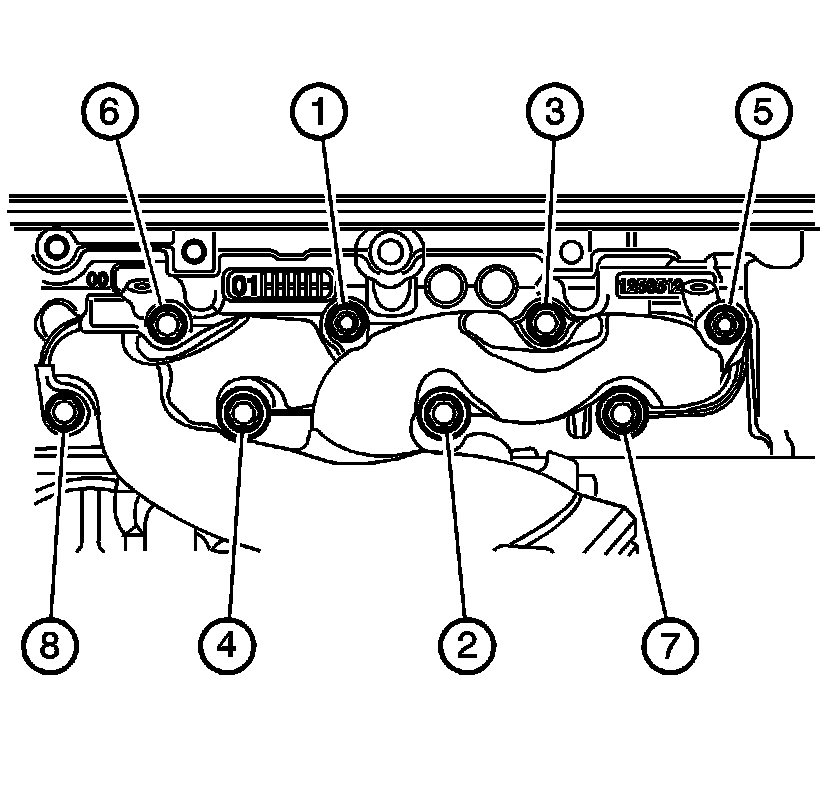

Right:

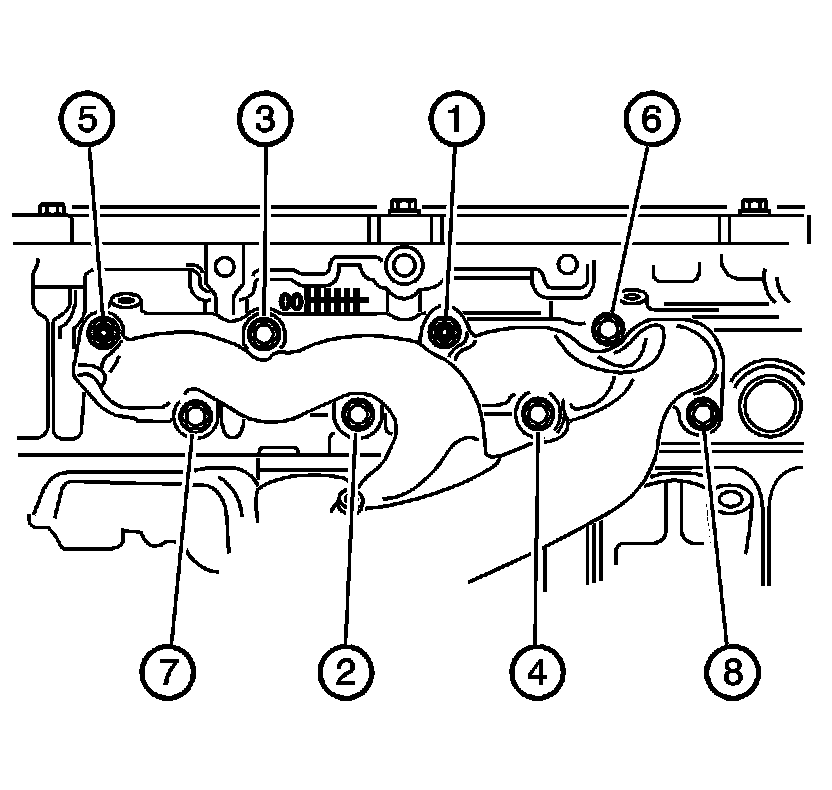

Left:
Exhaust Manifold
Bolt and Nut
25 Nm (18 lb ft)
Stud into Cylinder Head
6 Nm (53 lb in)
