Cadillac
>>
2009
>>
STS RWD V8-4.4L SC
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
Intake Manifold
Intake Manifold

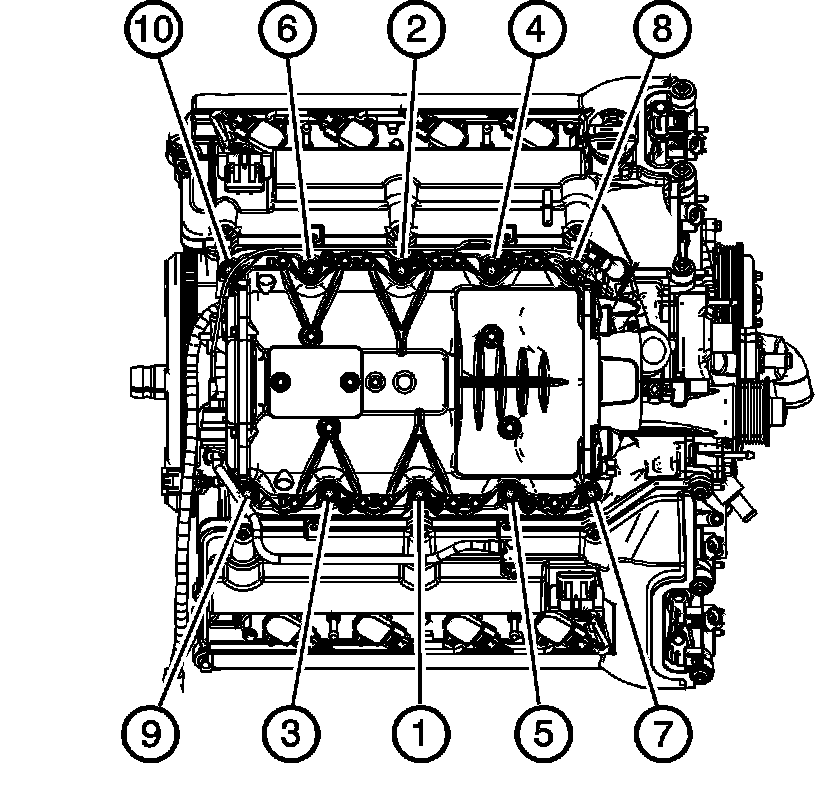

Supercharger
Bolt In Sequence
25 Nm (18 lb ft)
THROTTLE BODY
Throttle Body Bolt
10 Nm (89 lb in)
