Harness Routing Views




Harness Routing Views

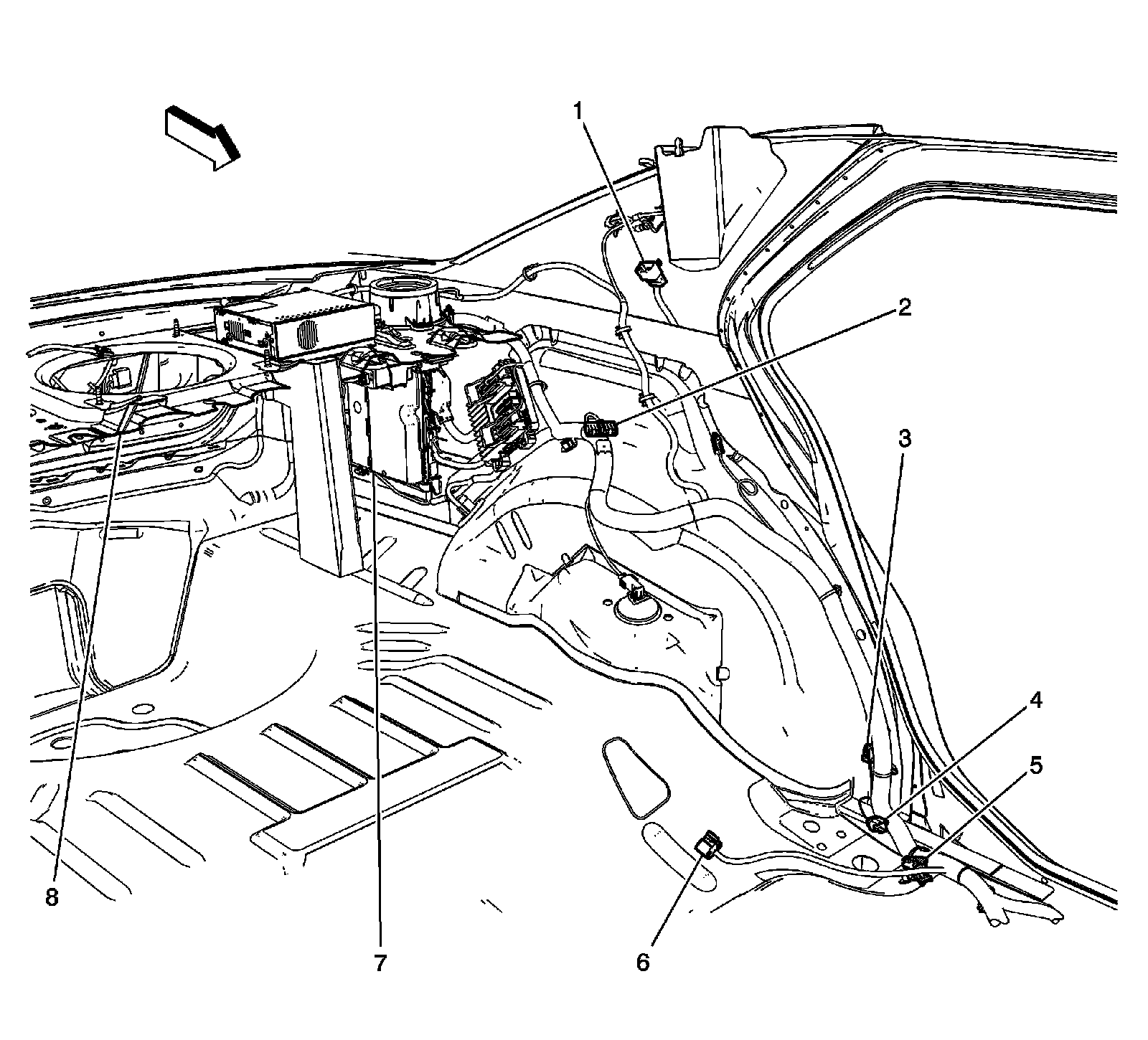

Body Harness - Left Rear Cargo Compartment




1 - X308
2 - JX305
3 - X320
4 - X320
5 - Windshield Wiper Inhibit Relay (WCV)
6 - X302
7 - G402
8 - Rear Shelf
