Home >> Cadillac >> 2009 >> STS AWD V6-3.6L >> Repair and Diagnosis >> Wiper and Washer Systems >> Relays and Modules - Wiper and Washer Systems >> Wiper Relay >> Diagrams

Wiper Relay: Diagrams




Component Connector End Views

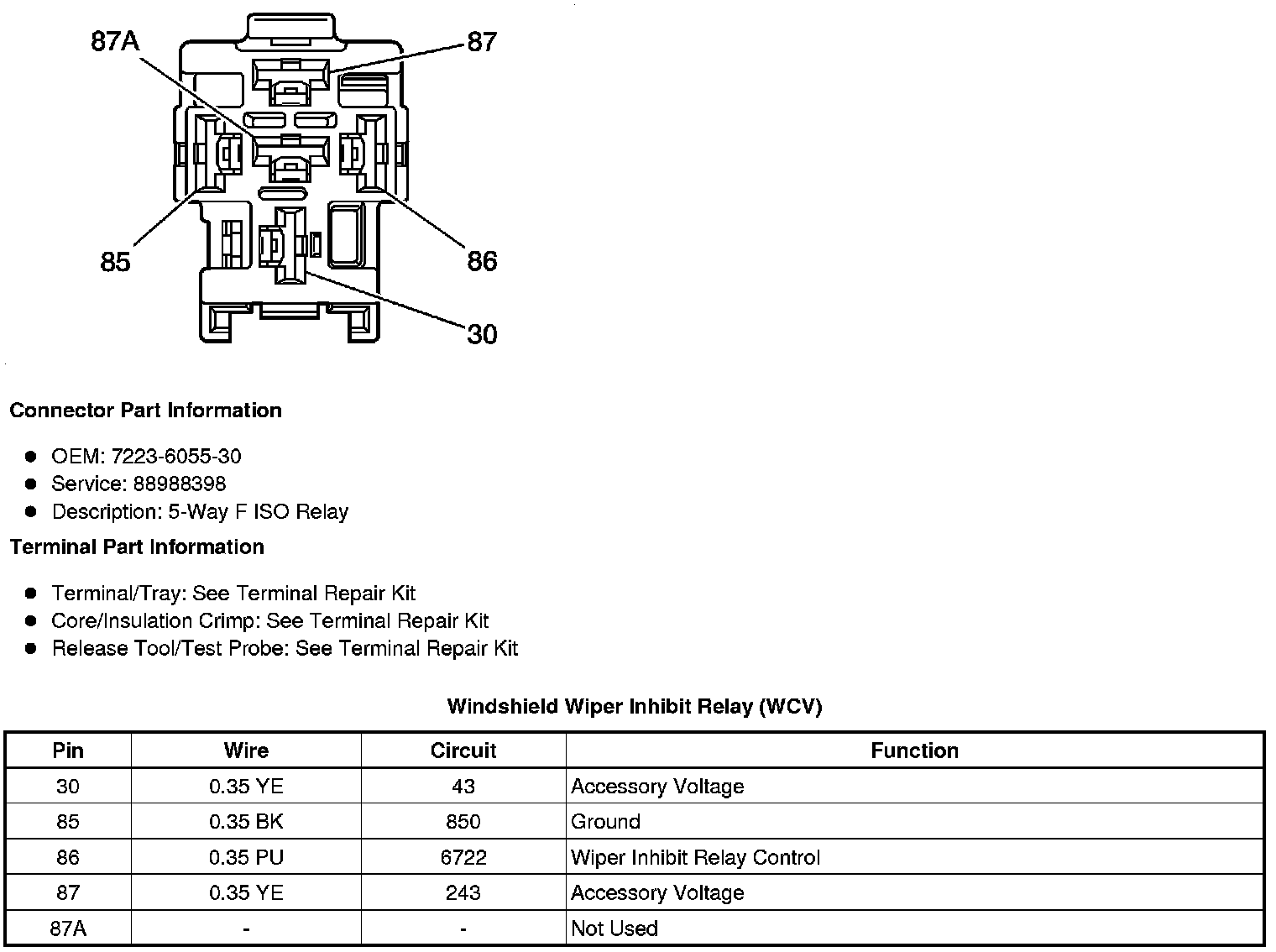

Windshield Wiper Inhibit Relay (WCV)
