Power Steering Fluid Cooler Replacement (Without V92)

Power Steering Fluid Cooler Replacement (LY7 without V92) (3.6L)

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).
2. Remove the front air deflector. Refer to Front Air Deflector Replacement (Front Air Deflector Replacement).
3. Install a drain pan under the vehicle.

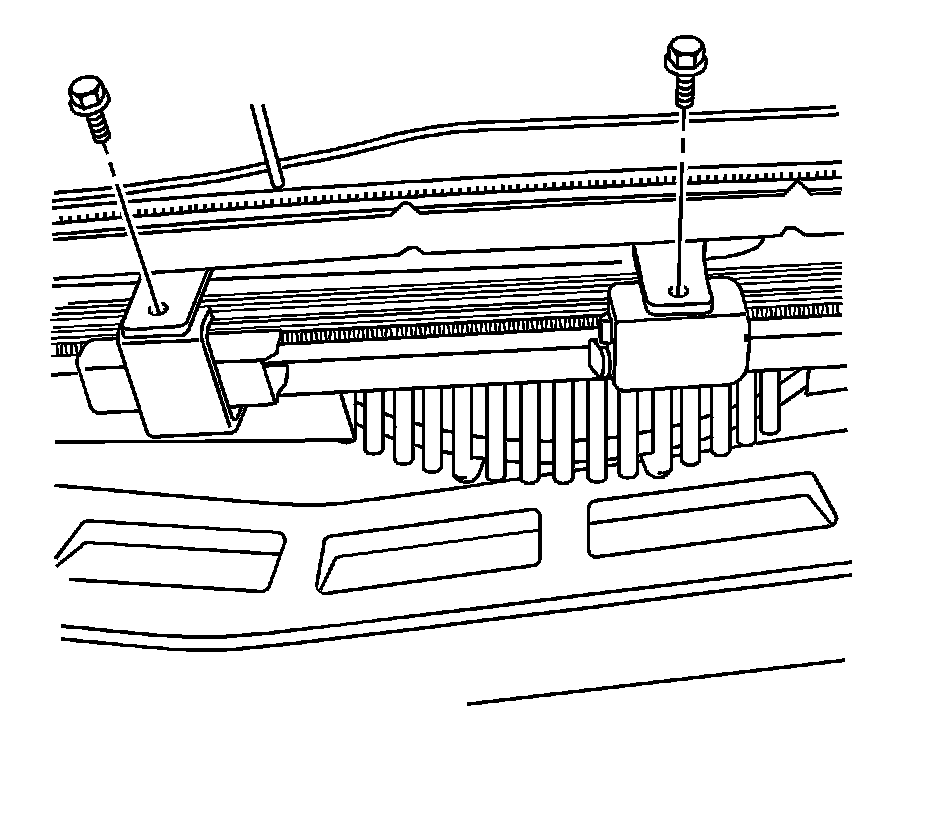

4. Remove the power steering cooler bolts from the power steering cooler brackets.

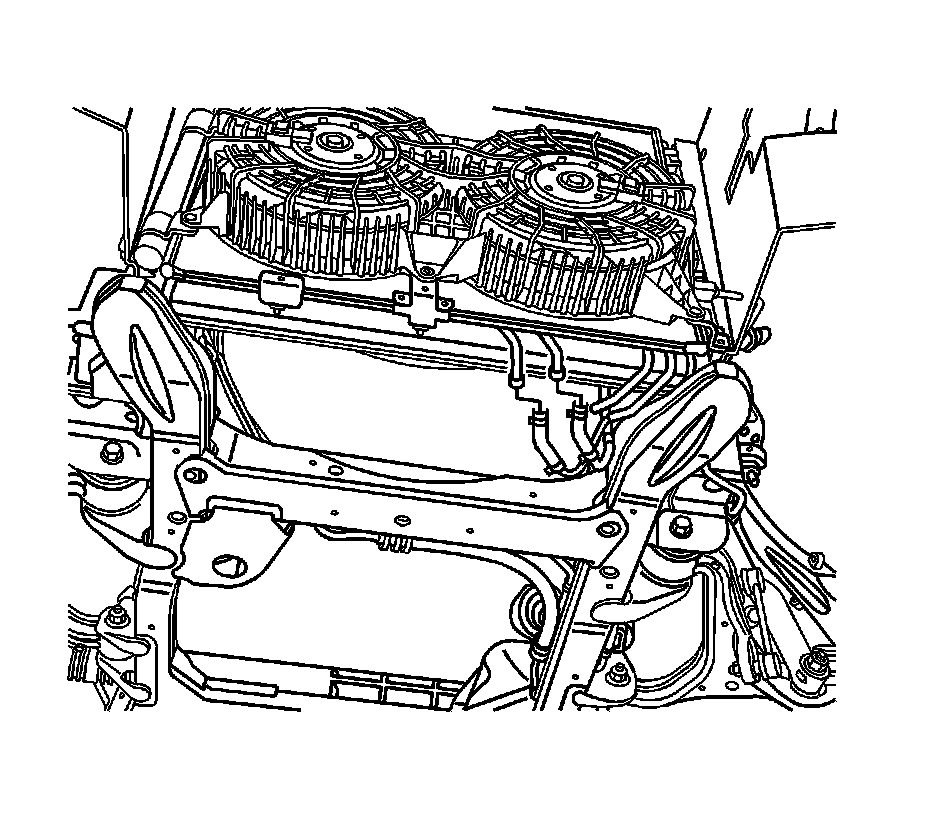

5. Disconnect the power steering lines from the power steering cooler.
6. Remove the power steering cooler from the vehicle.

Installation Procedure




1. Install the power steering cooler to the vehicle.
2. Connect the power steering lines to the power steering cooler.





Caution: Refer to Fastener Caution (Fastener Caution).

3. Install the power steering cooler bolts to the power steering cooler brackets and tighten to 9 Nm (80 lb in).
4. Remove the drain pan from under the vehicle.
5. Install the front air deflector. Refer to Front Air Deflector Replacement (Front Air Deflector Replacement).
6. Lower the vehicle.
7. Bleed the power steering system. Refer to Power Steering System Bleeding (Service and Repair).
