X211

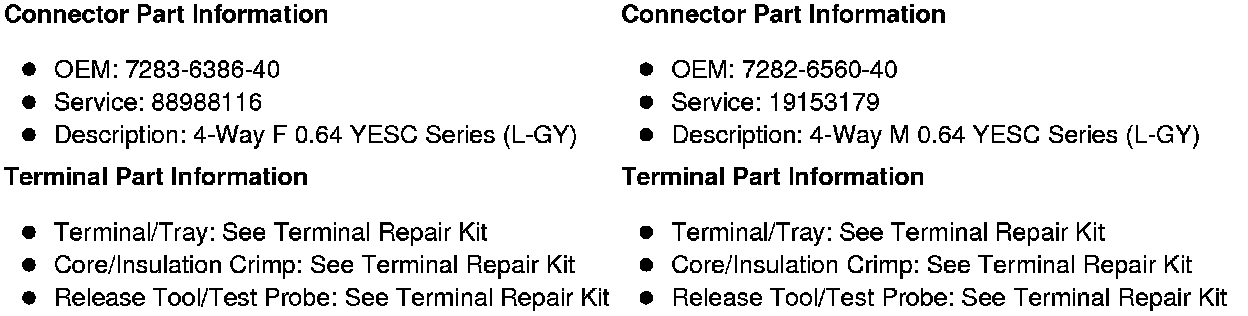

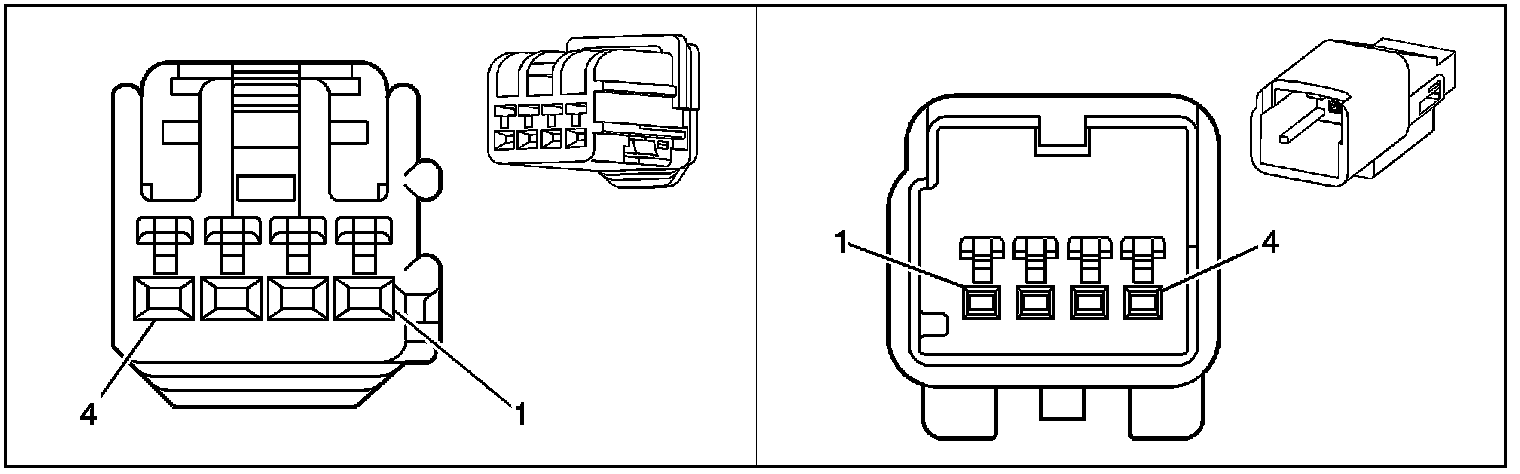

Inline Harness Connector End Views

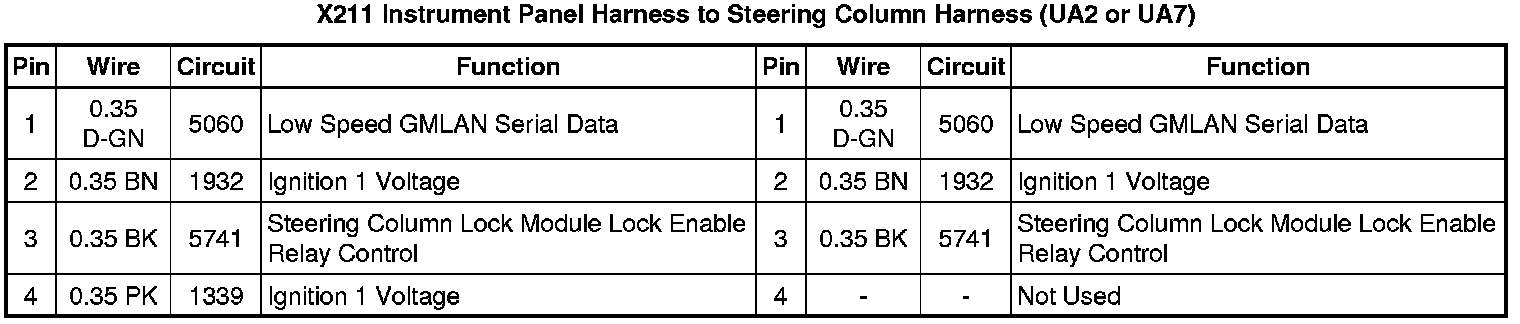

X211 Instrument Panel Harness to Steering Column Harness (UA2 or UA7)
