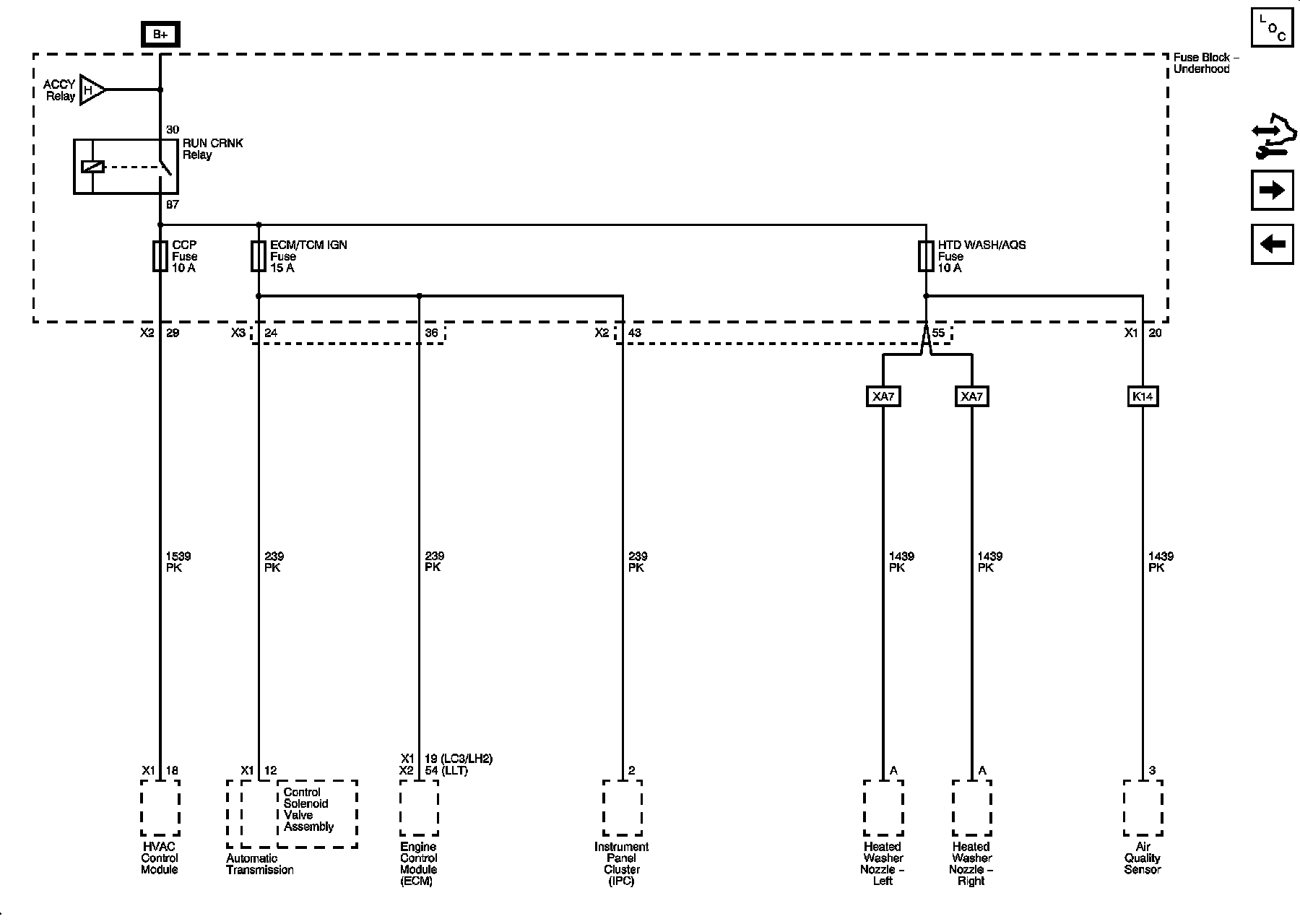

Power Distribution Diagram 11




Power Distribution Schematics

ABS IGN, CCP, ECM/TCM, and HTD WASH/AQS Fuses
