Home
>>
Cadillac
>>
2009
>>
STS AWD V6-3.6L
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>
6L50/6L80/6L90 - Automatic Transmission
>>

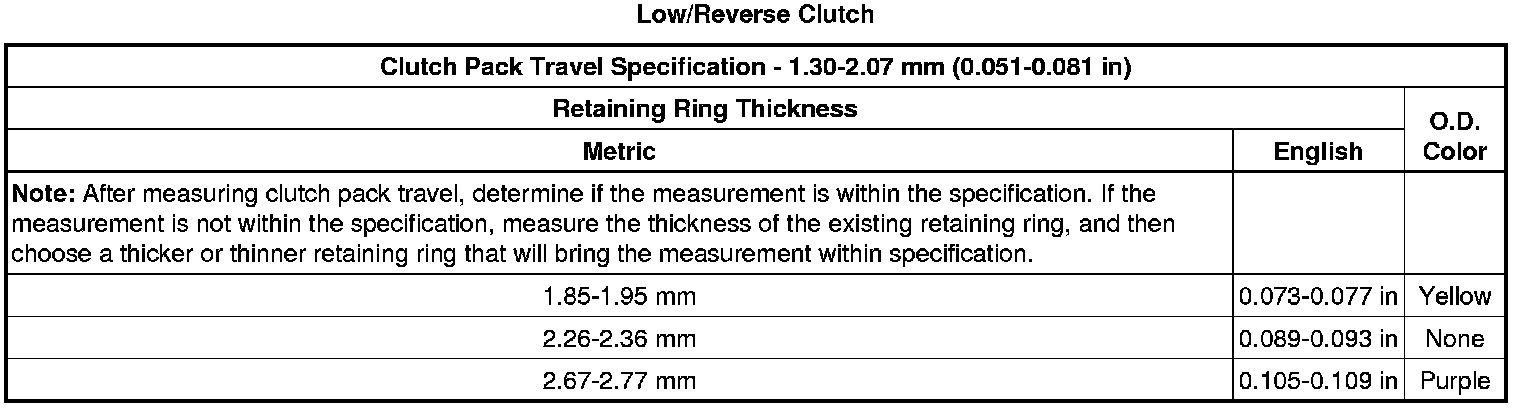

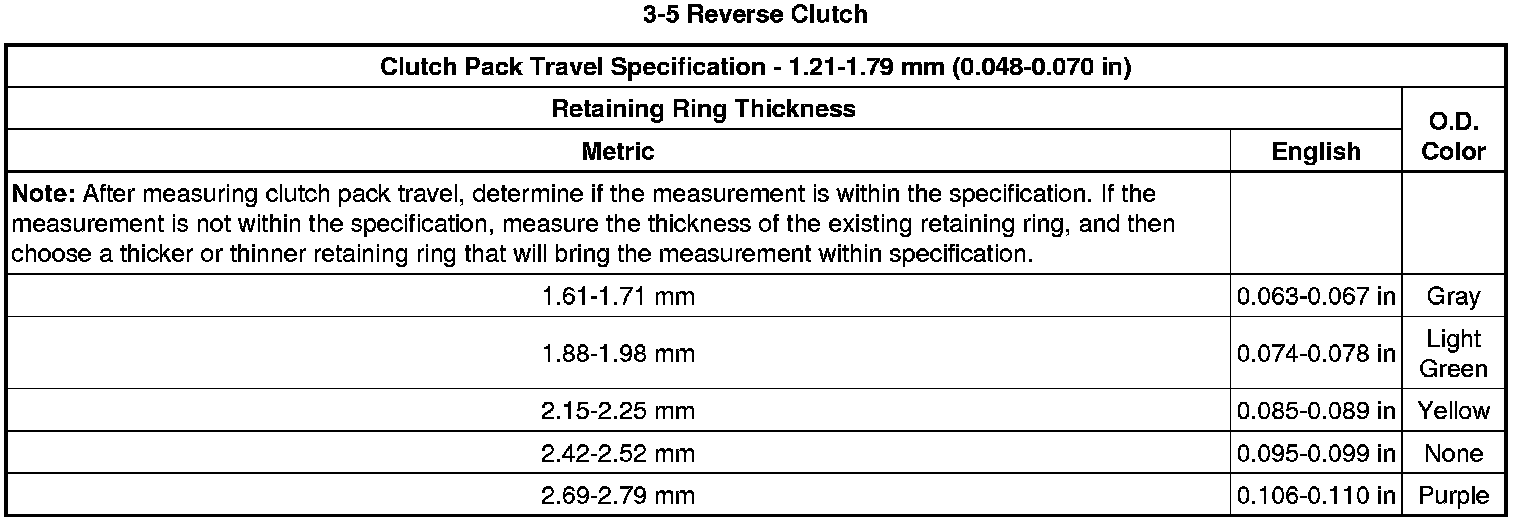

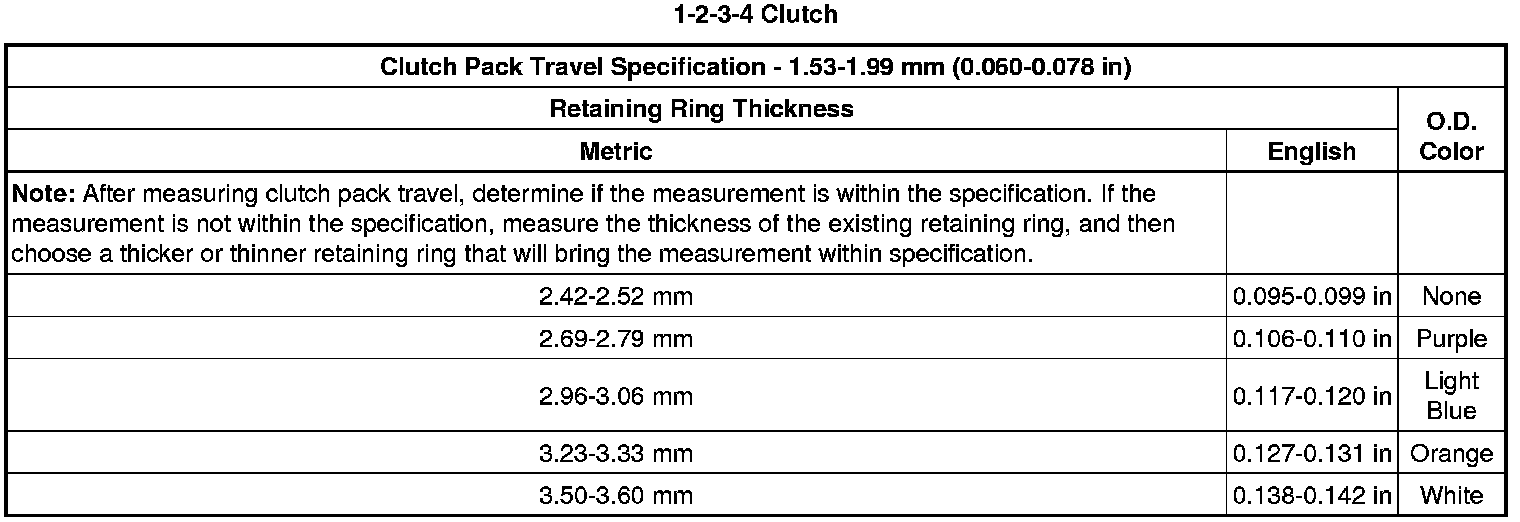

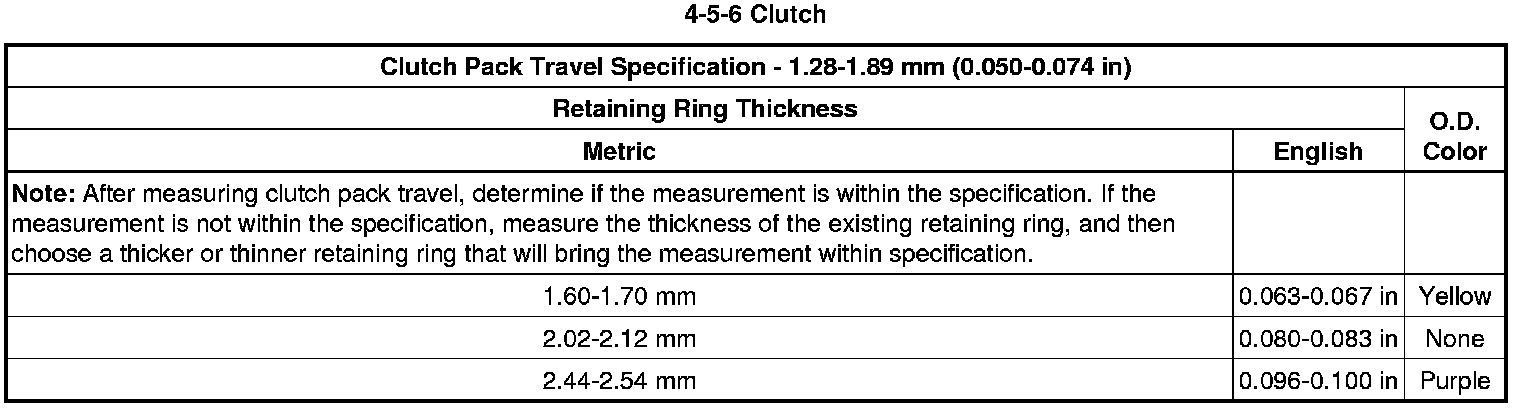

Clutch Backing Plate Retaining Ring Specifications (6L80)
Clutch Backing Plate Retaining Ring Specifications (6L80)
Clutch Backing Plate Retaining Ring Specifications (6L80)
