Home >> Cadillac >> 2009 >> STS AWD V6-3.6L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Steering and Suspension >> Sensors and Switches - Steering >> Tilt Wheel Sensor >> Diagrams

Tilt Wheel Sensor: Diagrams




Component Connector End Views

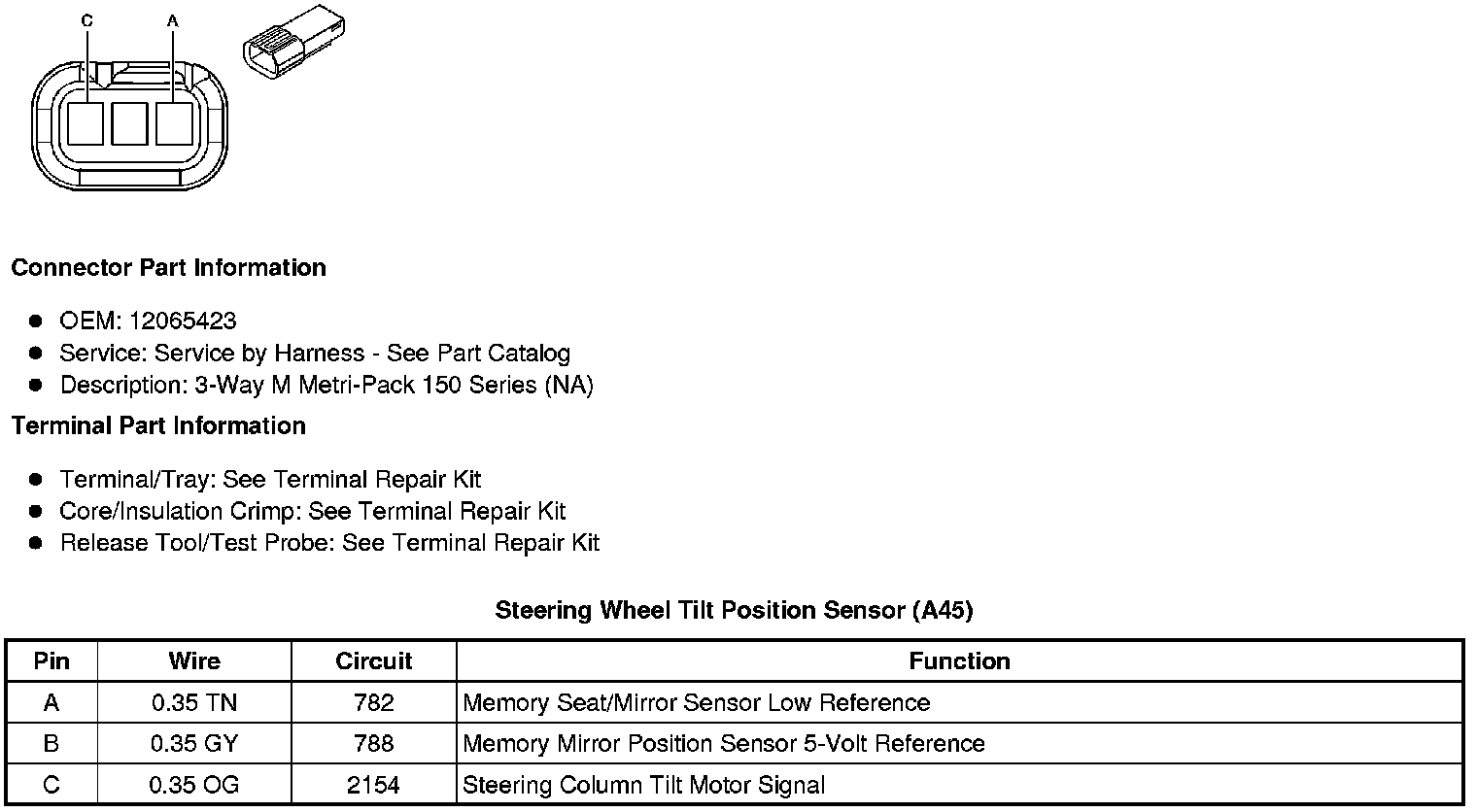

Steering Wheel Tilt Position Sensor (A45)
