Telescoping Wheel Position Sensor: Diagrams




Component Connector End Views

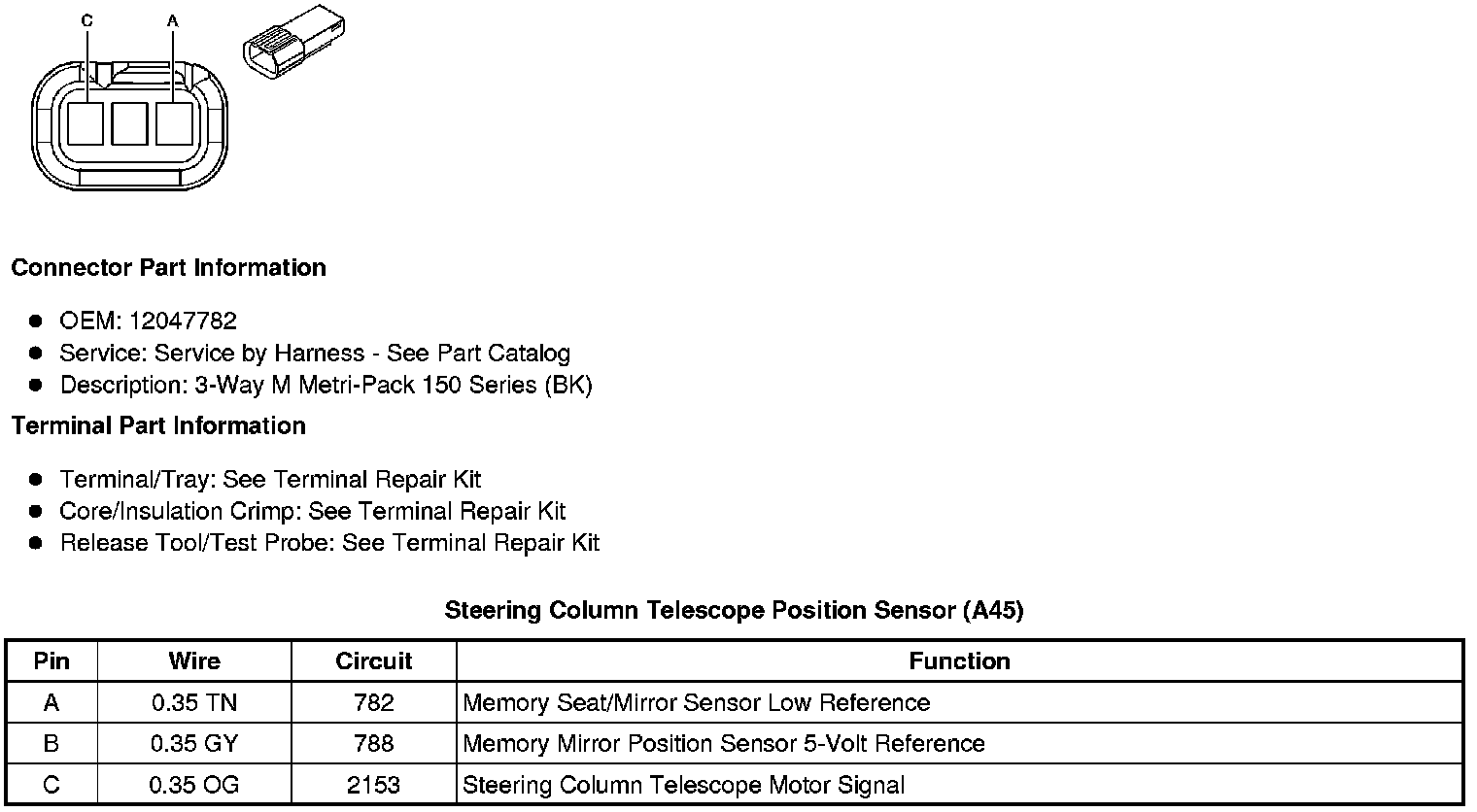

Steering Column Telescope Position Sensor (A45)
