Seat Belt Buckle: Service and Repair

Rear Seat Buckle Side Belt Replacement

Removal Procedure

Warning: Refer to SIR Warning (SIR Warning).

1. Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement (Rear Seat Cushion Replacement).

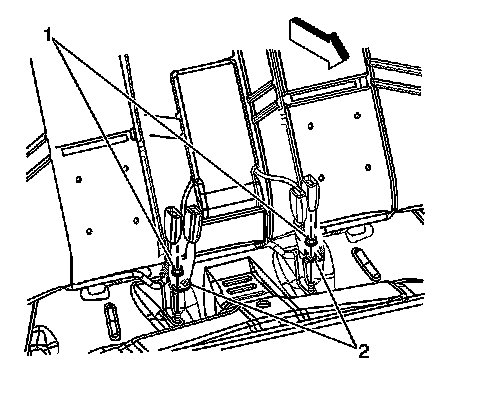

2. Remove the seat belt buckle fasteners (1) and remove the seat belt buckles (2).
3. Disconnect the wiring connection to the left and right seat belt buckles.
4. Remove the rear seat belt buckles (2) from the floor pan.

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the rear seat belt buckles (2) to the floor pan and tighten to 30 Nm (22 lb ft).
2. Connect the left and right rear seat belt buckle electrical connectors.
3. Install the rear seat cushion. Refer to Rear Seat Cushion Replacement (Rear Seat Cushion Replacement).
