Headlamp Dimmer Relay: Diagrams

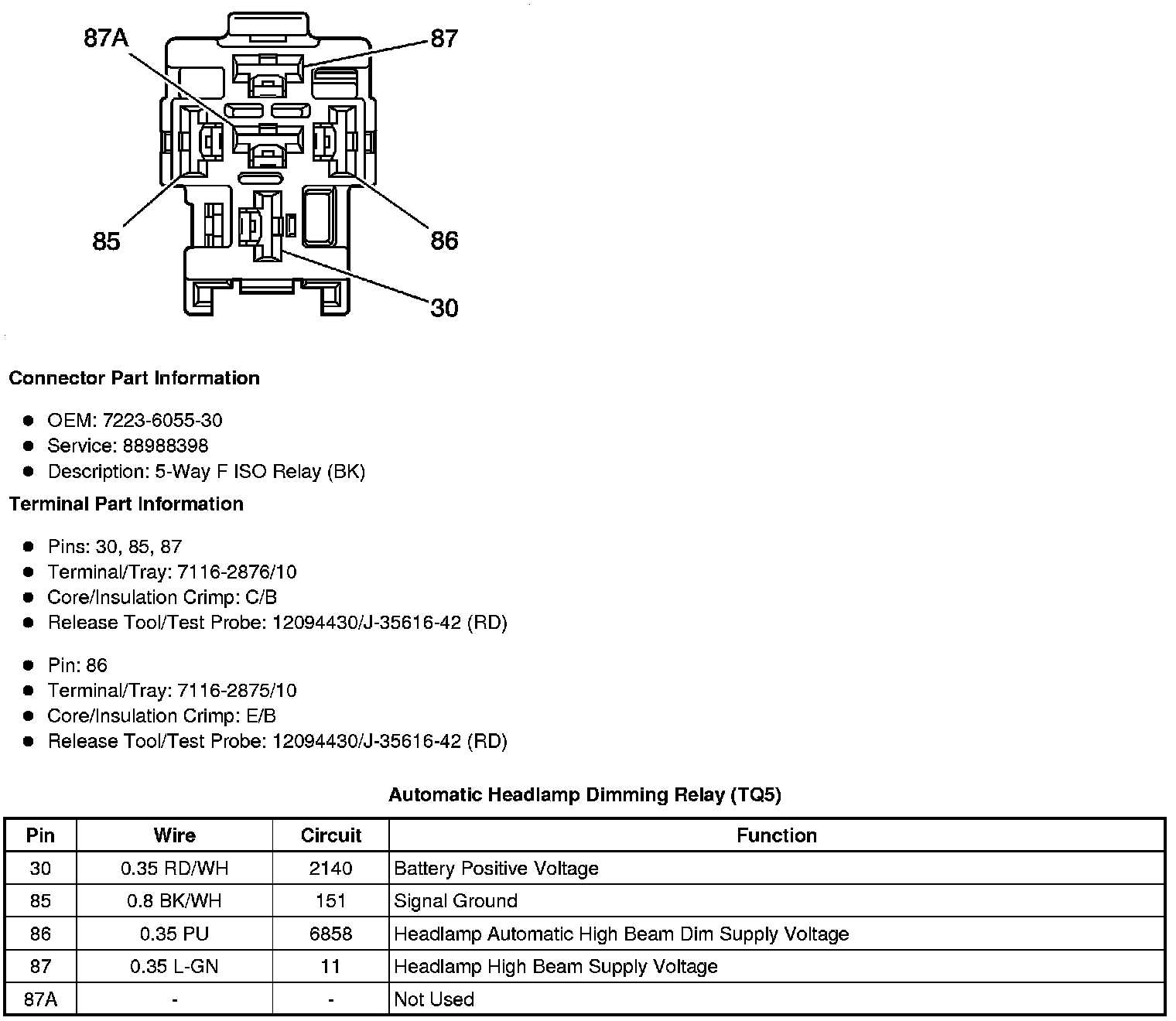

Component Connector End Views

Automatic Headlamp Dimming Relay (TQ5)
