Instrument Panel Outer Air Outlet Deflector Replacement

Instrument Panel Outer Air Outlet Deflector Replacement

Removal Procedure

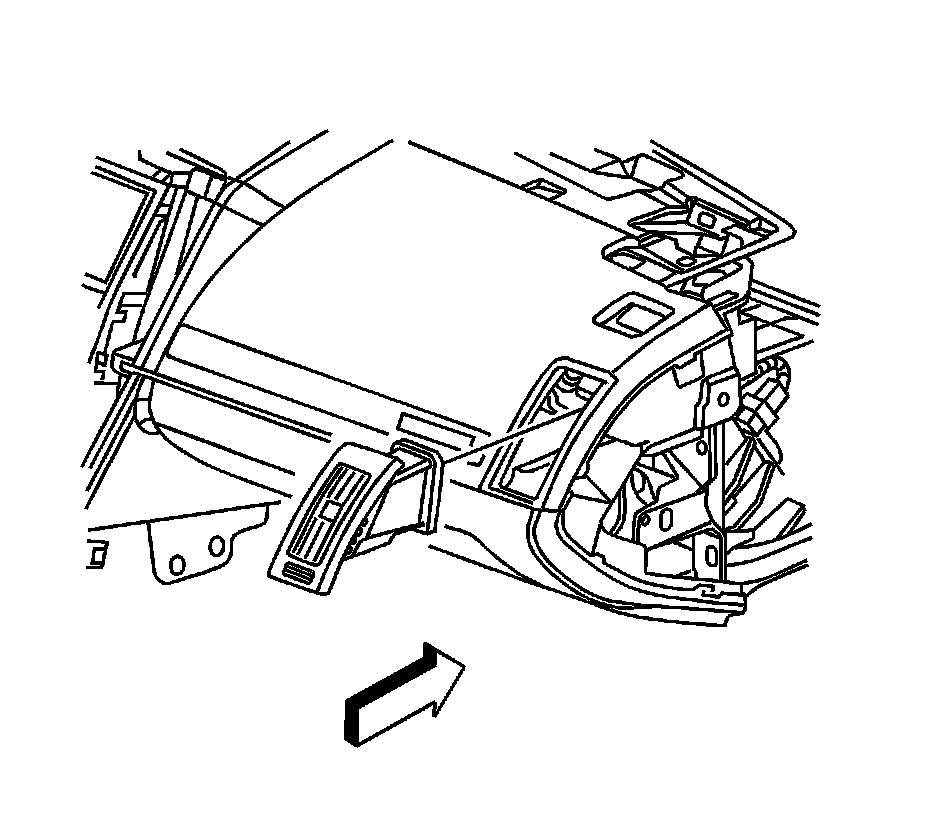

1. Use a blunt trim tool in order to release the tabs securing the outlet air deflector to the instrument panel (I/P).
2. Pull out on the deflector to remove from the I/P.

Installation Procedure




1. Locate the vent to the I/P.
2. Push the outlet vent securing the outlet air deflector to the I/P.
