Temperature Valve Actuator Replacement - Right Side

Temperature Valve Actuator Replacement - Right Side

Removal Procedure

1. Remove the air inlet assembly. Refer to Air Inlet Assembly Replacement (Air Inlet Assembly Replacement).

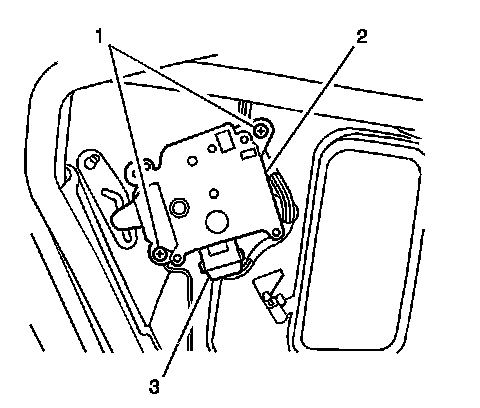

2. Remove the right air temperature actuator screws (1).

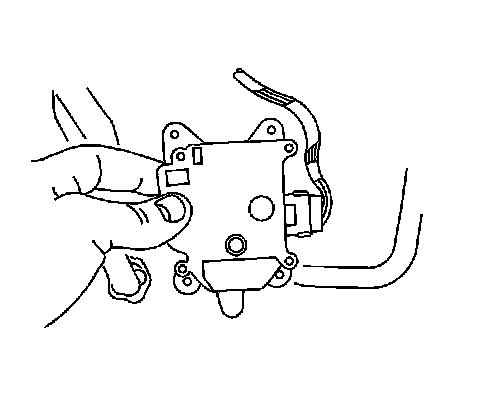

3. Remove the right air temperature actuator.
4. Disconnect the right air temperature actuator electrical connector.

Installation Procedure

1. Connect the right air temperature actuator electrical connector.




2. Install the right air temperature actuator.

Caution: Refer to Fastener Caution (Fastener Caution).

3. Install the right air temperature actuator screws (1) and tighten to 1 Nm (9 lb in).




4. Install the air inlet assembly. Refer to Air Inlet Assembly Replacement (Air Inlet Assembly Replacement).
