Home >> Cadillac >> 2009 >> STS AWD V6-3.6L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Thermostat Housing >> Service and Repair >> Engine Coolant Thermostat Housing Replacement >> SIDI VIN V

SIDI VIN V

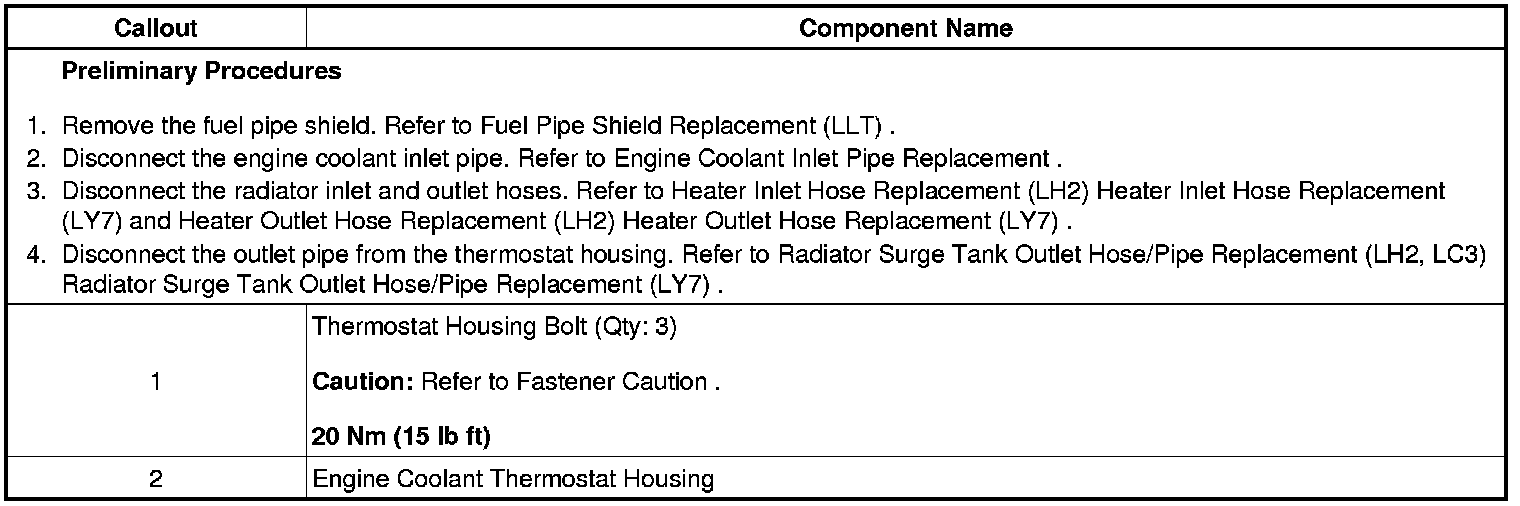

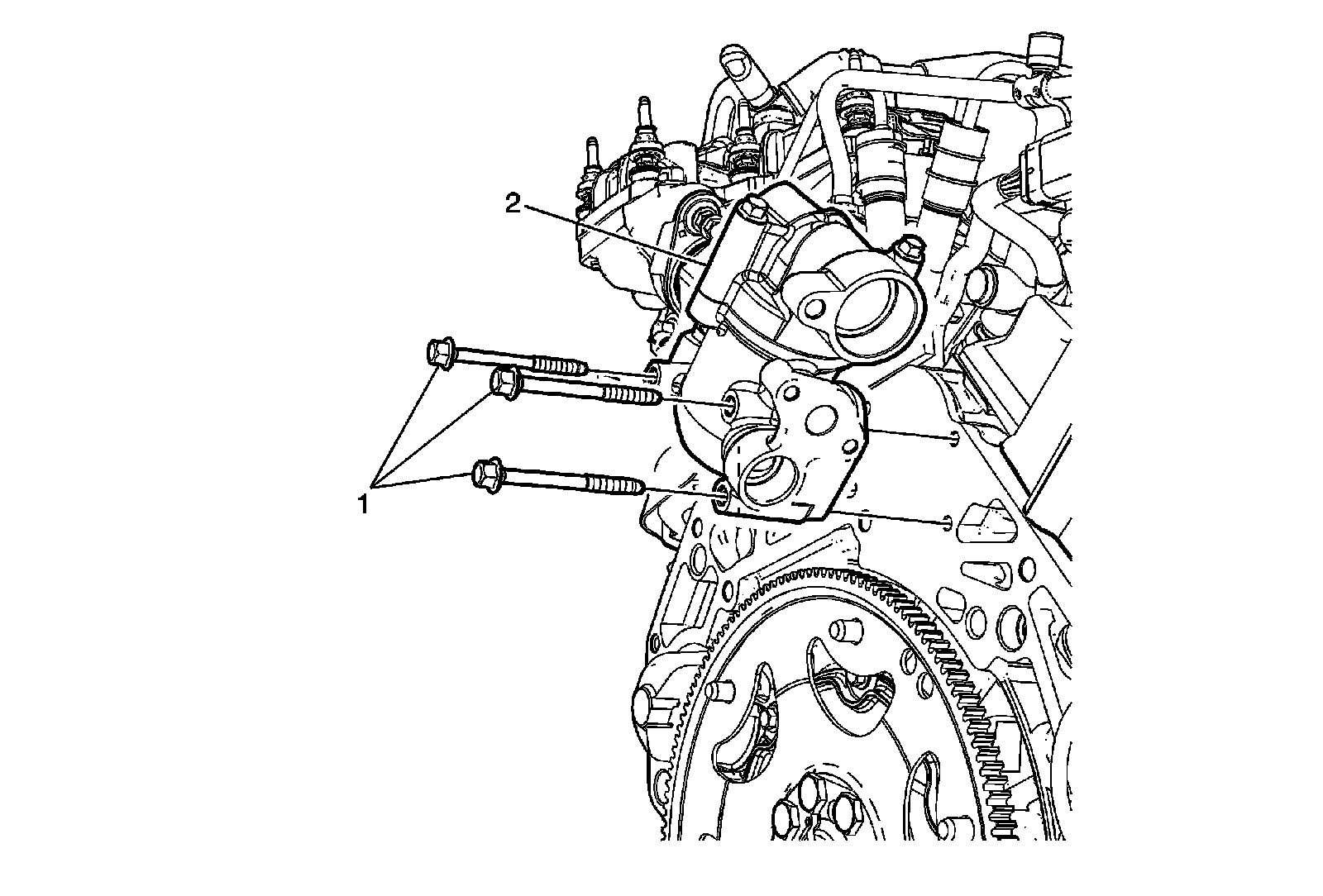

Engine Coolant Thermostat Housing Replacement (LF1/LLT) (3.6L)
