Engine Coolant Fan Replacement

Engine Coolant Fan Replacement (LC3, LY7) (4.4L SC, 3.6L)

Removal Procedure

Warning

An electric fan under the hood can start up even when the engine is not running and can injure you. Keep hands, clothing and tools away from any underhood electric fan.

Warning

To help avoid personal injury or damage to the vehicle, a bent, cracked, or damaged fan blade or housing should always be replaced.

1. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement ().




2. Disengage the surge tank inlet hose from the retaining features on the cooling fan shroud and reposition aside.
3. Remove the upper retaining bolts that secure the cooling fan shroud to the radiator.
4. Remove the LH lower retaining bolt that secures the cooling fan shroud to the radiator.
5. Disconnect the cooling fan electrical connectors.




6. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).

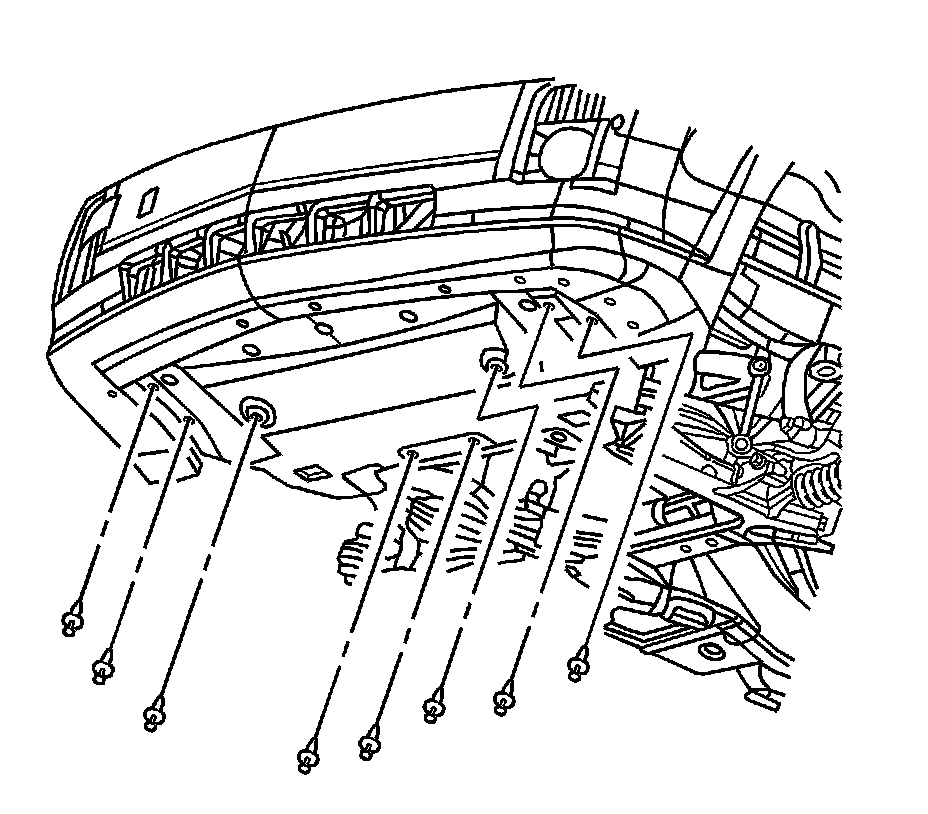

7. Remove the front air deflector retainers.
8. Remove the front air deflector.

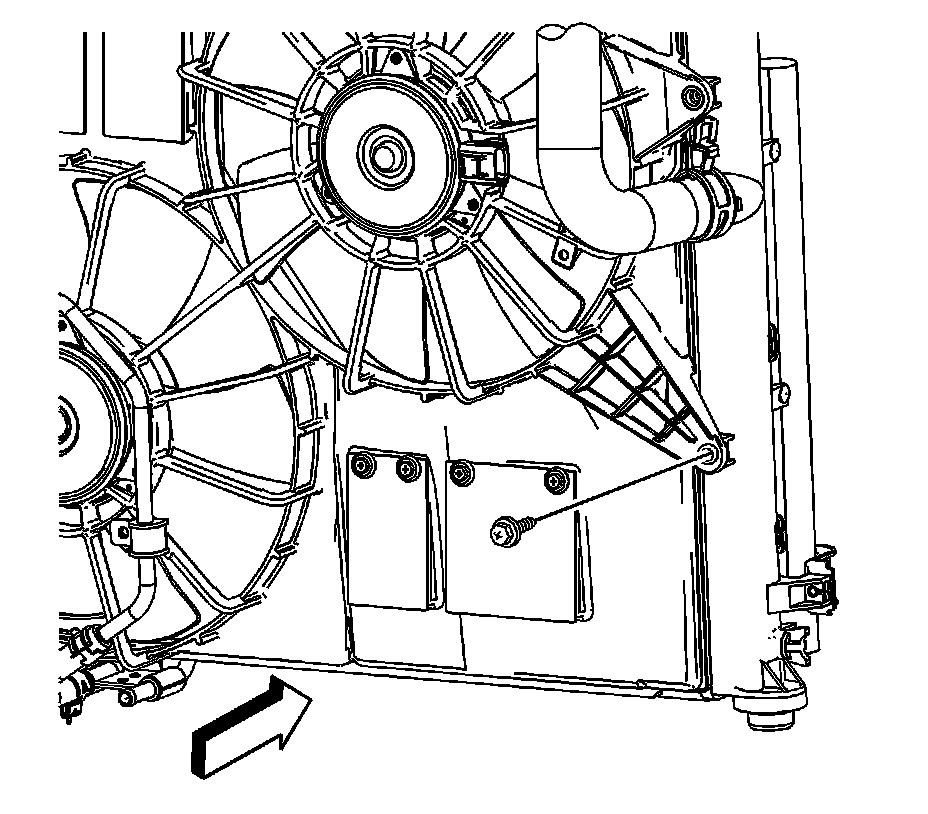

9. Remove the RH lower retaining bolt that secures the cooling fan shroud to the radiator.




10. Disconnect and reposition the engine wiring harness from the engine frame and reposition.

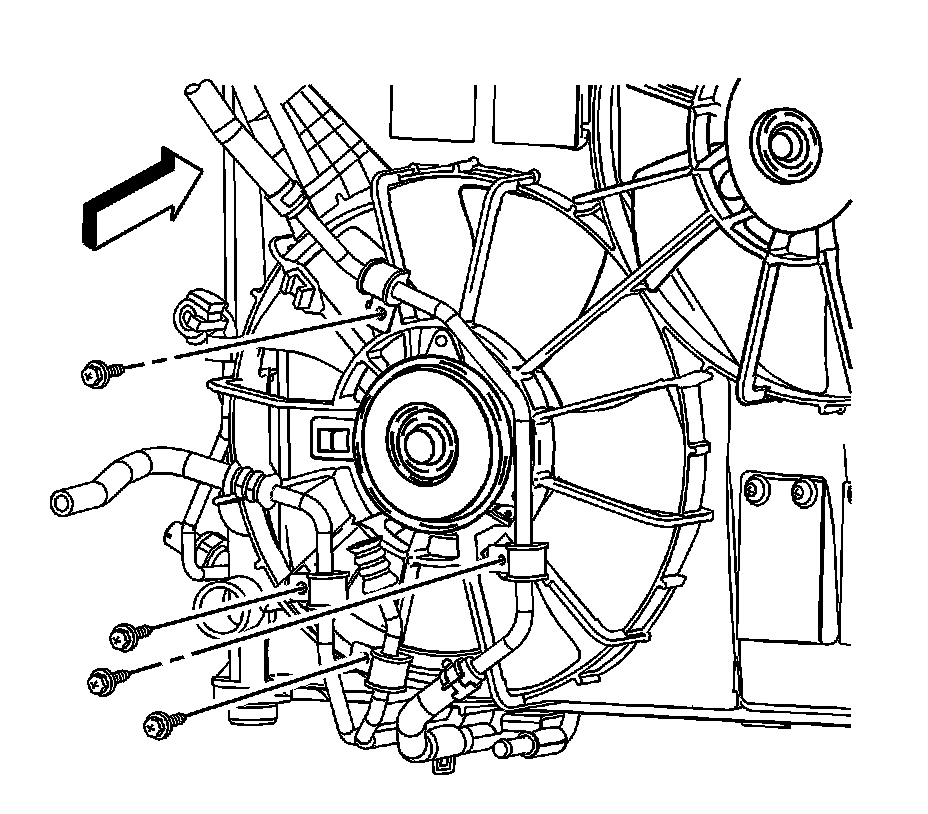

11. Remove the retaining bolts that secure the power steering line to the cooling fan shroud.
12. Remove the retaining bolts that secure the transmission oil cooler lines to the cooling fan shroud.
13. Lower the vehicle.
14. Remove the cooling fan assembly.

Installation Procedure

1. Install the cooling fan assembly.




2. Raise the vehicle.

Caution: Refer to Fastener Caution (Fastener Caution).

3. Install the retaining bolts that secure the transmission oil cooler lines to the cooling fan shroud and tighten to 5.4 Nm (48 lb in).
4. Install the retaining bolts that secure the power steering lines to the cooling fan shroud and tighten to 5.4 Nm (48 lb in).
5. Connect the engine wiring harness to the engine frame.




6. Install the RH lower retaining bolt that secures the cooling fan shroud to the radiator and tighten to 5.4 Nm (48 lb in).




7. Install the front air deflector.
8. Install the front air deflector retainers.
9. Lower the vehicle.
10. Connect the cooling fan electrical connectors.
11. Install the upper retaining bolts that secure the cooling fan shroud to the radiator and tighten to 5.4 Nm (48 lb in).




12. Install the left side lower retaining bolt that secures the cooling fan shroud to the radiator and tighten to 5.4 Nm (48 lb in).
13. Engage the surge tank inlet hose to the retaining features on the cooling fan shroud.
14. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement ().
