X309

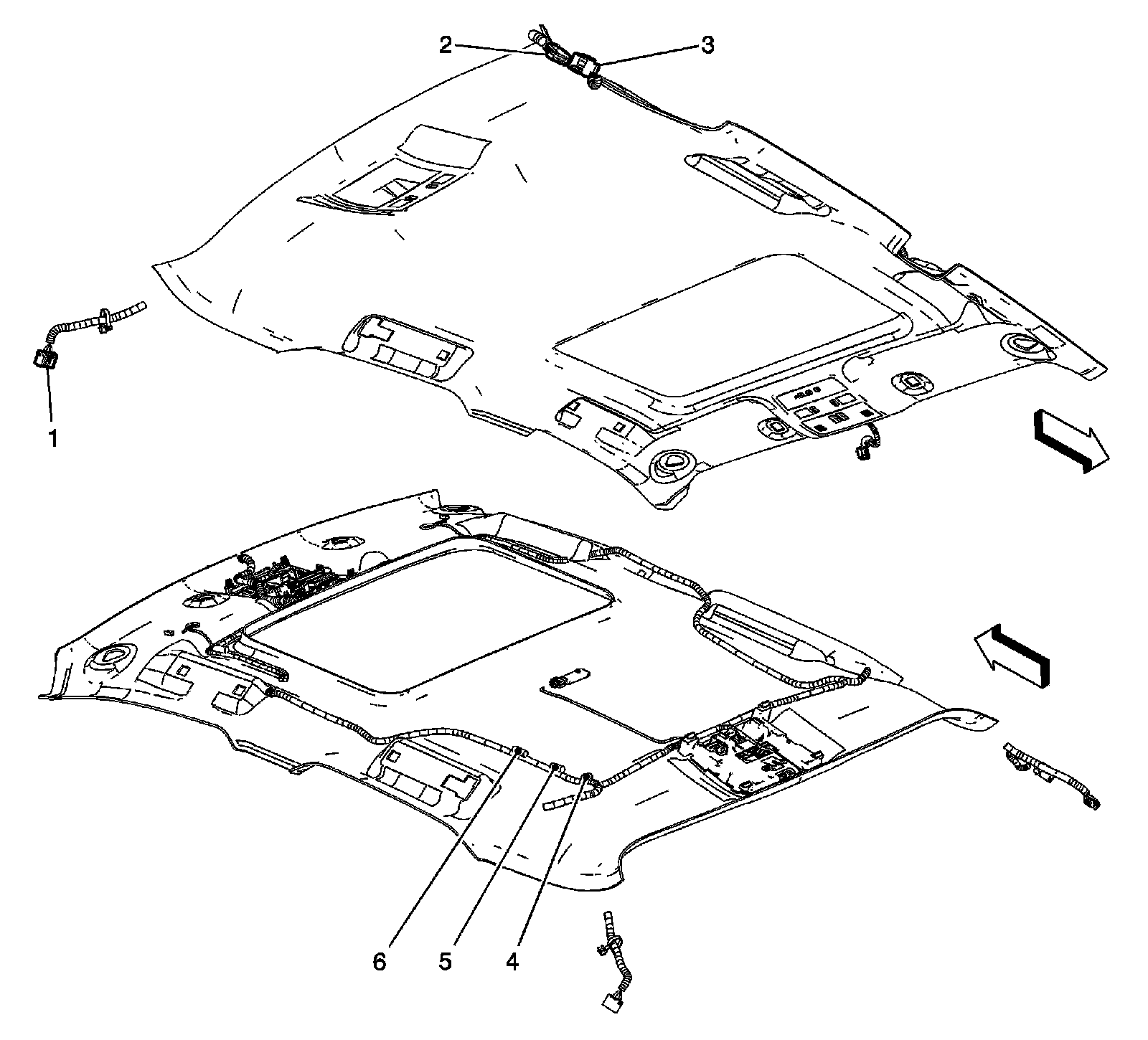

Harness Routing Views

Headliner Harness (CF5)




1 - X308
2 - X305
3 - X309
4 - J308
5 - X309
6 - J310
