Seat Belt Retractor




Component Connector End Views

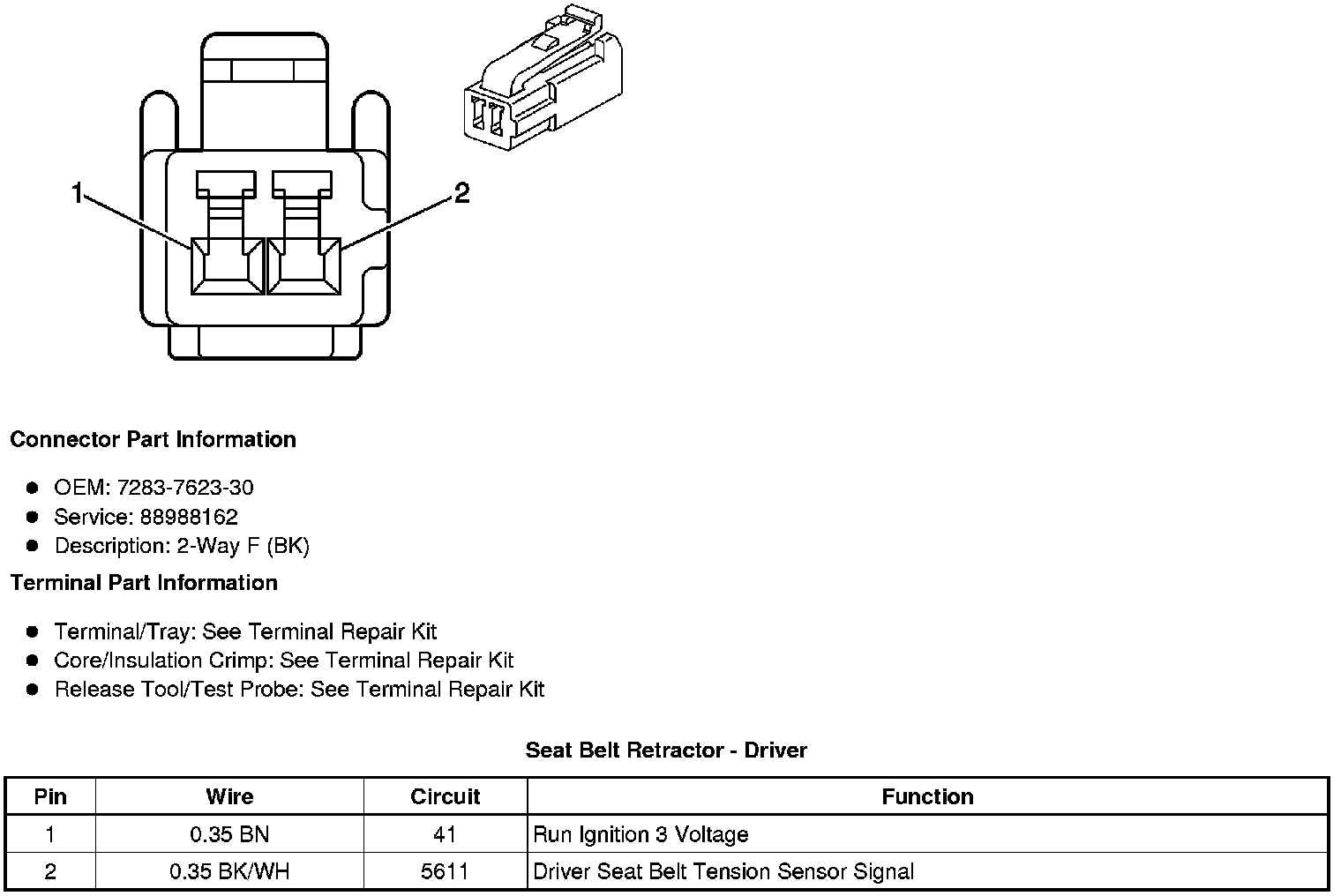

Seat Belt Retractor - Driver






Seat Belt Retractor - Passenger
