Radiator Cooling Fan Resistor

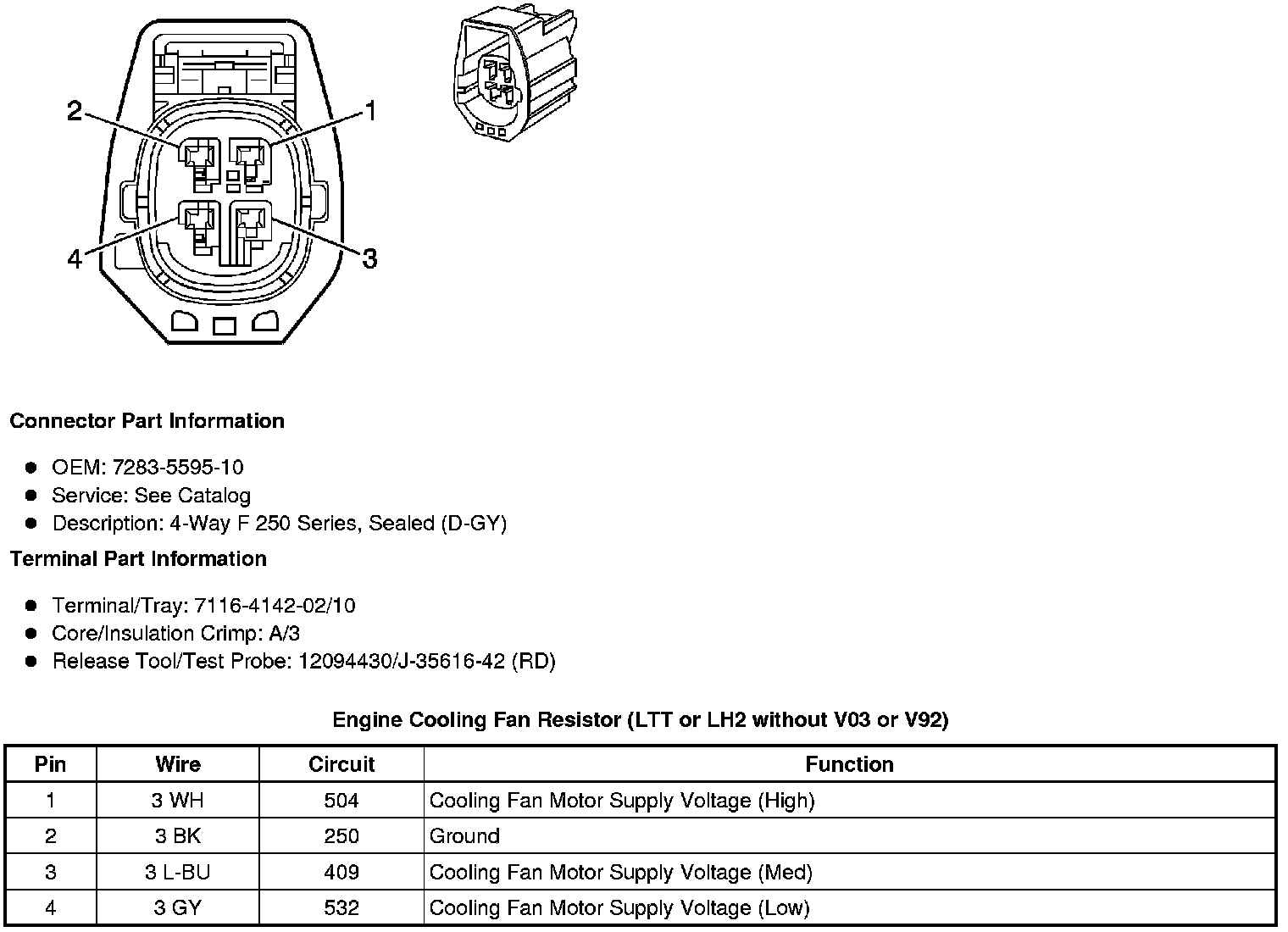

Component Connector End Views
Engine Cooling Fan Resistor (LTT or LH2 without V03 or V92)
