Headlamp Washer Pump
Headlamp Washer Pump

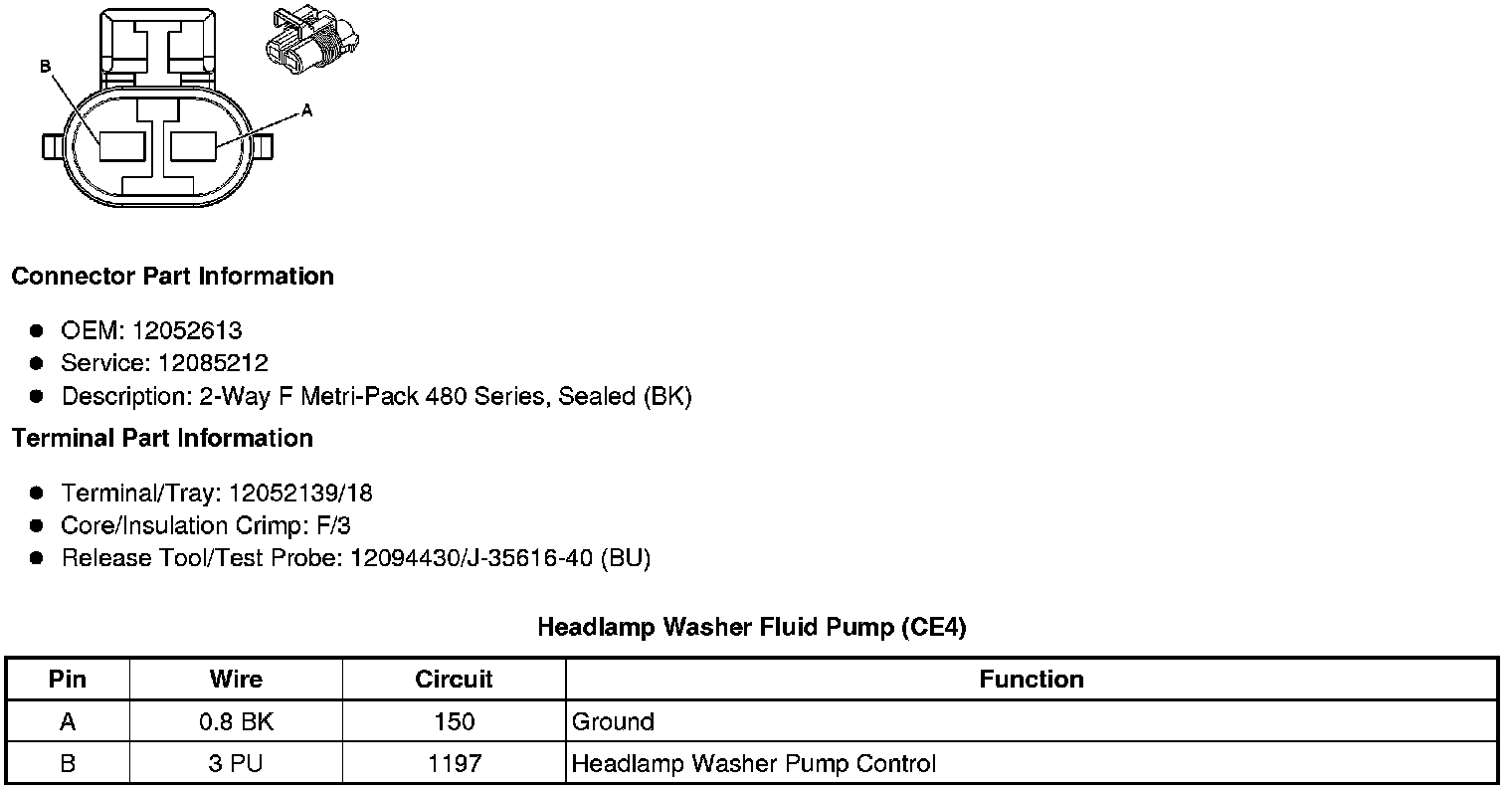

Component Connector End Views
Headlamp Washer Fluid Pump (CE4)
