Home >> Cadillac >> 2009 >> STS AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Doors >> System Diagram

System Diagram




Component Connector End Views

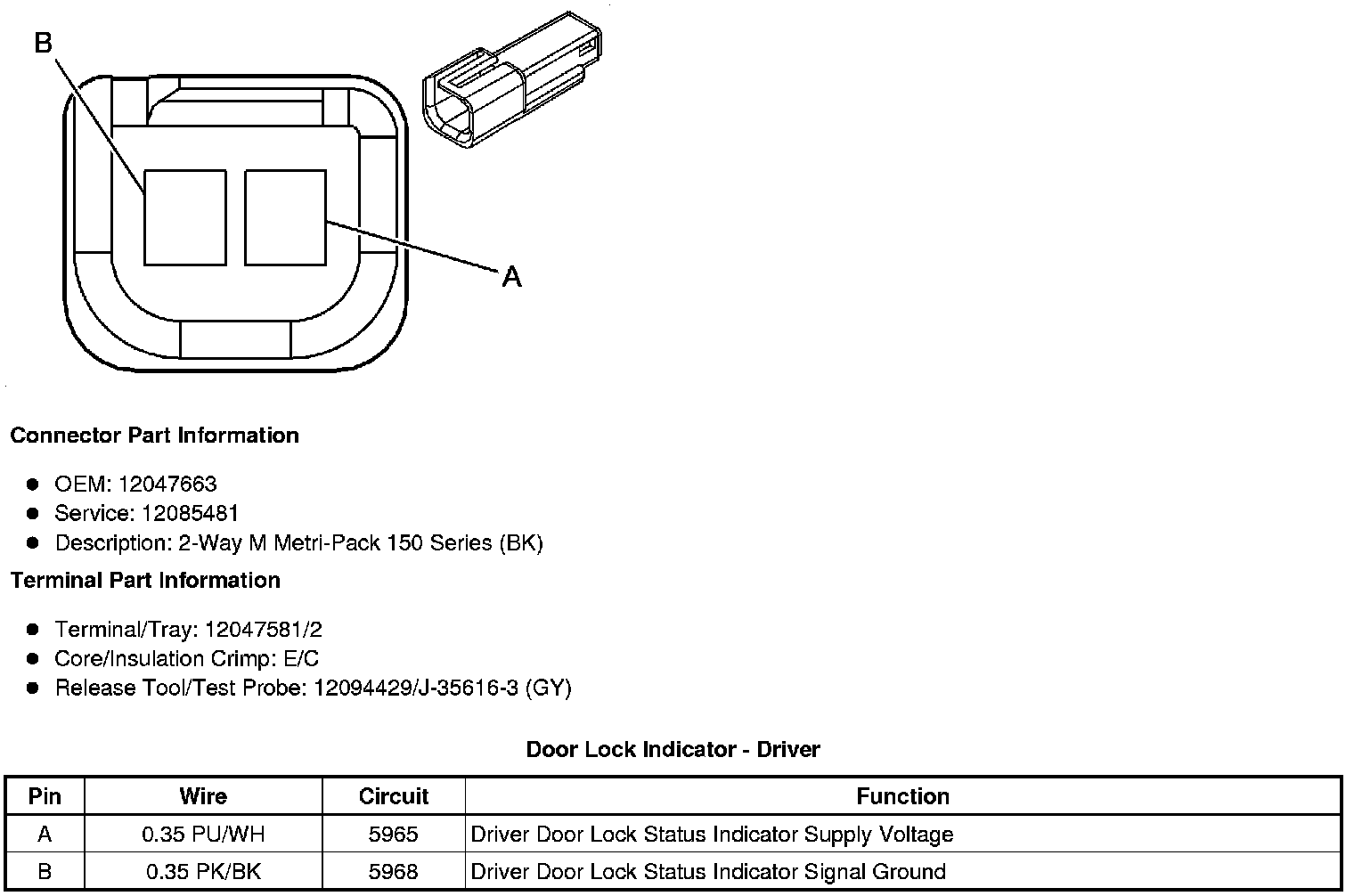

Door Lock Indicator - Driver

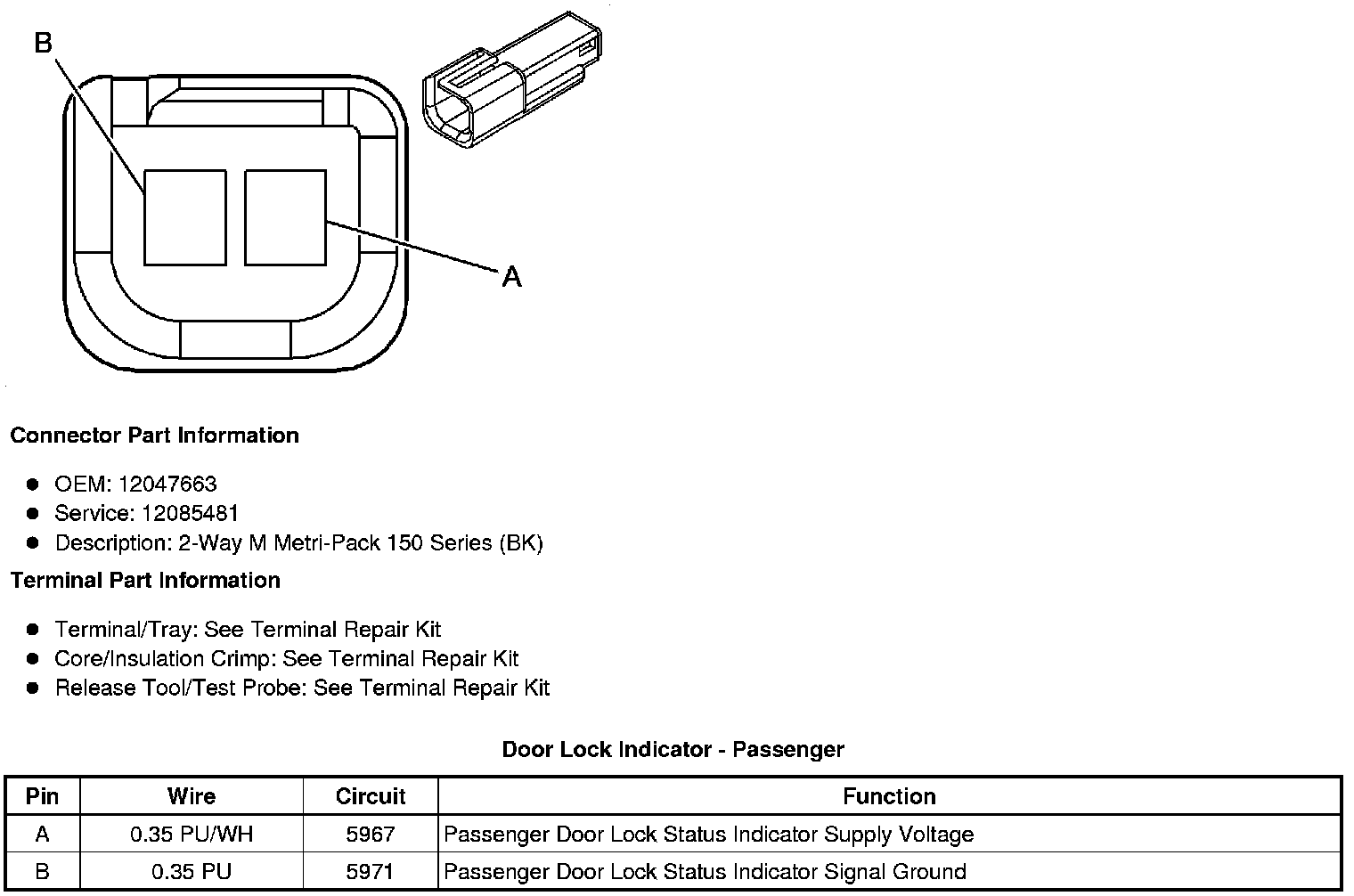

Door Lock Indicator - Passenger
