Cigarette Lighter




Component Connector End Views

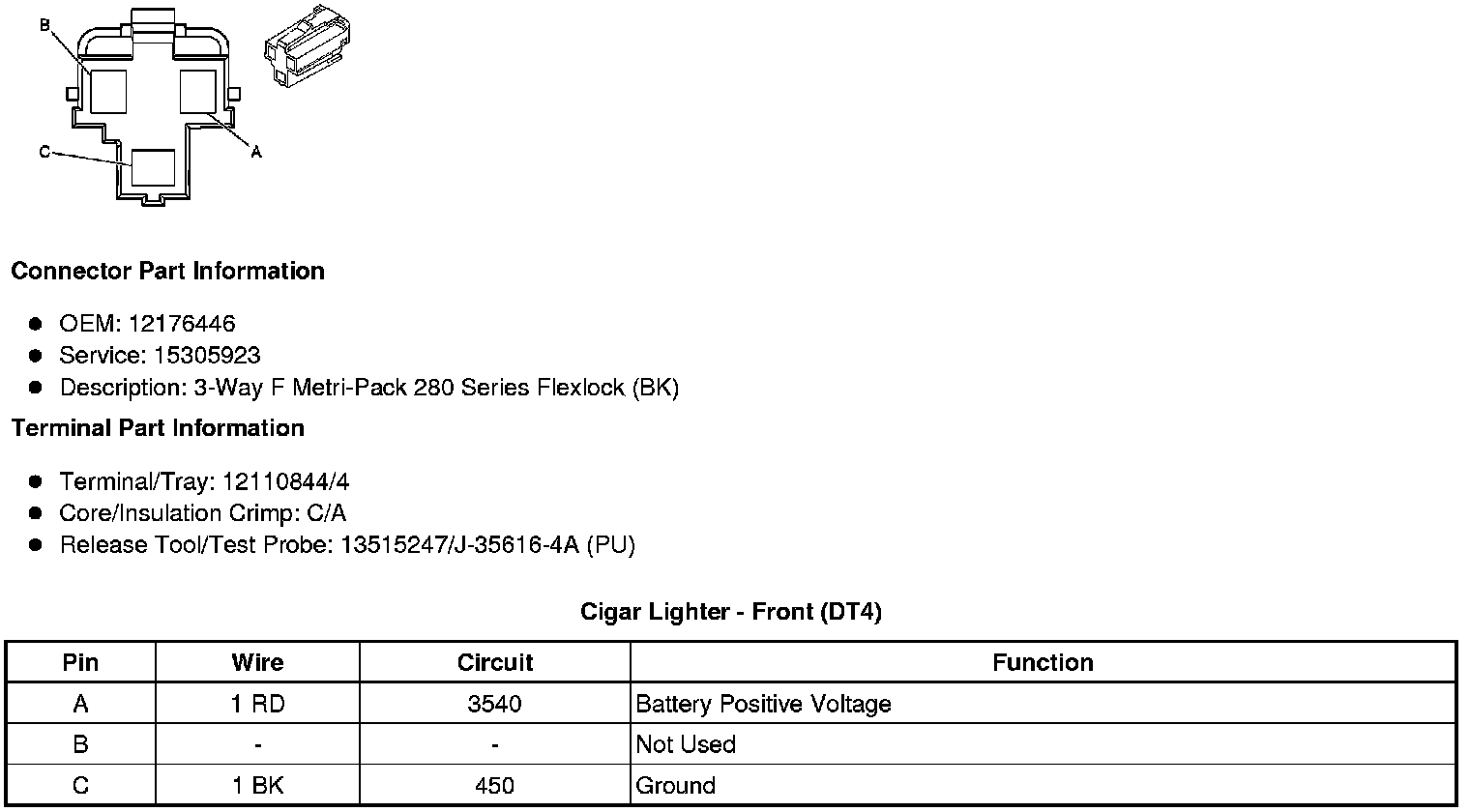

Cigar Lighter - Front (DT4)

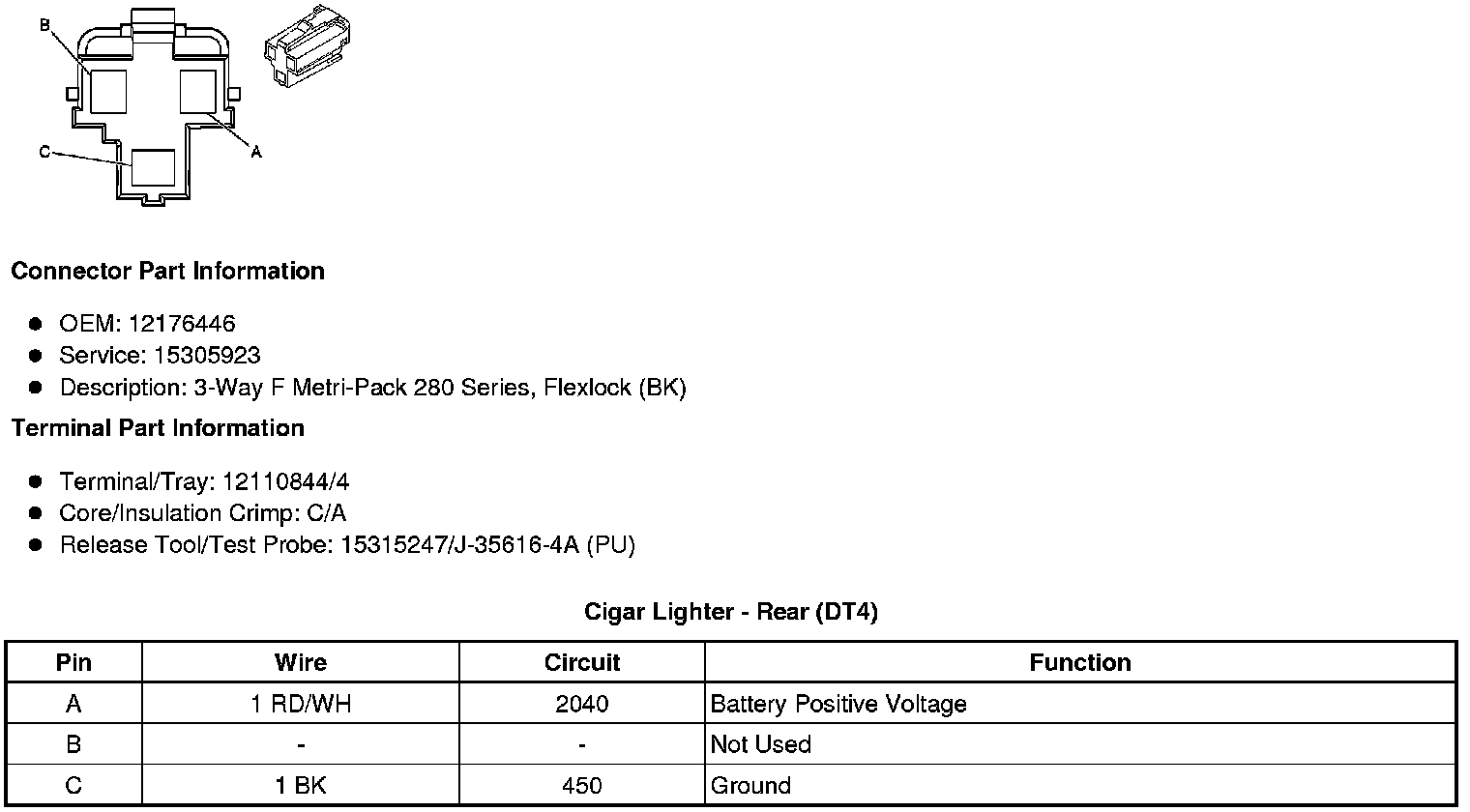

Cigar Lighter - Rear (DT4)
