Home >> Cadillac >> 2009 >> STS AWD V6-3.6L >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Console >> Service and Repair >> Front Floor Rear Console Armrest Latch Replacement

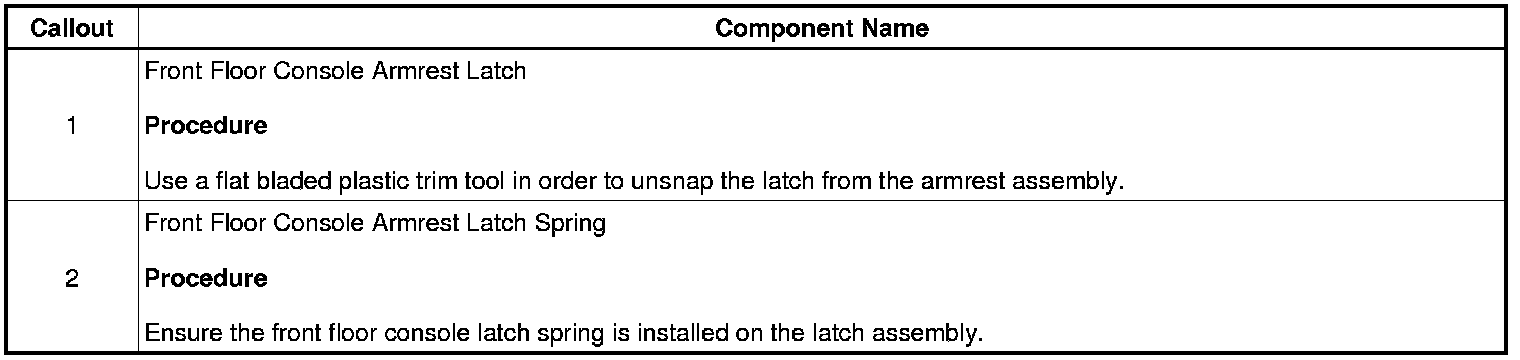

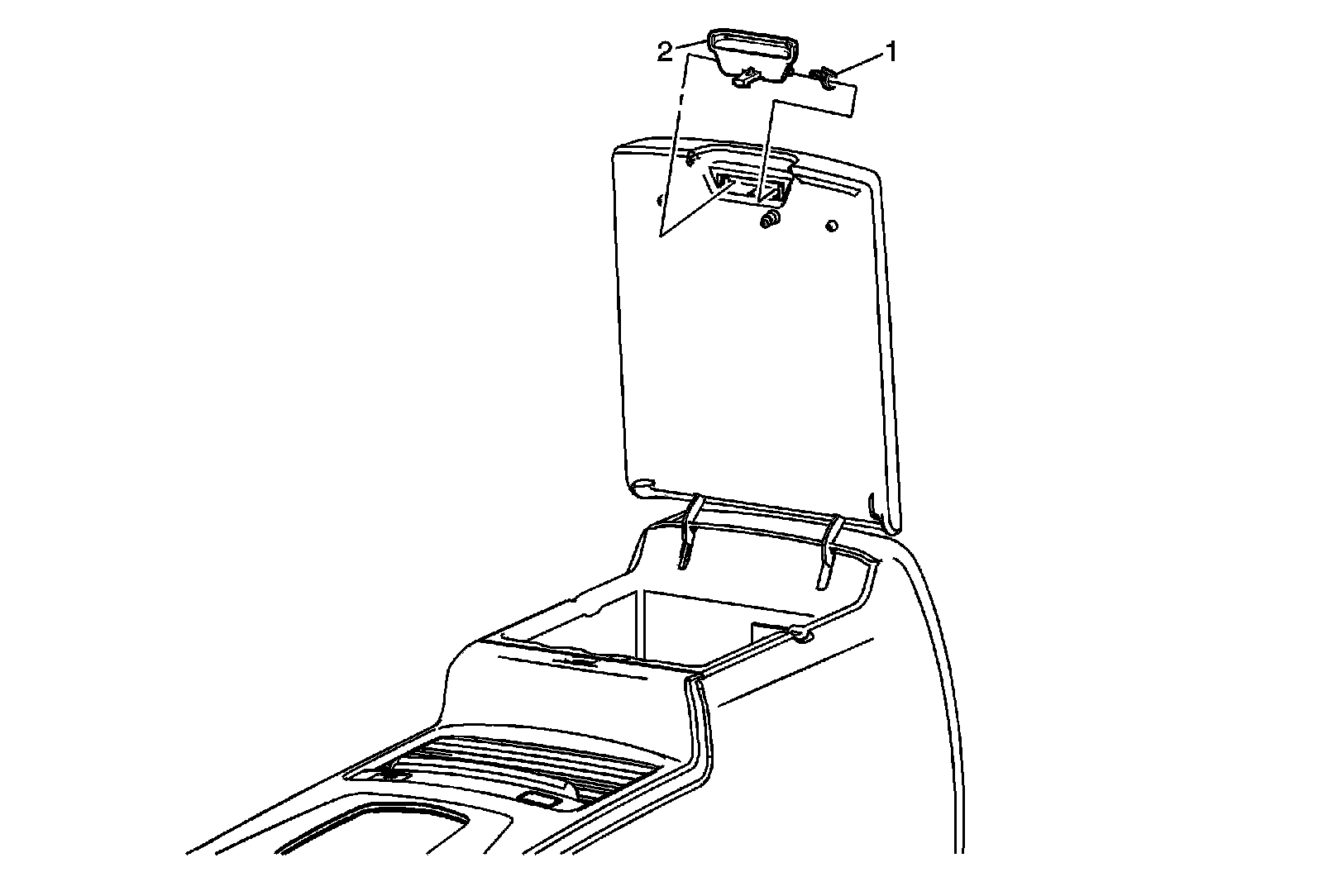

Front Floor Rear Console Armrest Latch Replacement




Front Floor Rear Console Armrest Latch Replacement
