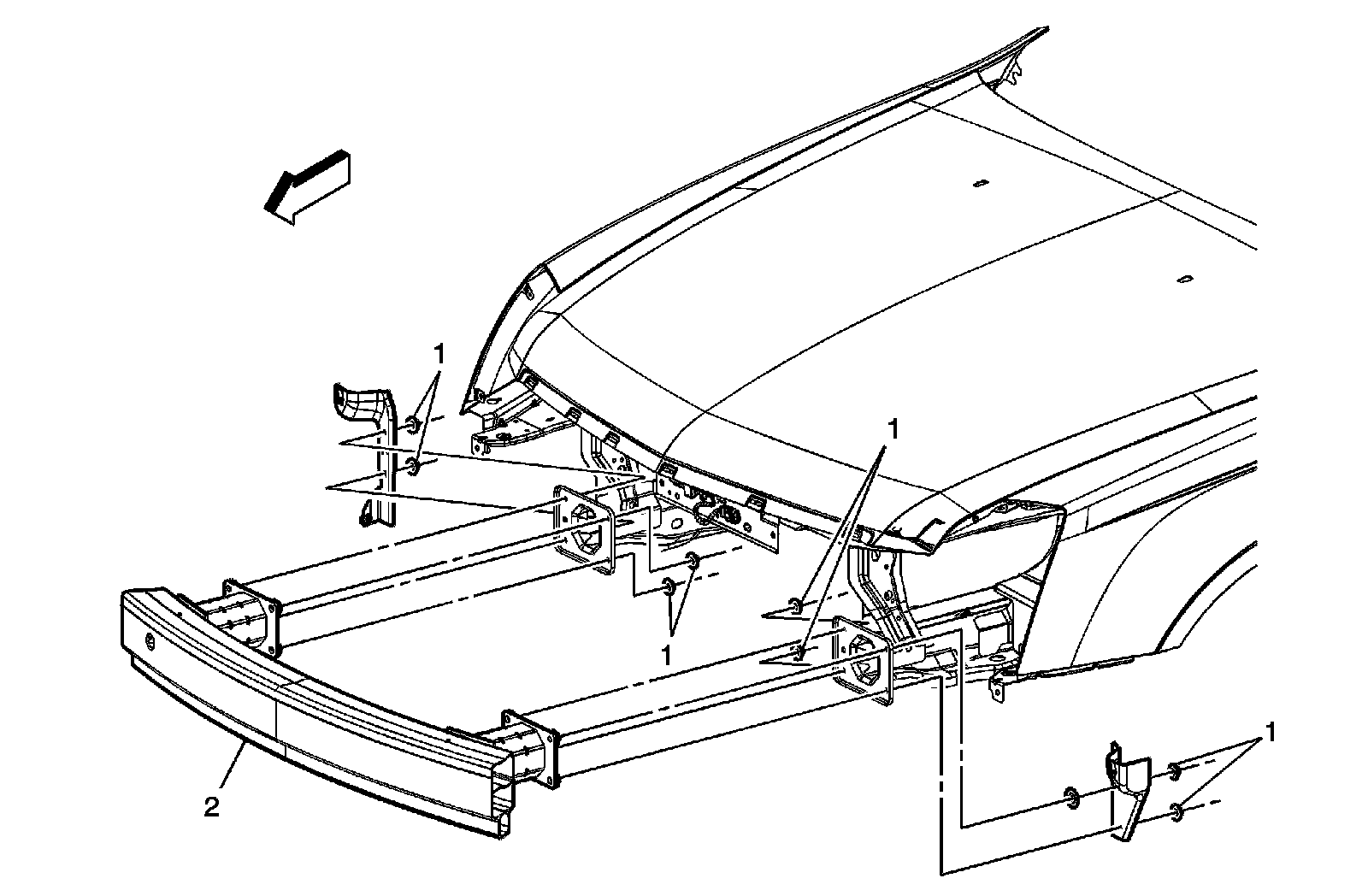

Front Bumper Impact Bar Replacement


Front Bumper Impact Bar Replacement

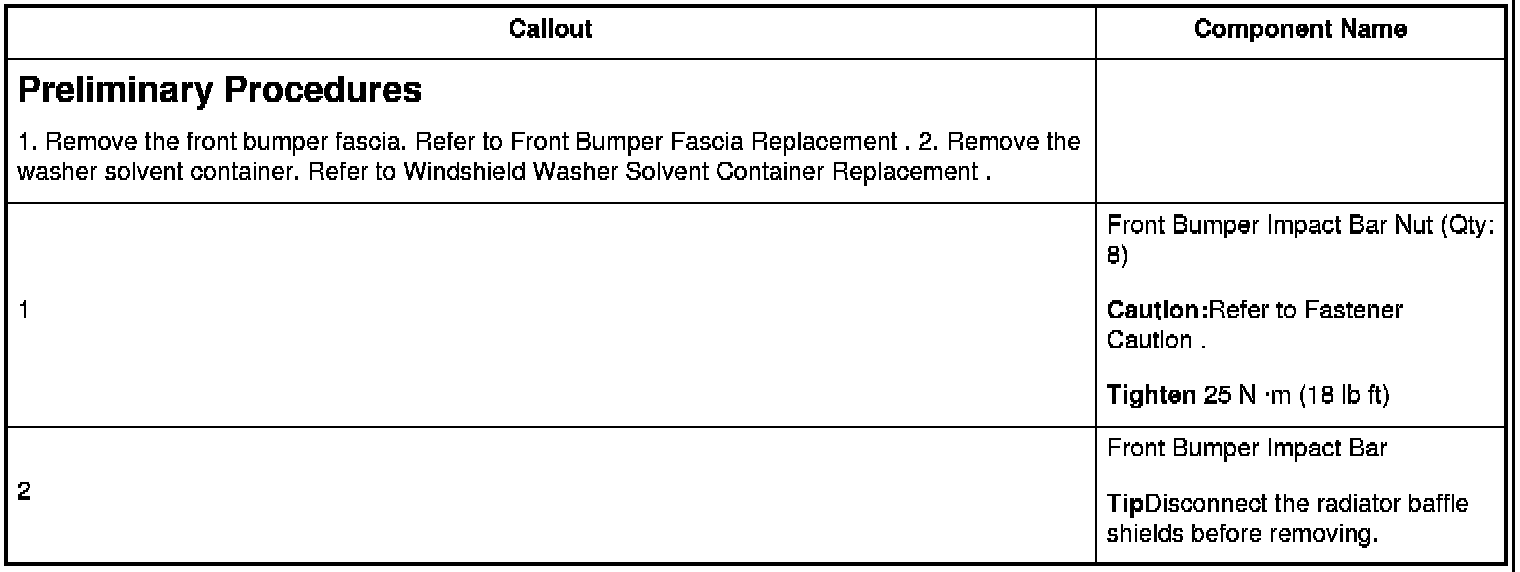

Preliminary Procedures

Caution:Refer to Fastener Caution.
Tighten
TipDisconnect the radiator baffle shields before removing.
