Digital Radio Receiver Replacement

Digital Radio Receiver Replacement

Removal Procedure

1. Remove the rear shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement (Service and Repair).

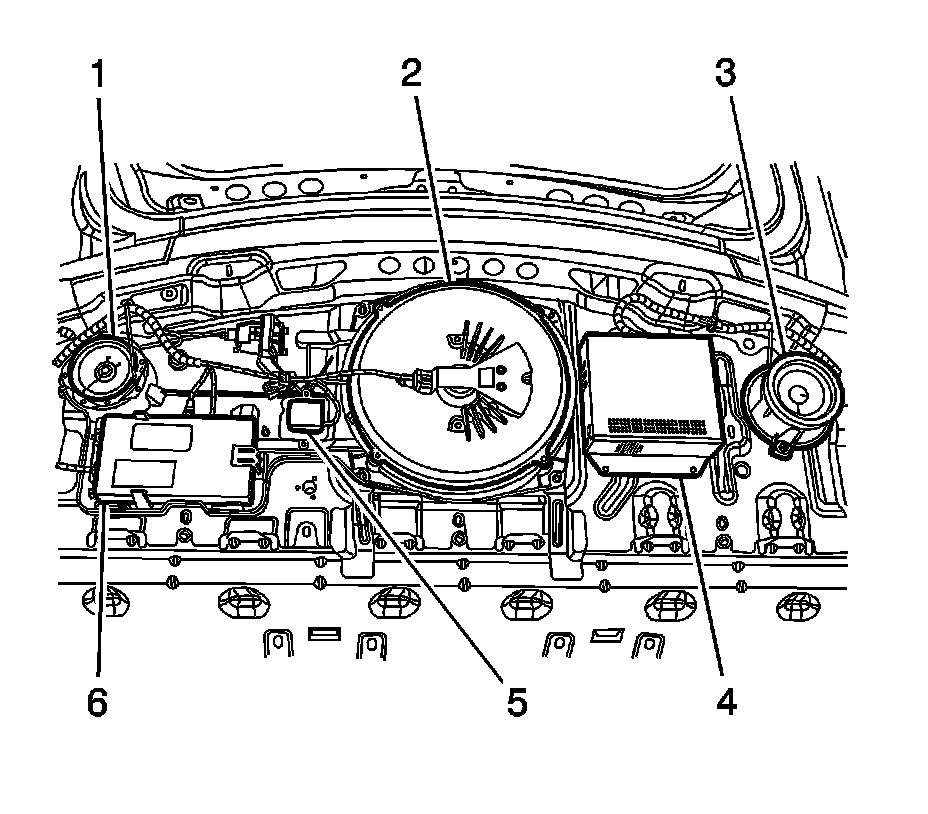

2. Release the retaining clips in order to remove the module (6) from the rear carrier.
3. Disconnect the electrical connectors.

Installation Procedure




1. Install the module (6) to the rear carrier.
2. Connect the electrical connectors.
3. Install the rear shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement (Service and Repair).
4. Reprogram the receiver. Refer to Control Module References (Programming and Relearning).
5. Refer to Control Module References (Programming and Relearning) for programming and setup information.
