Amplifier: Service and Repair

Radio Speaker Amplifier Replacement

Removal Procedure

1. Remove the rear compartment trim. Refer to Rear Compartment Trim Panel Replacement (Service and Repair).

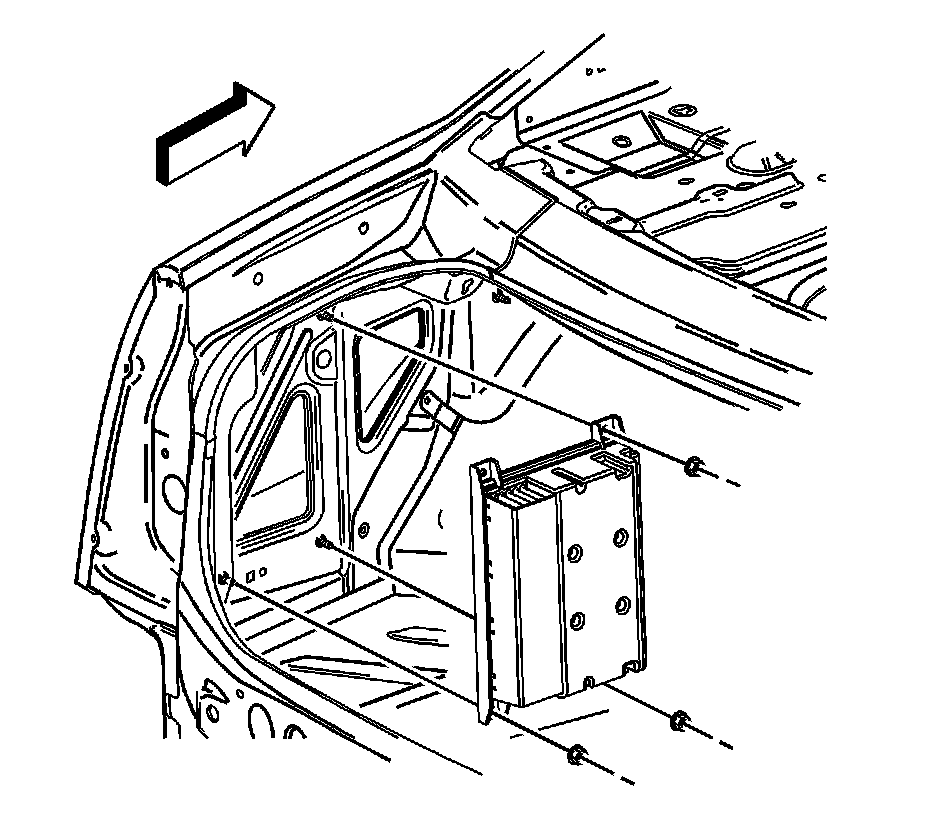

2. Remove the bolts securing the amplifier to the vehicle.
3. Disconnect the electrical connectors.
4. Remove the amplifier.

Installation Procedure




1. Connect the electrical connectors.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the bolts securing the amplifier to the vehicle and tighten the bolts to 9 Nm (80 lb in).
3. Install the rear compartment trim. Refer to Rear Compartment Trim Panel Replacement (Service and Repair).
4. Refer to Control Module References (Programming and Relearning) for programming and setup information.
