FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Cadillac
>>
2009
>>
CTS RWD V8-6.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antenna, Navigation
Antenna, Navigation
Component Connector End Views

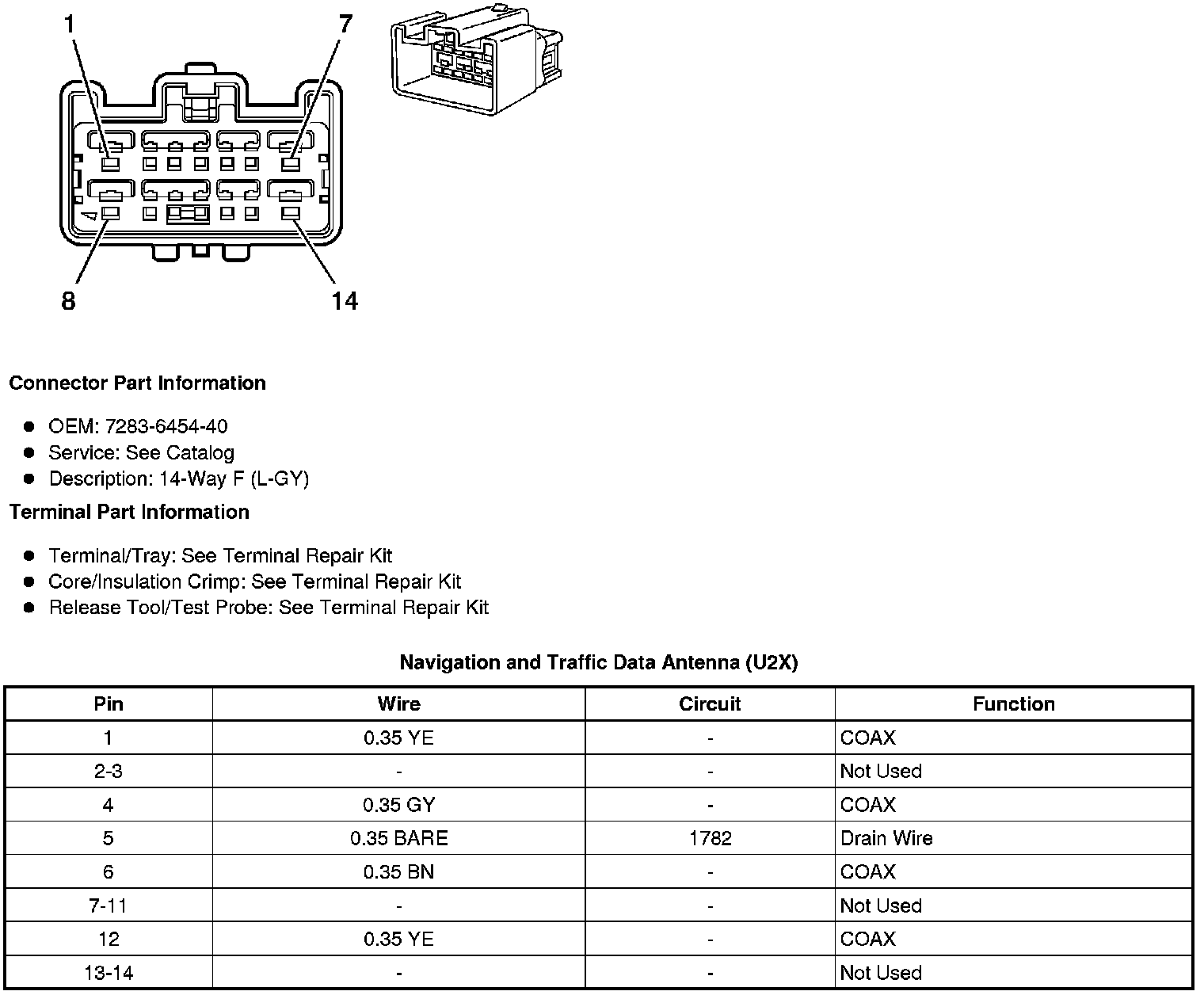

Navigation and Traffic Data Antenna (U2X)
