Home >> Cadillac >> 2008 >> XLR V8-4.4L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> Fuse Block - Underhood

Fuse Block - Underhood

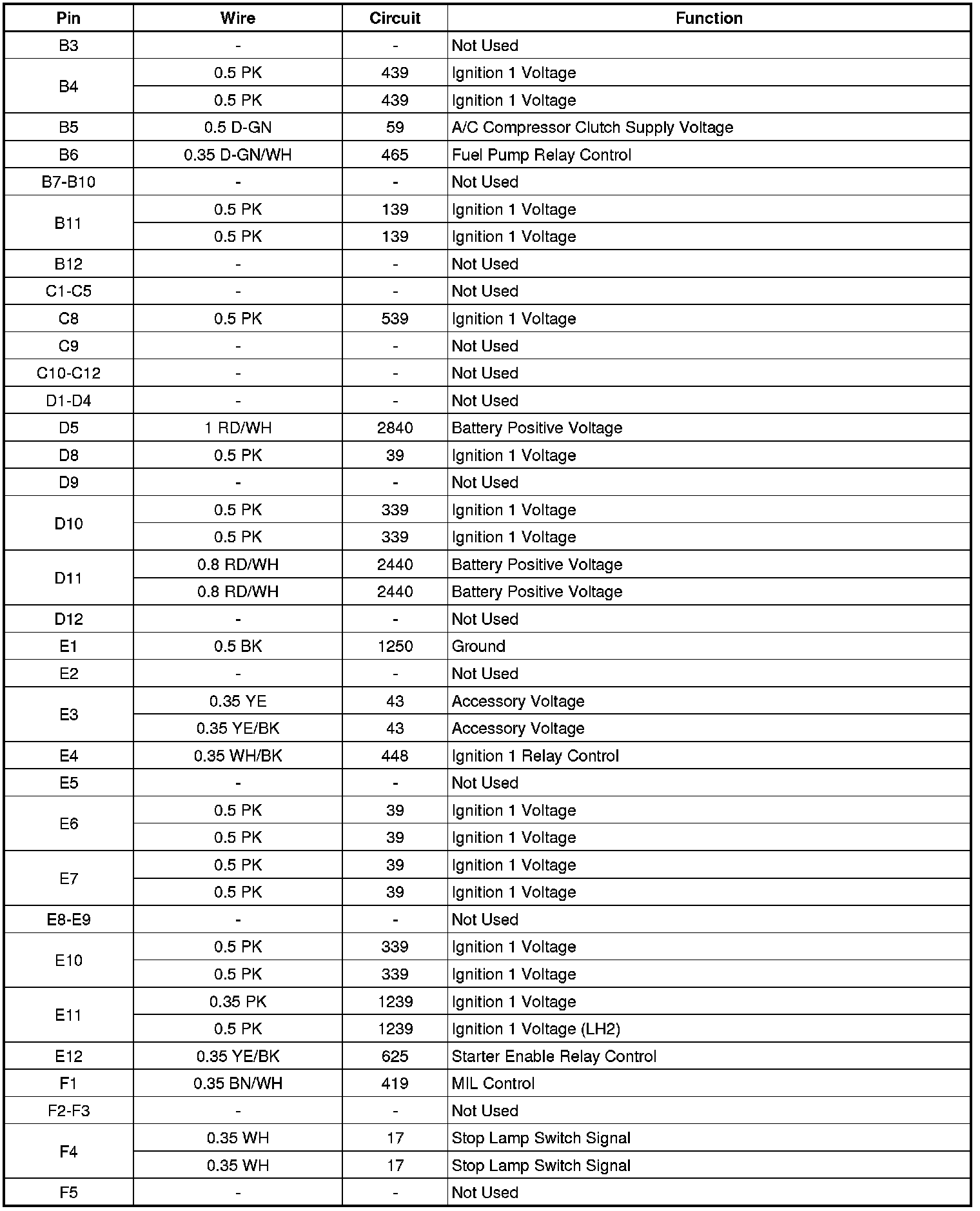

Fuse Block - Underhood Label

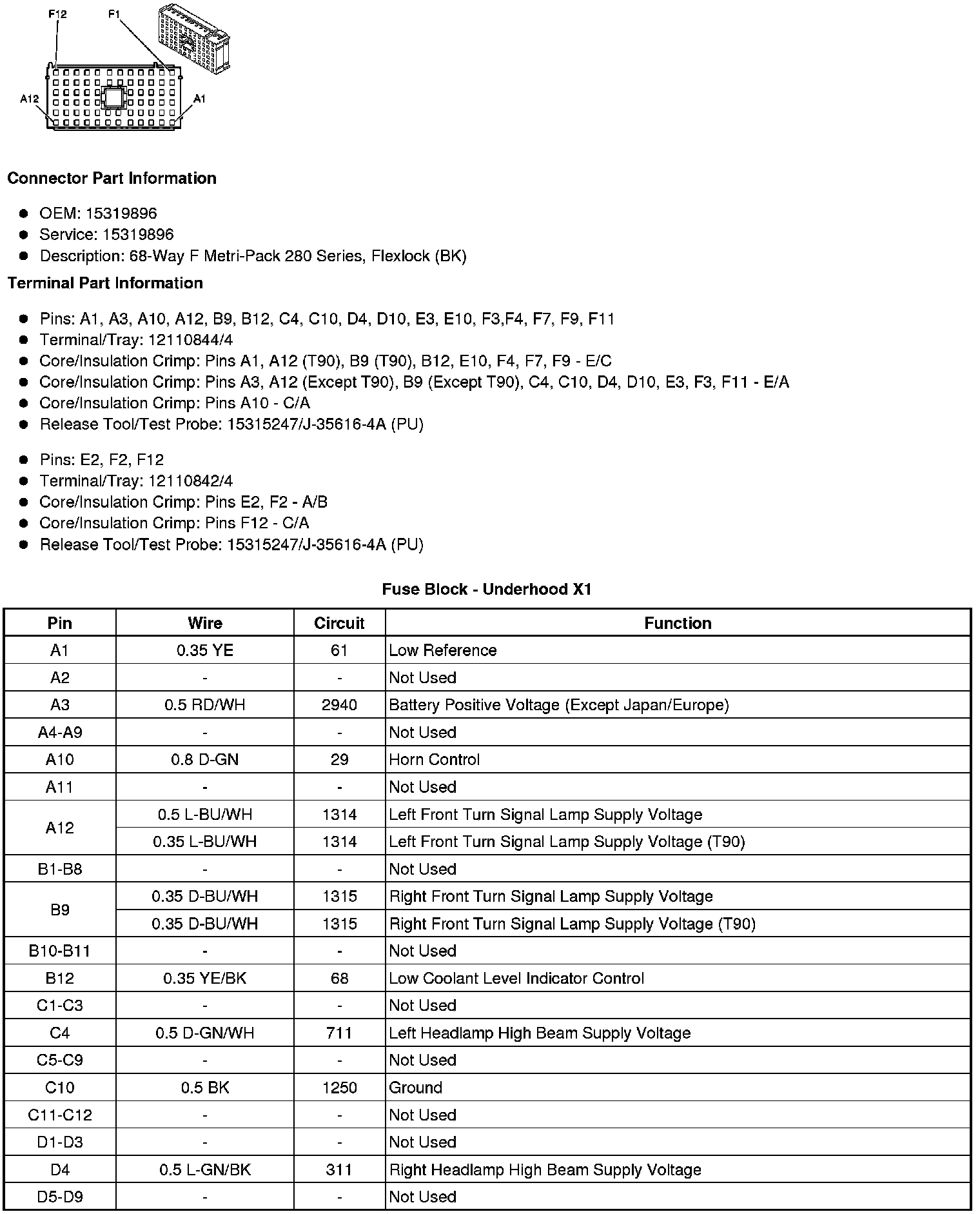

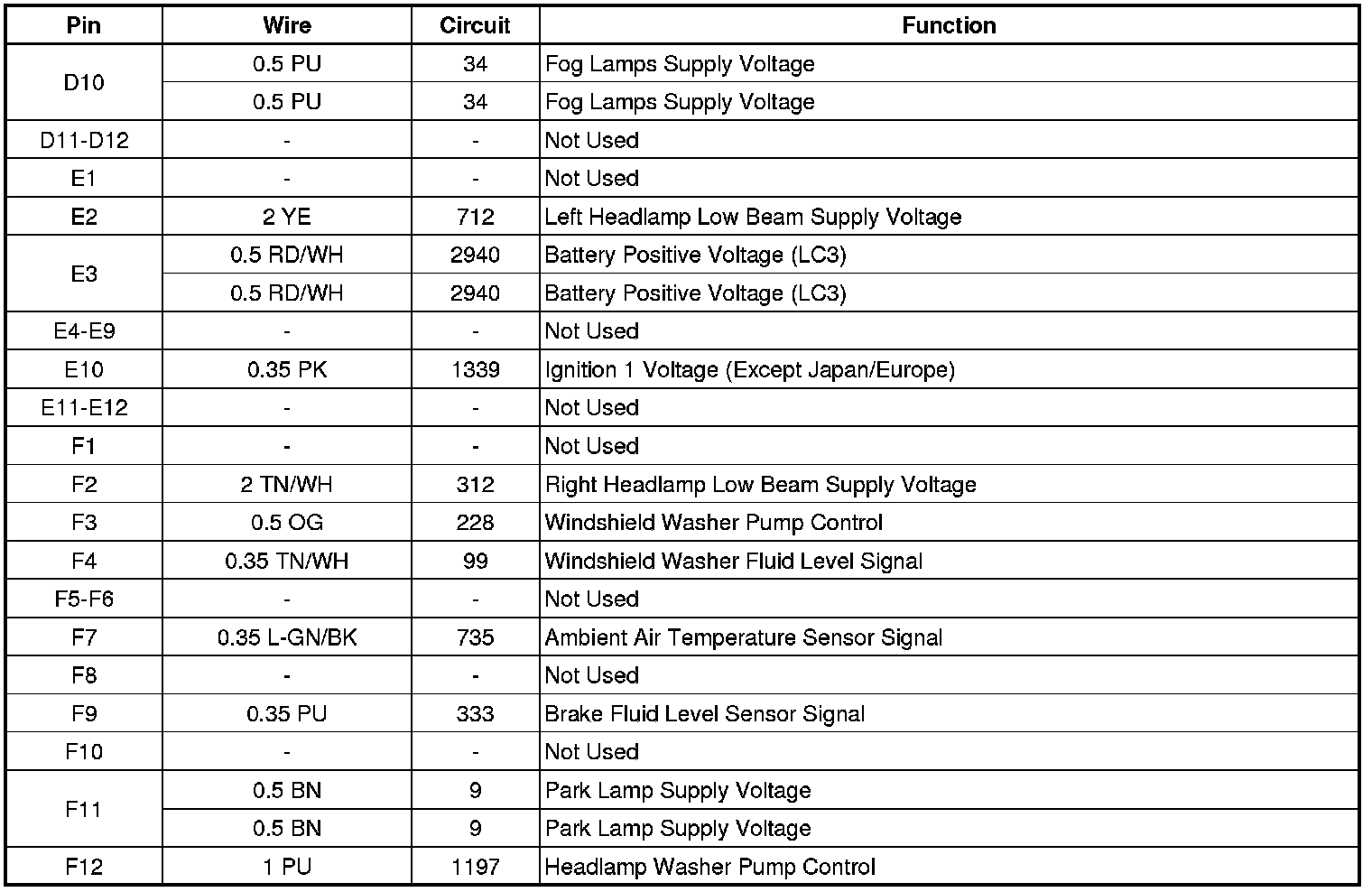

Fuse Block - Underhood X1

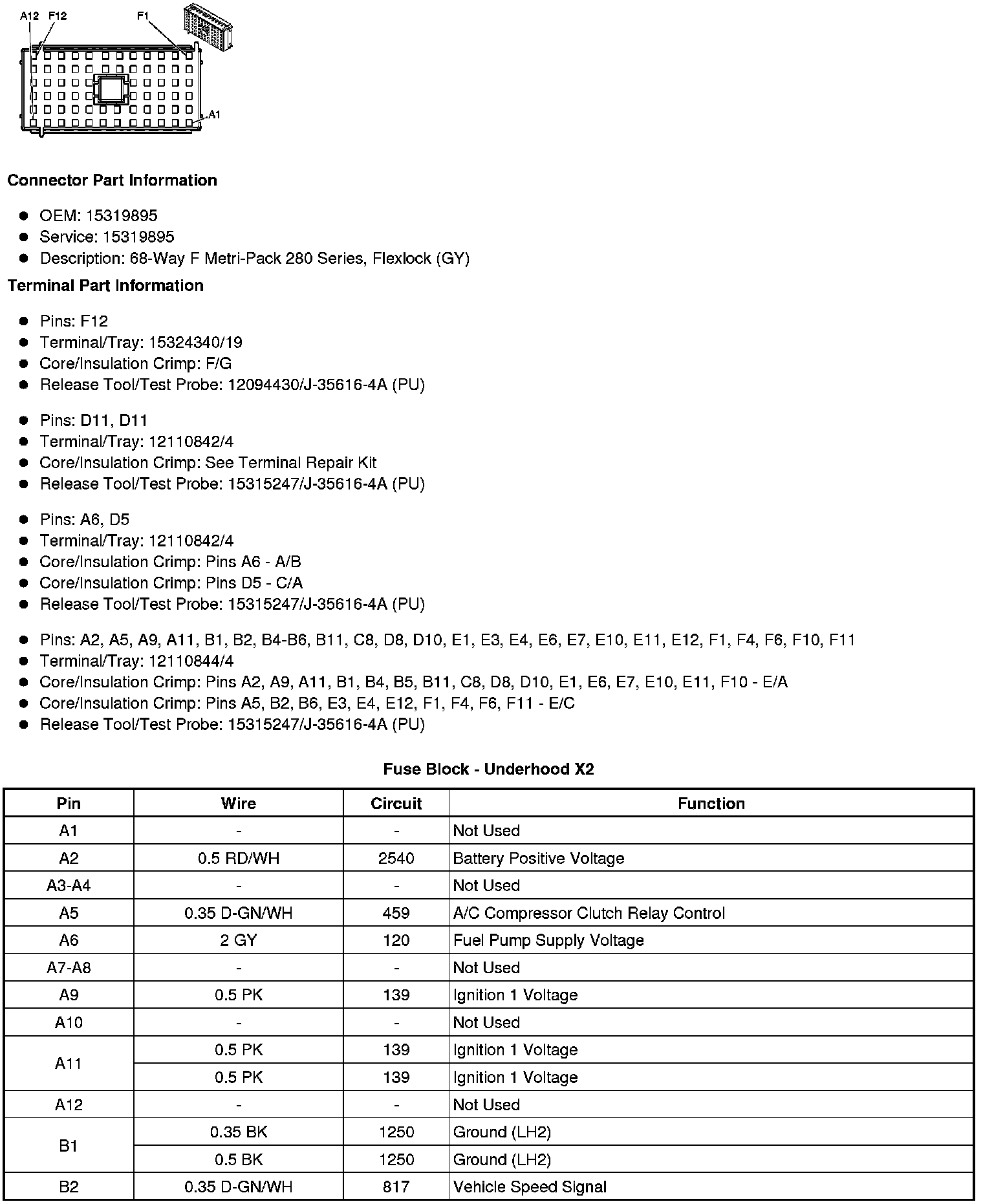

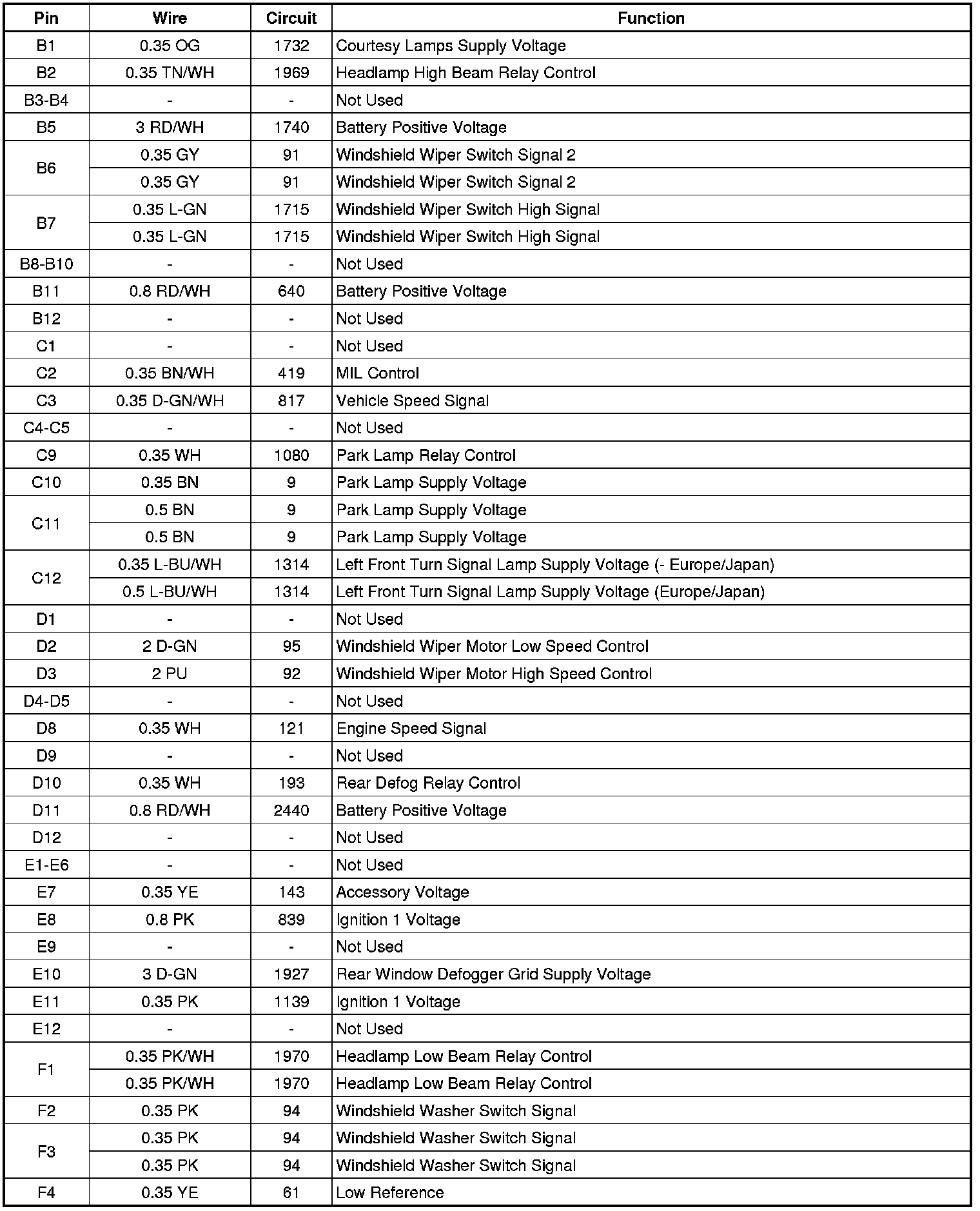

Fuse Block - Underhood X2

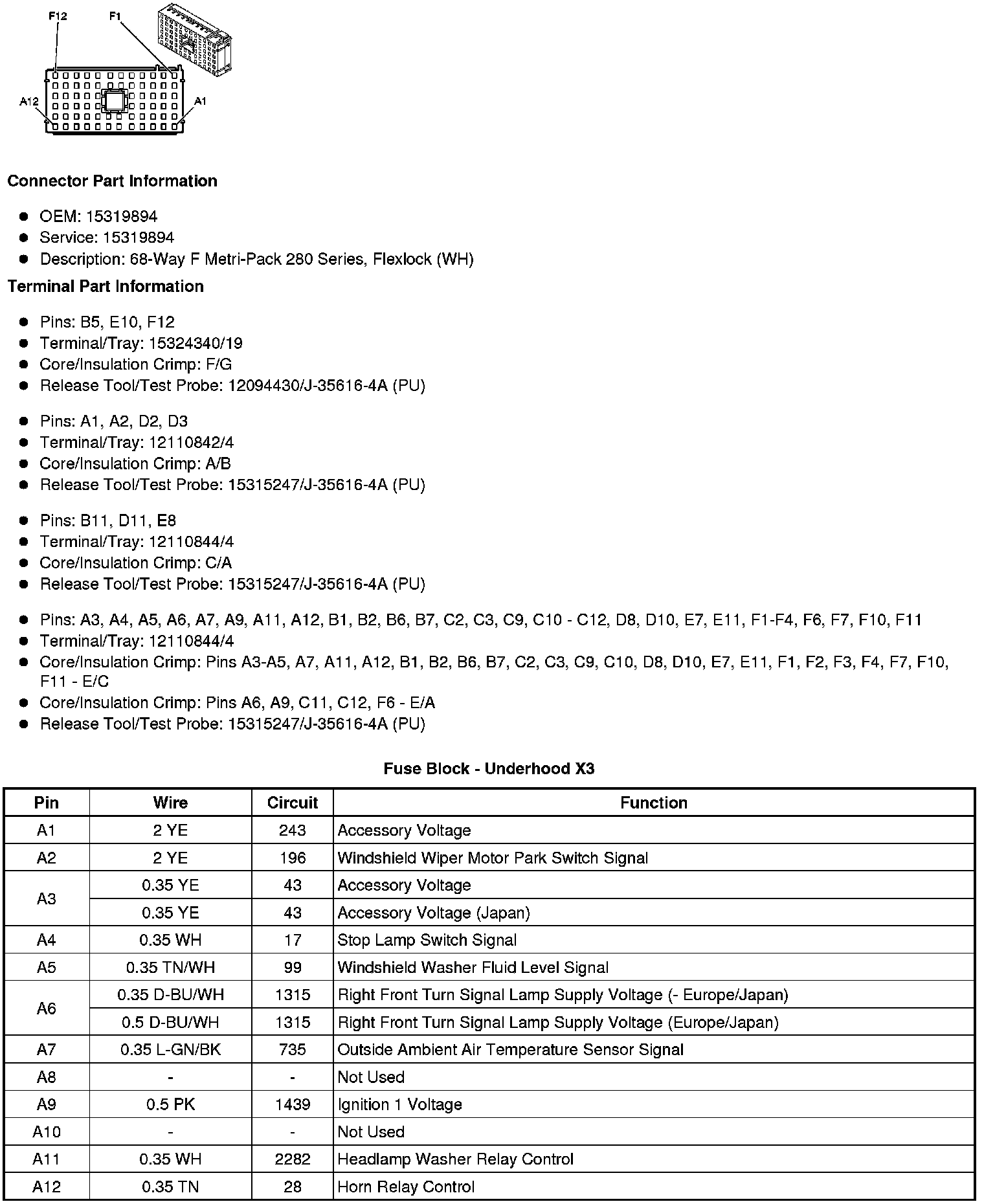

Fuse Block - Underhood X3

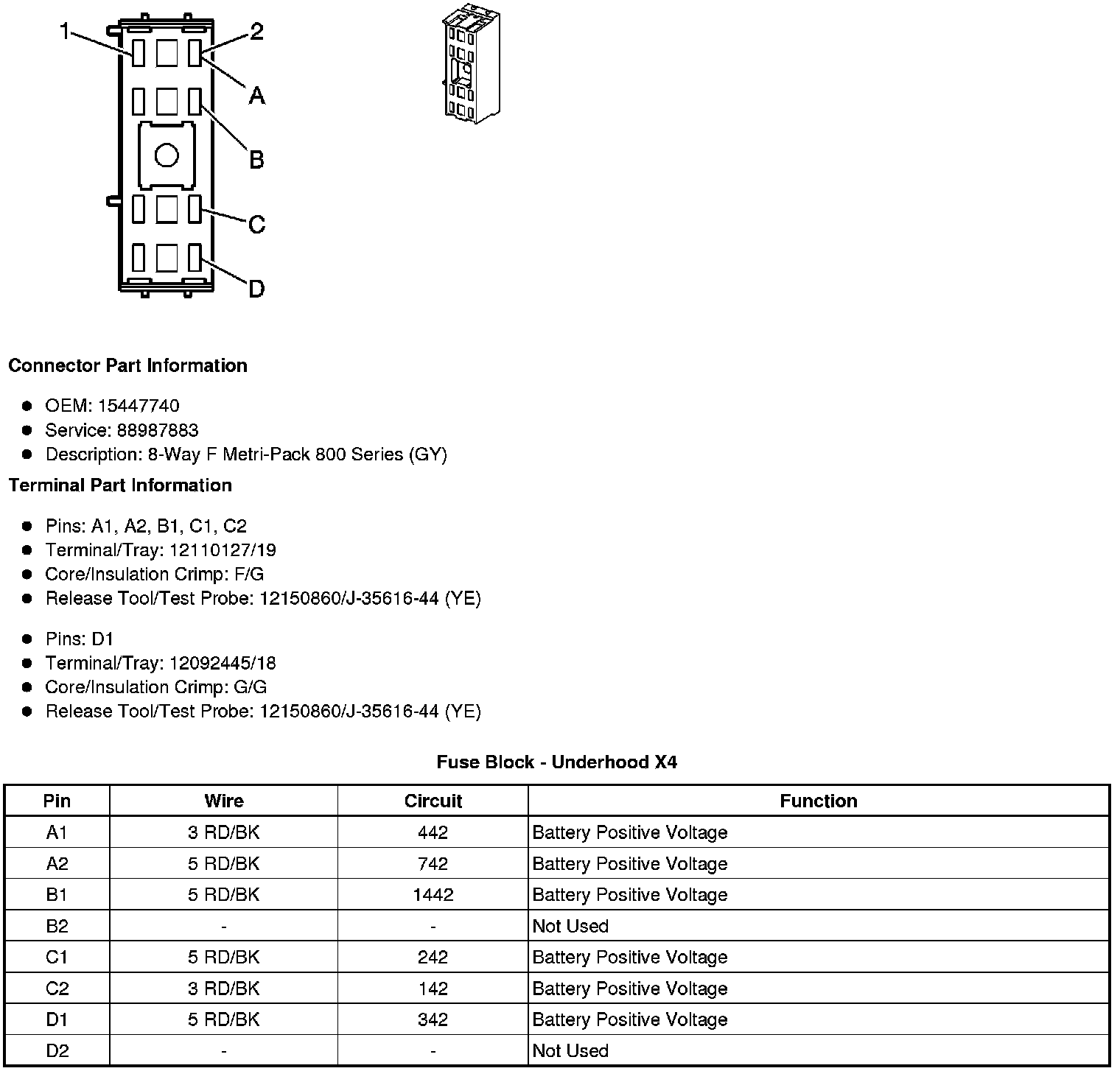

Fuse Block - Underhood X4
