Damping Control Actuator: Diagrams



Component Connector End Views

Suspension Damper Solenoid - Left Front (F55)





Suspension Damper Solenoid - Left Rear (F55)

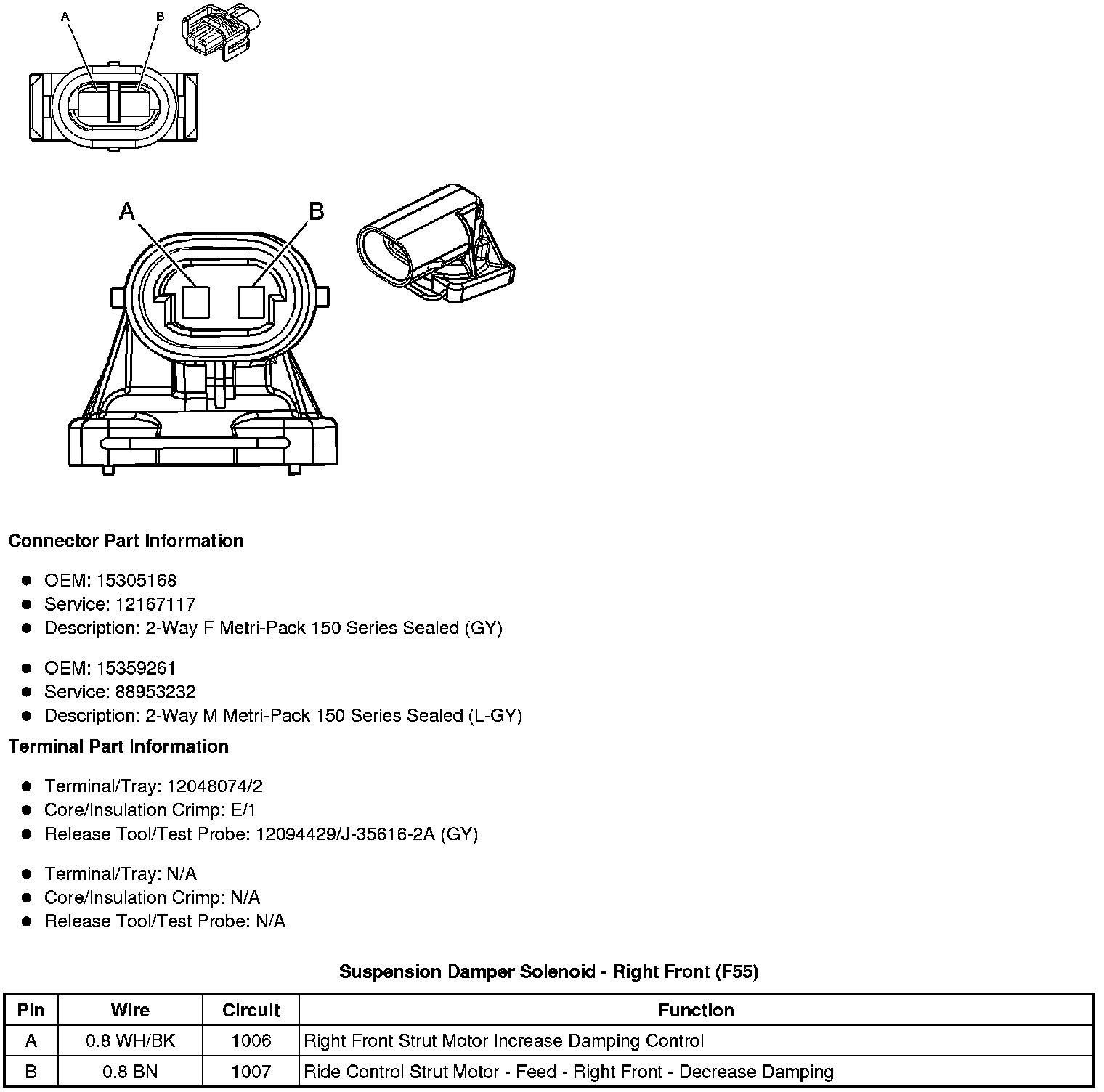

Suspension Damper Solenoid - Right Front (F55)

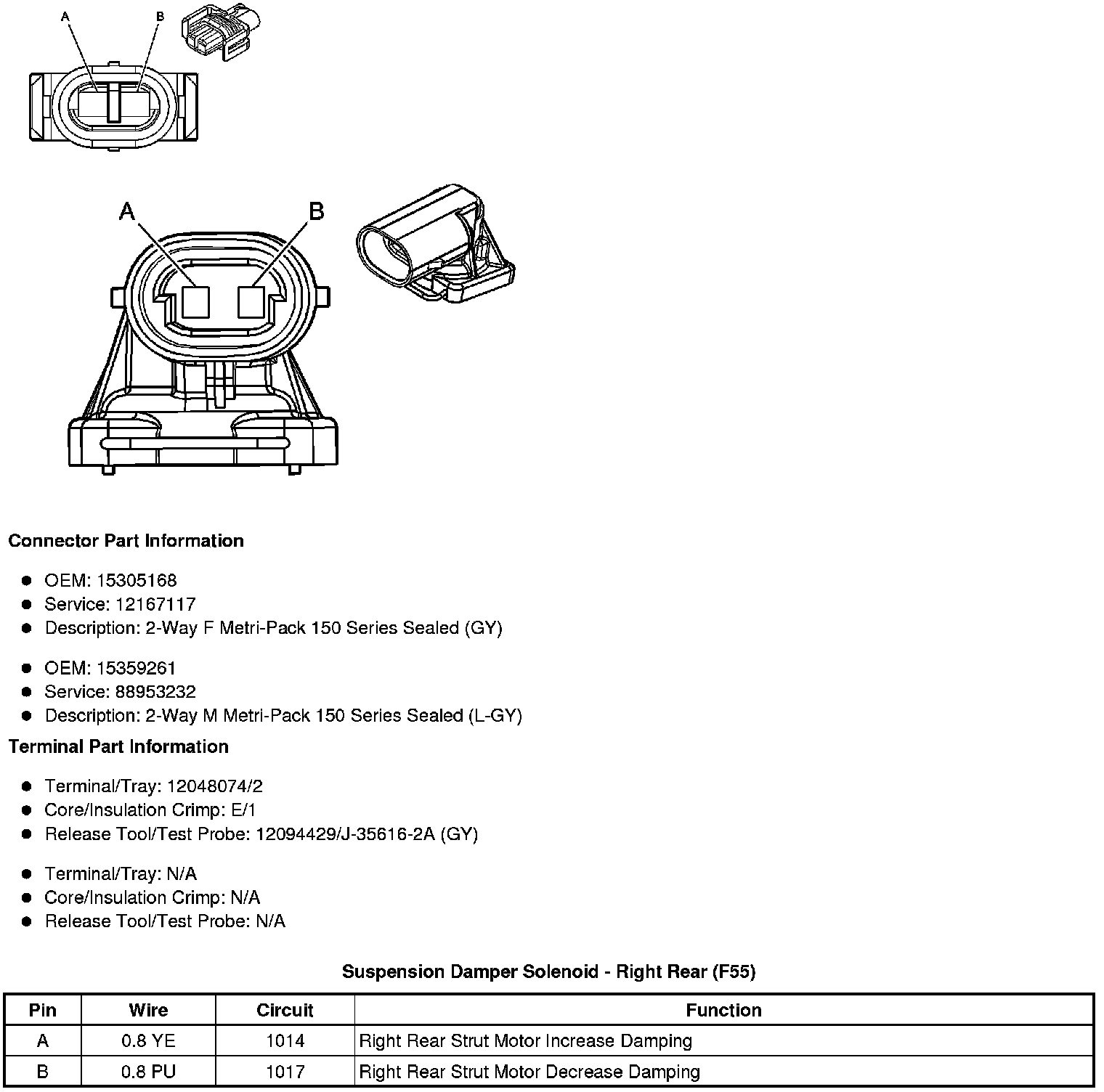

Suspension Damper Solenoid - Right Rear (F55)
