X319

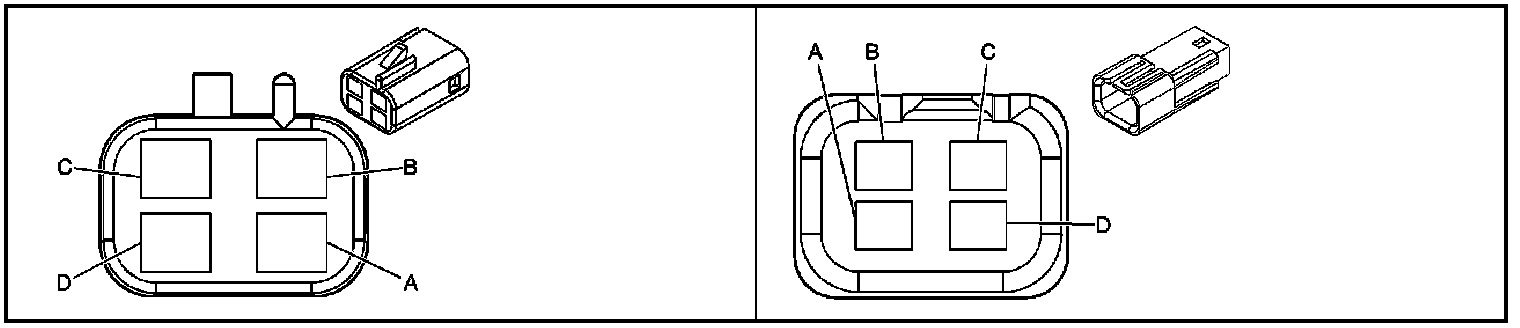

Inline Harness Connector End Views

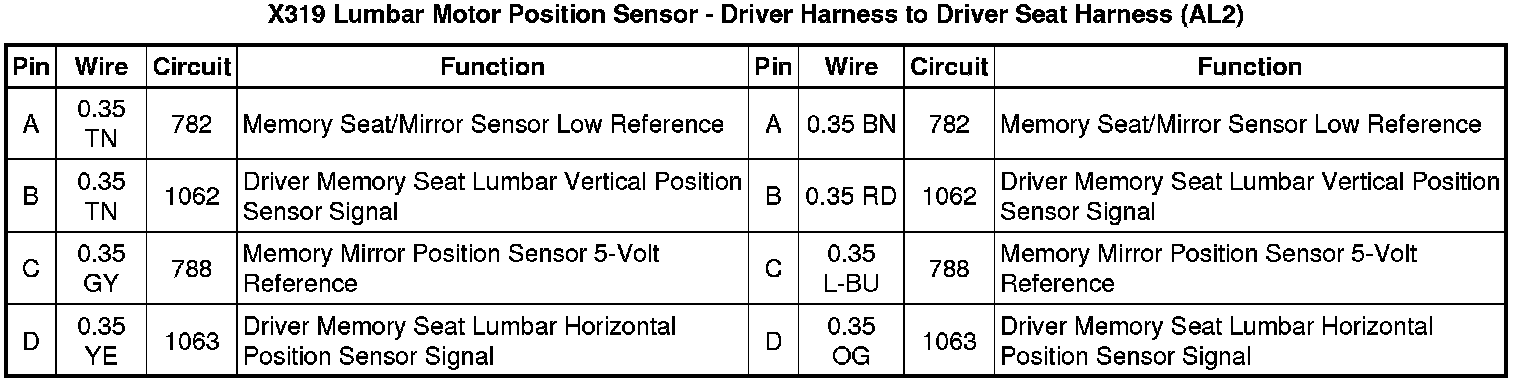

X319 Lumbar Motor Position Sensor - Driver Harness to Driver Seat Harness (AL2)
