X315

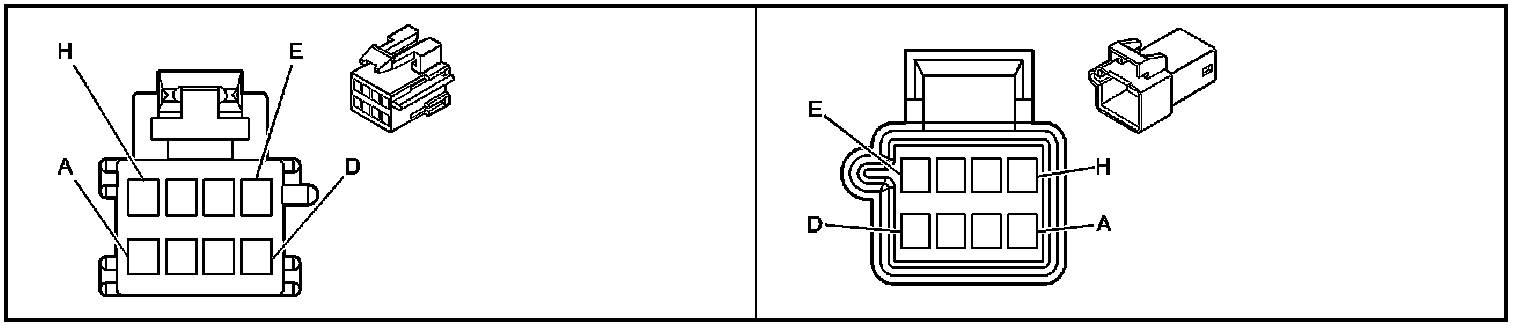

Inline Harness Connector End Views

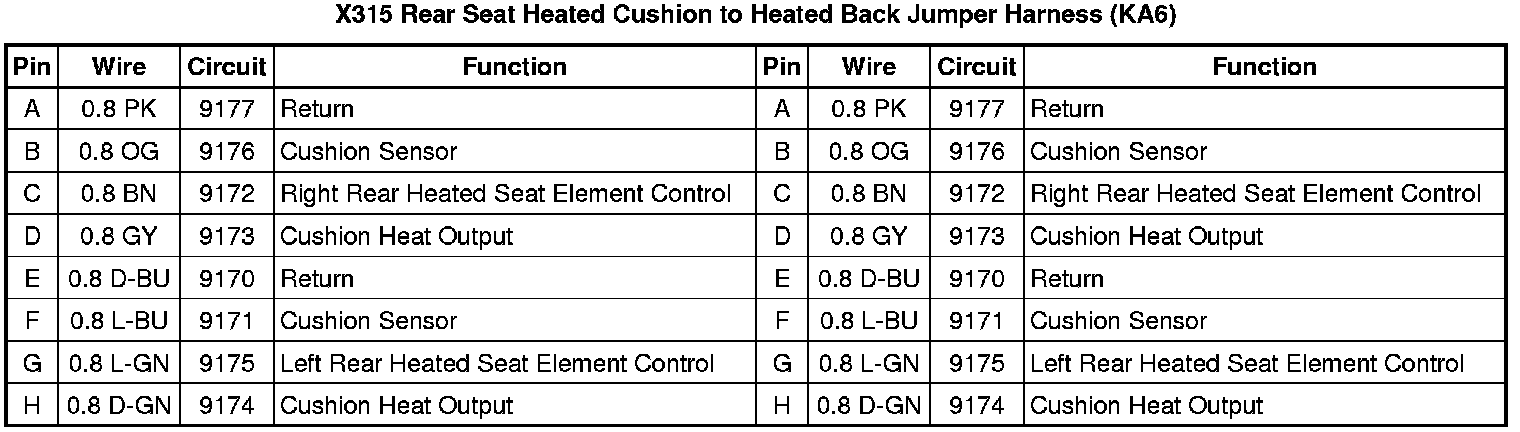

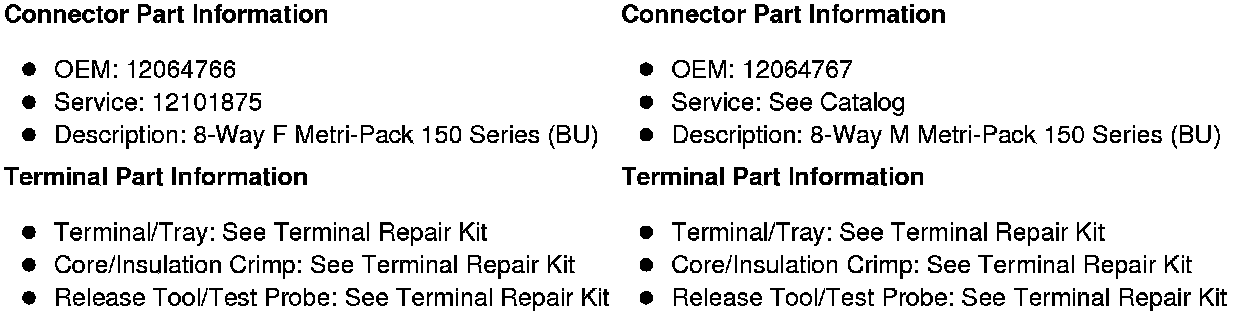

X315 Rear Seat Heated Cushion to Heated Back Jumper Harness (KA6)
