X218
X218

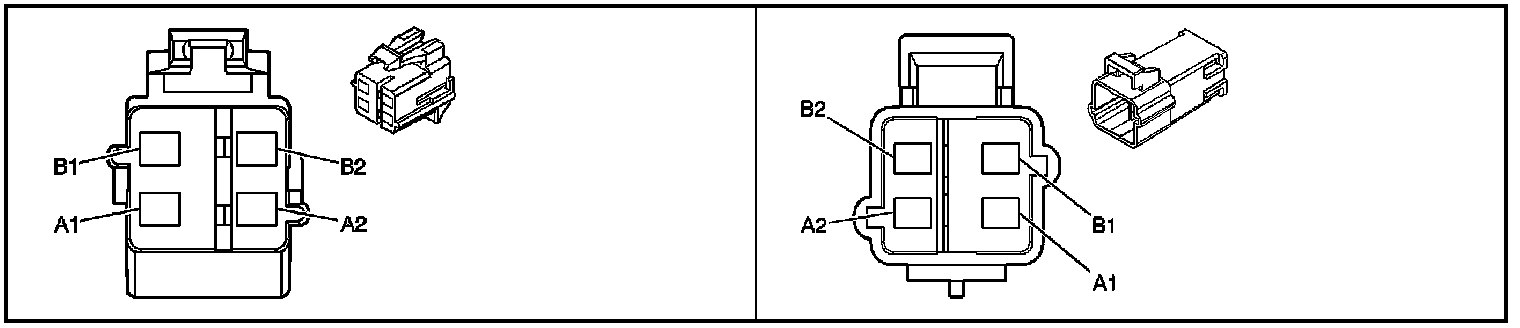

Inline Harness Connector End Views

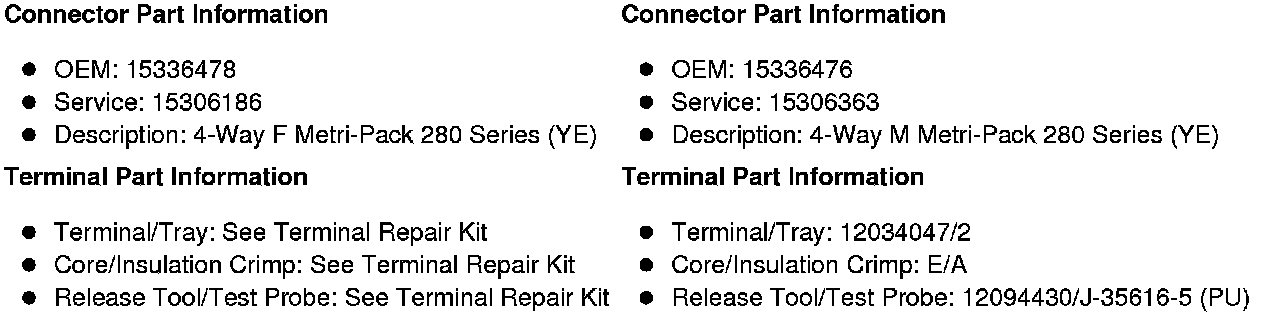

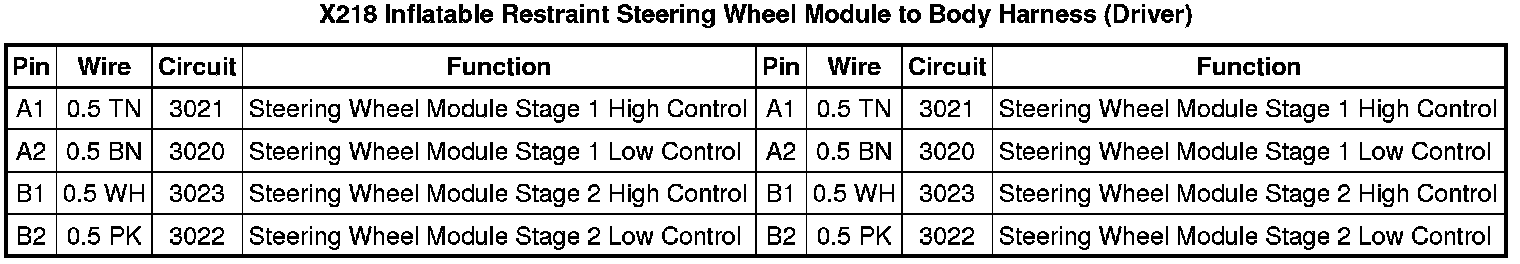

X218 Inflatable Restraint Steering Wheel Module to Body Harness (Driver)
