X211

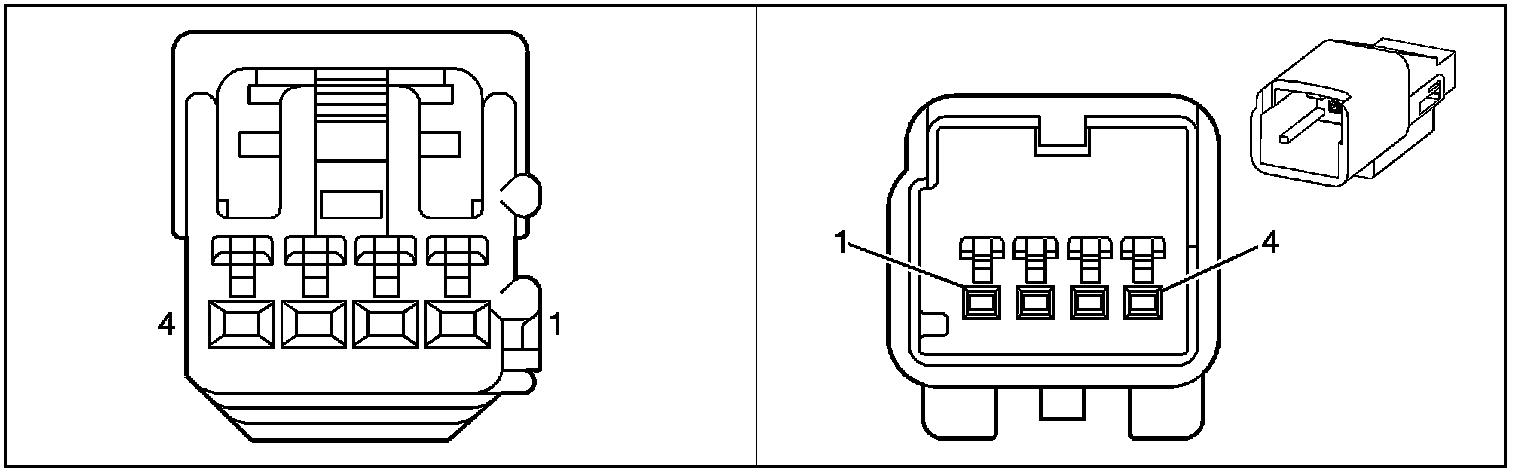

Inline Harness Connector End Views

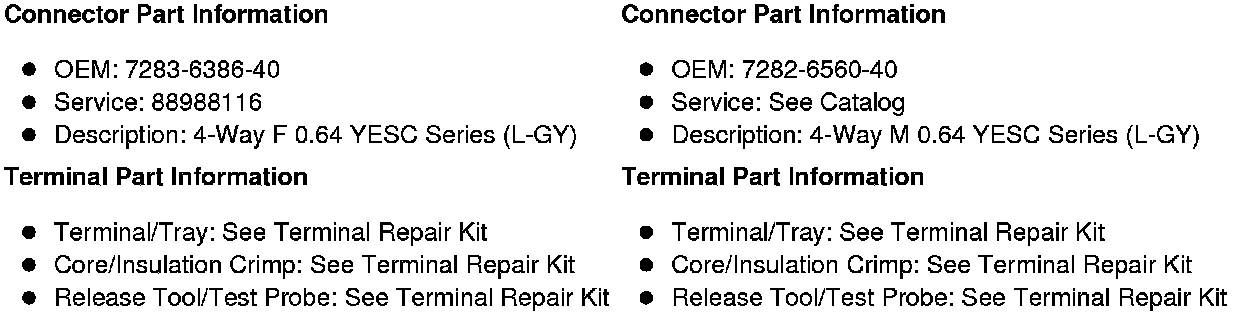

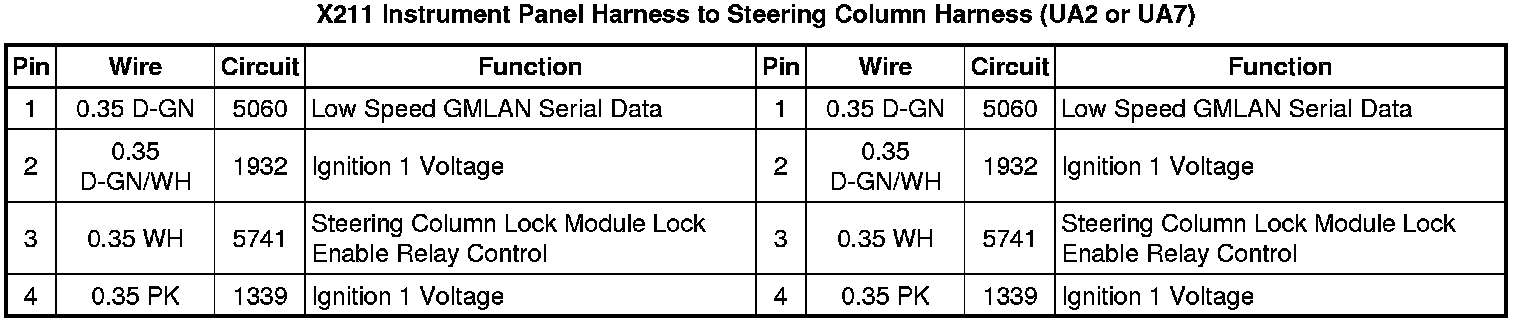

X211 Instrument Panel Harness to Steering Column Harness (UA2 or UA7)
