X123
X123

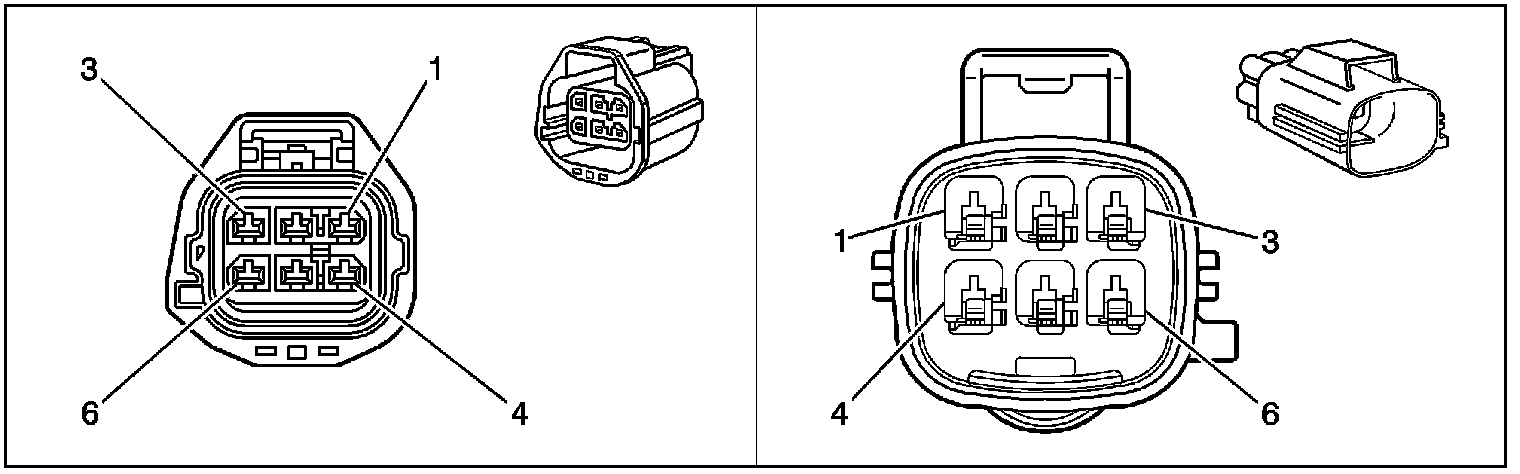

Inline Harness Connector End Views

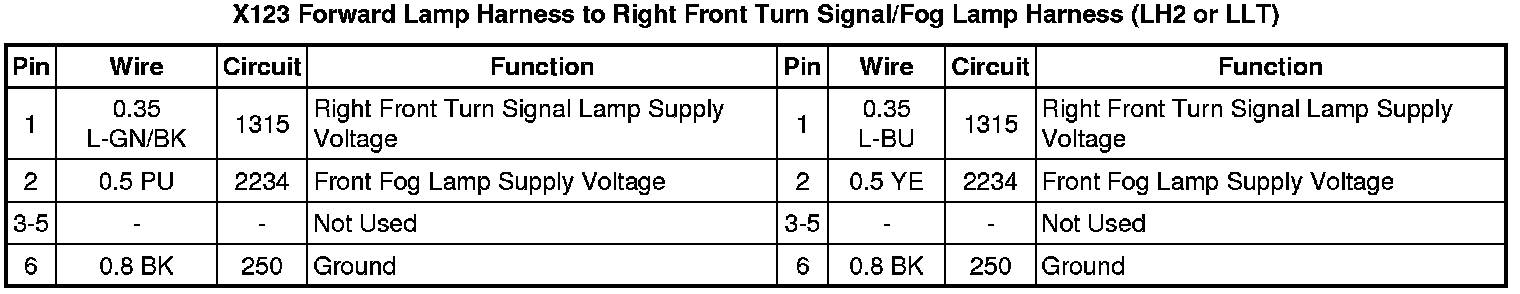

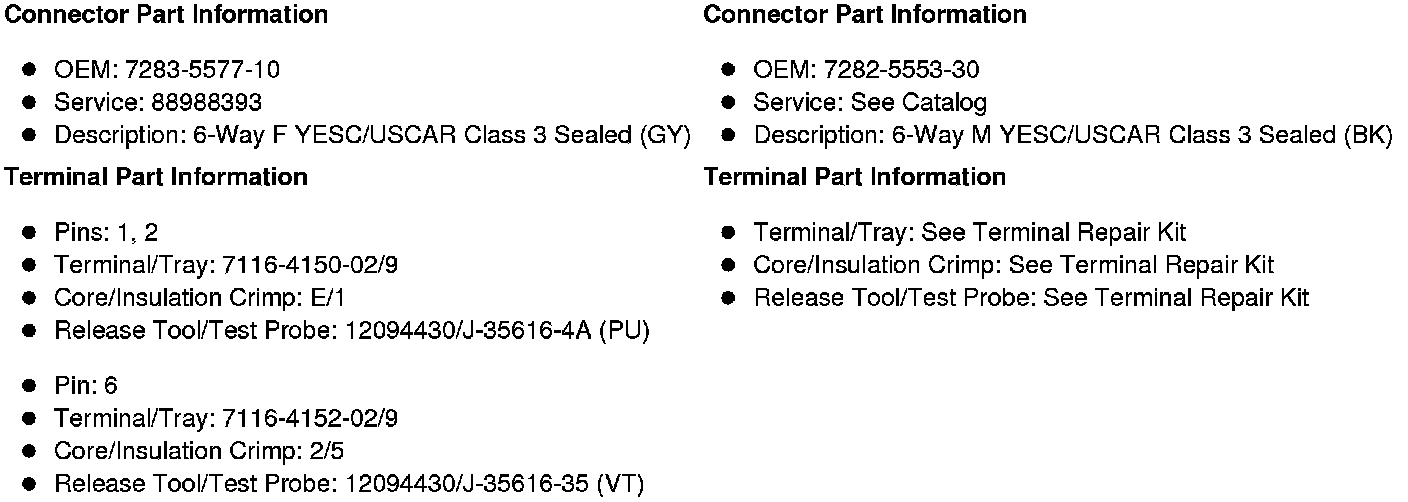

X123 Forward Lamp Harness to Right Front Turn Signal/Fog Lamp Harness (LH2 or LLT)
