X112

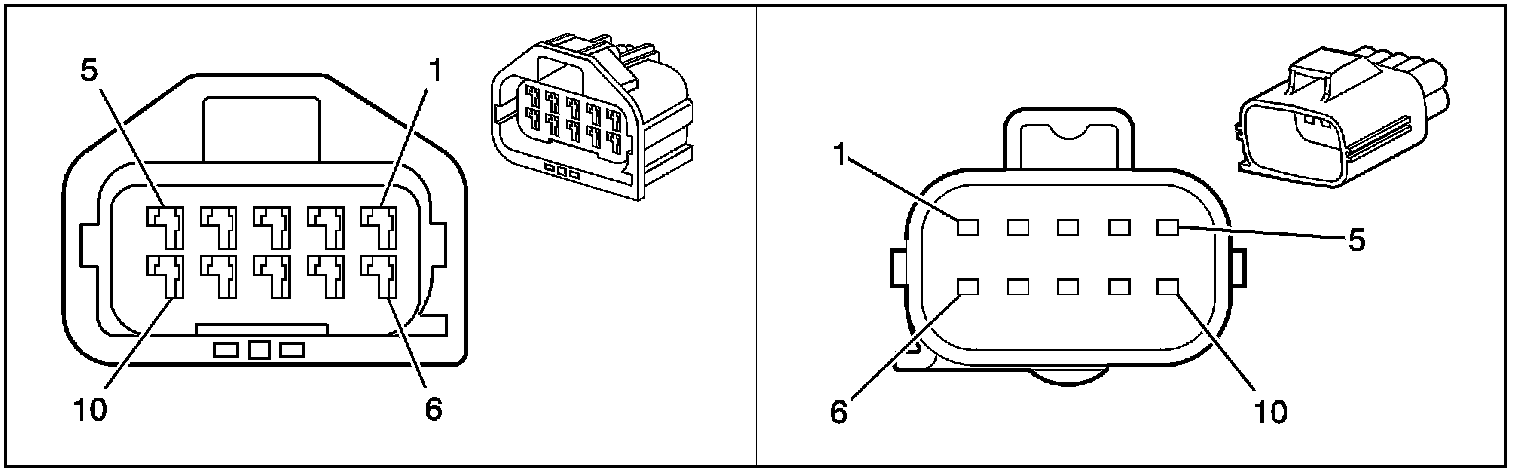

Inline Harness Connector End Views

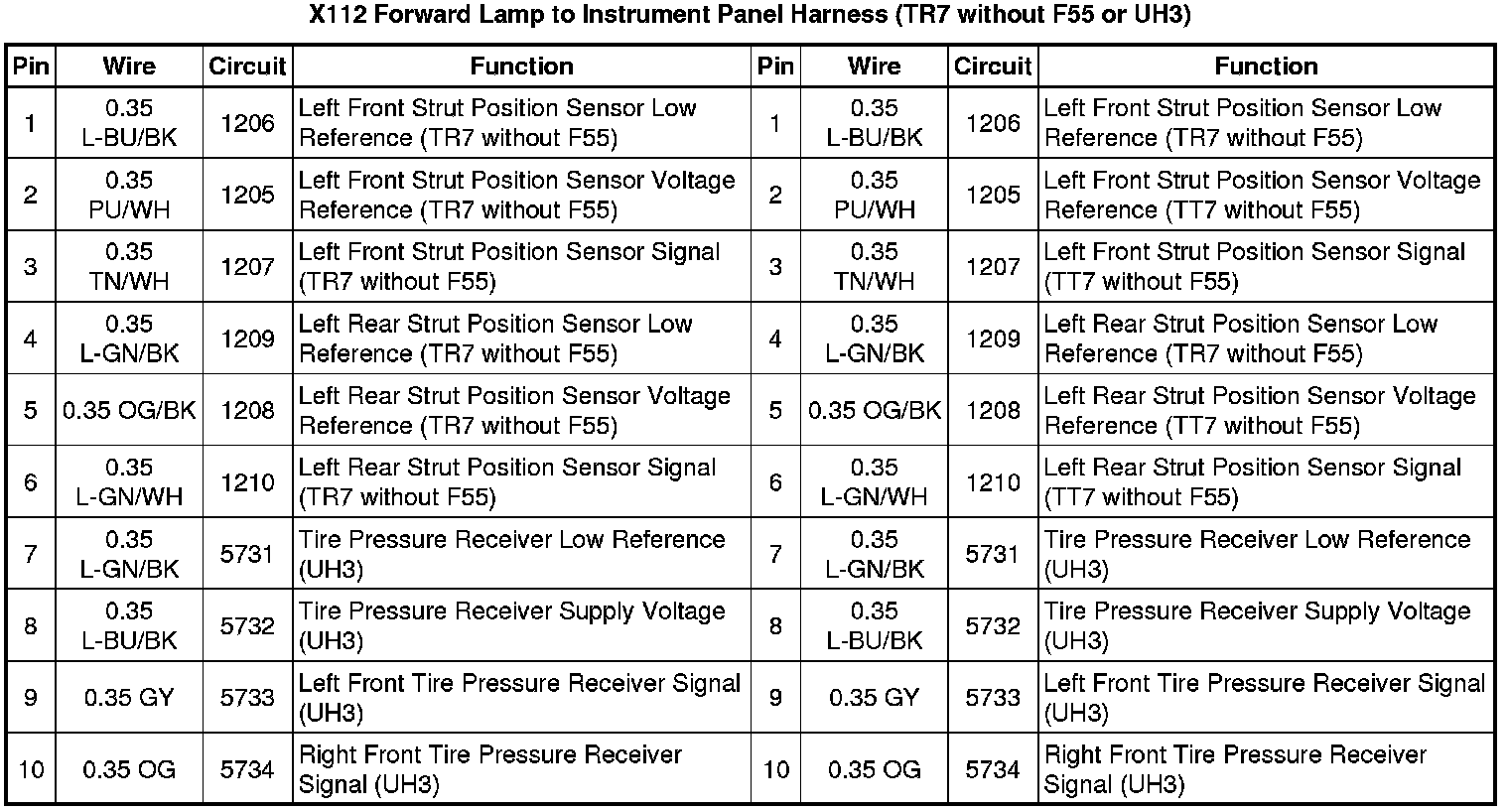

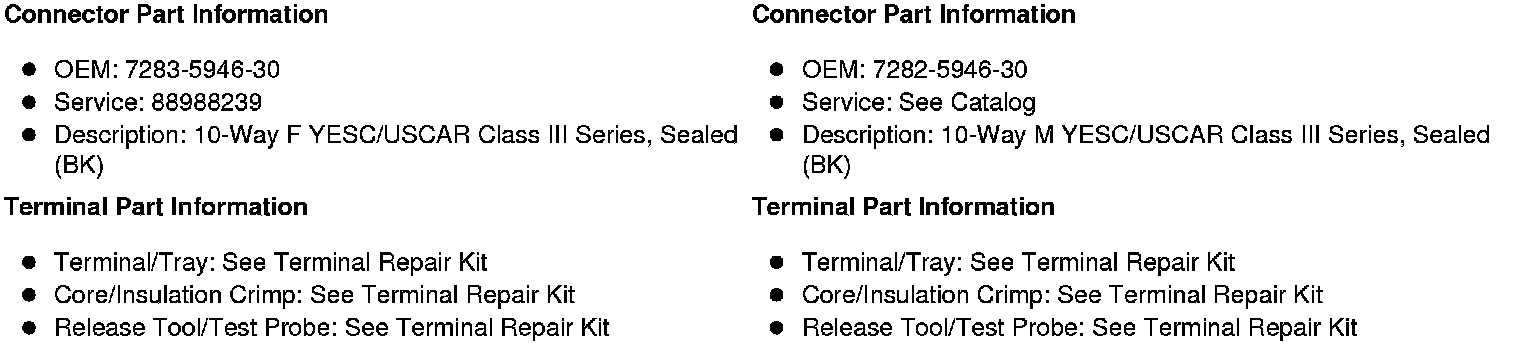

X112 Forward Lamp to Instrument Panel Harness (TR7 without F55 or UH3)
