Power Moding Diagrams



Power Moding Schematics

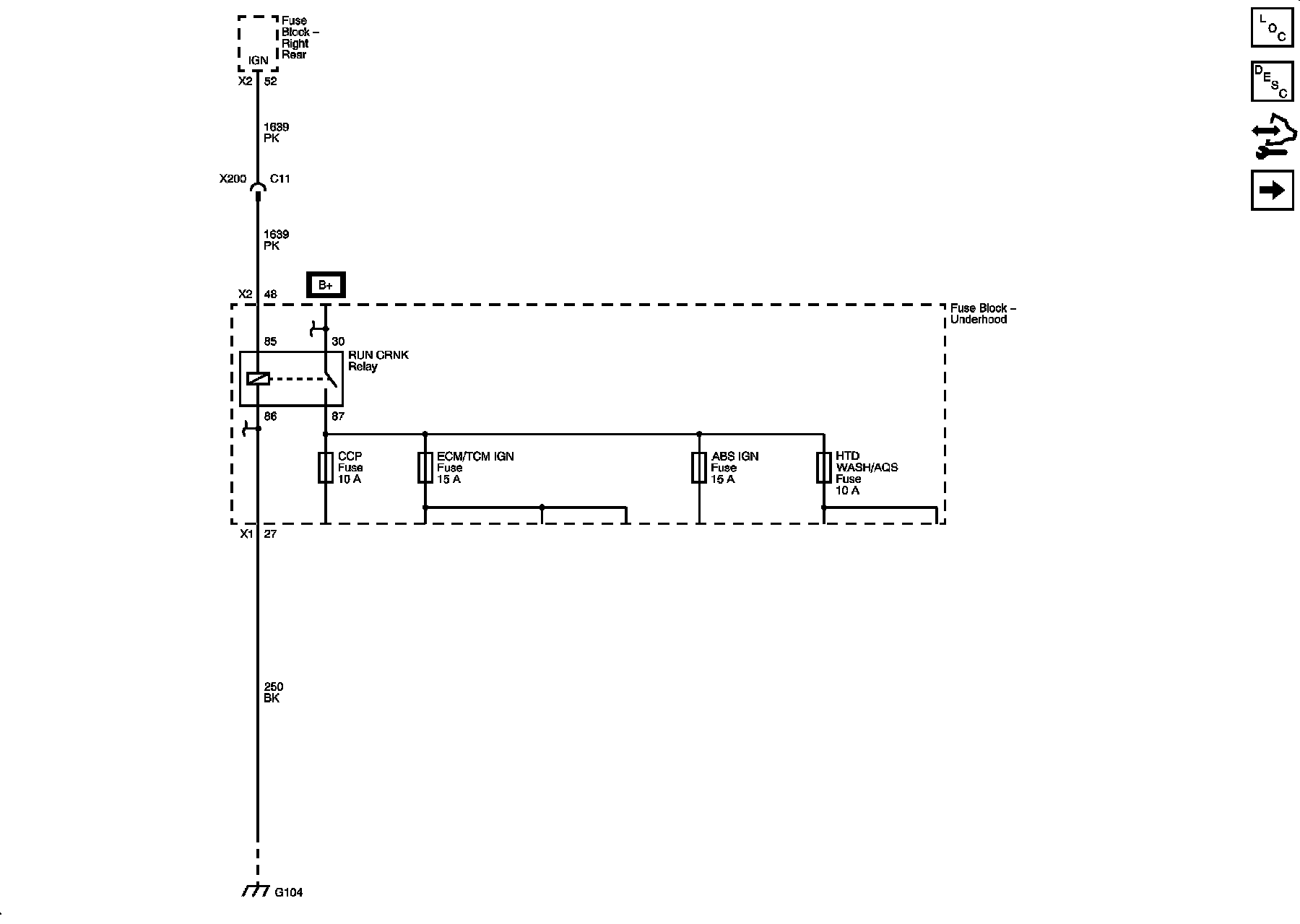

RUN CRNK Relay

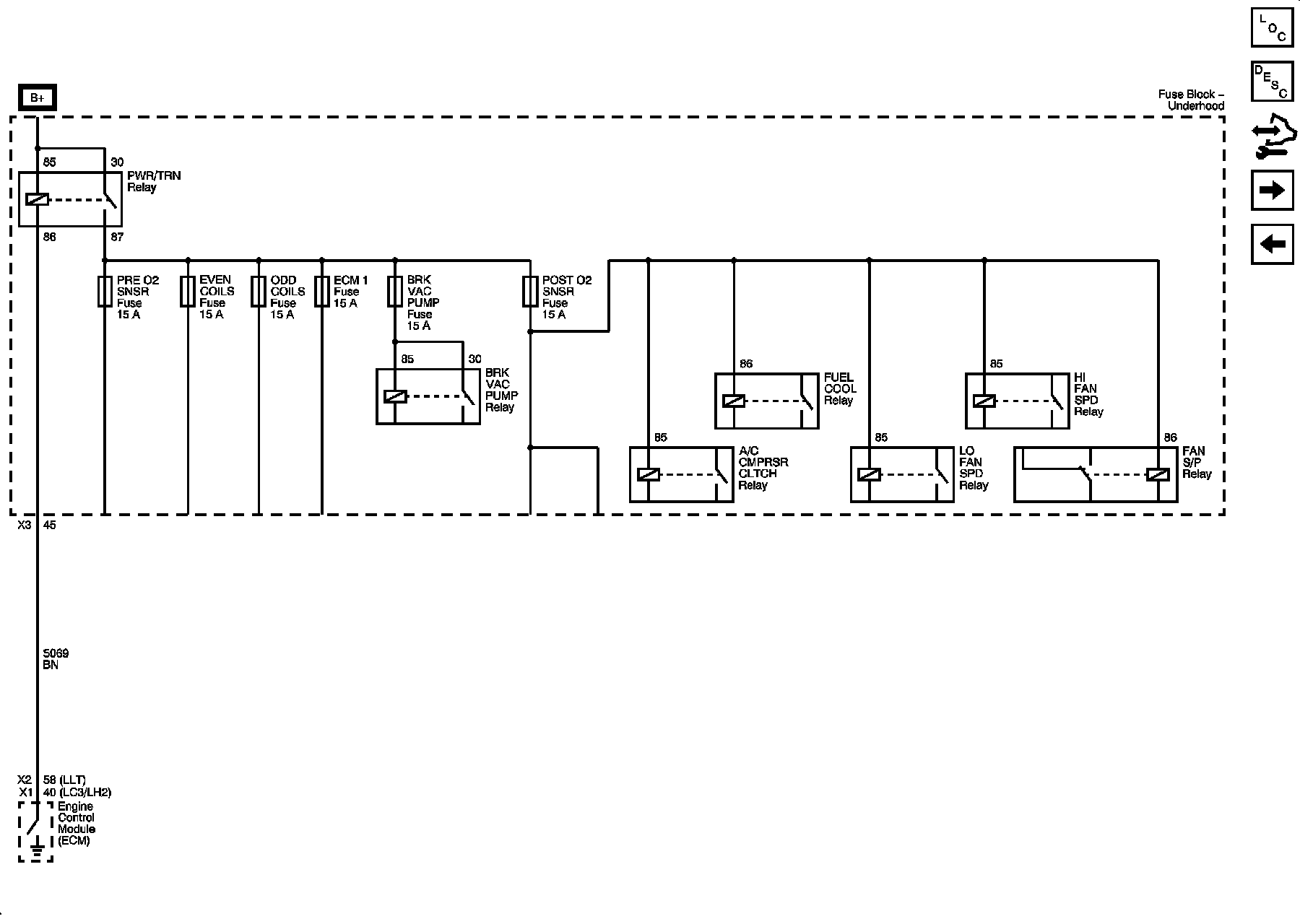

PWR/TRN Relay

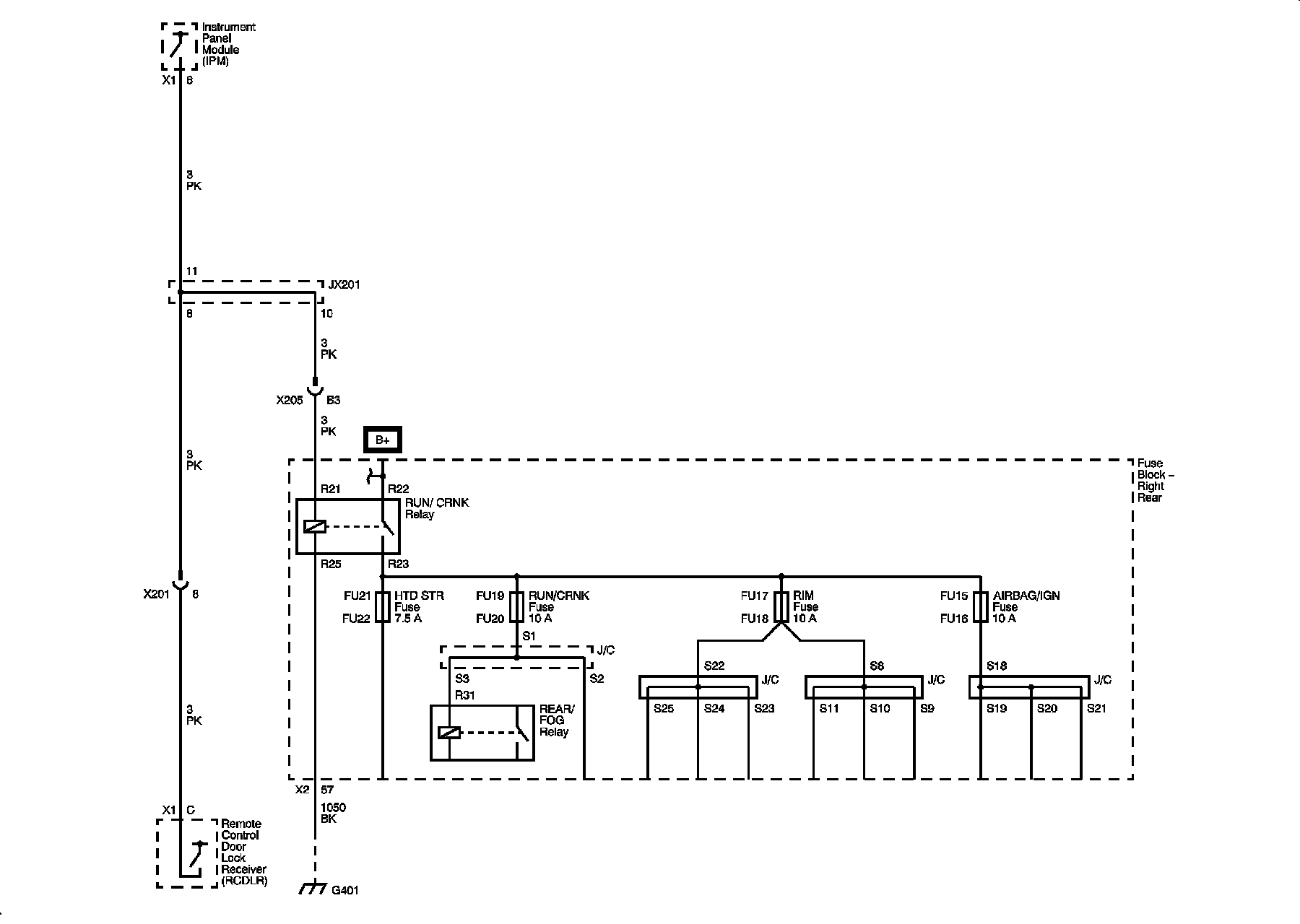

RUN/CRNK Relay

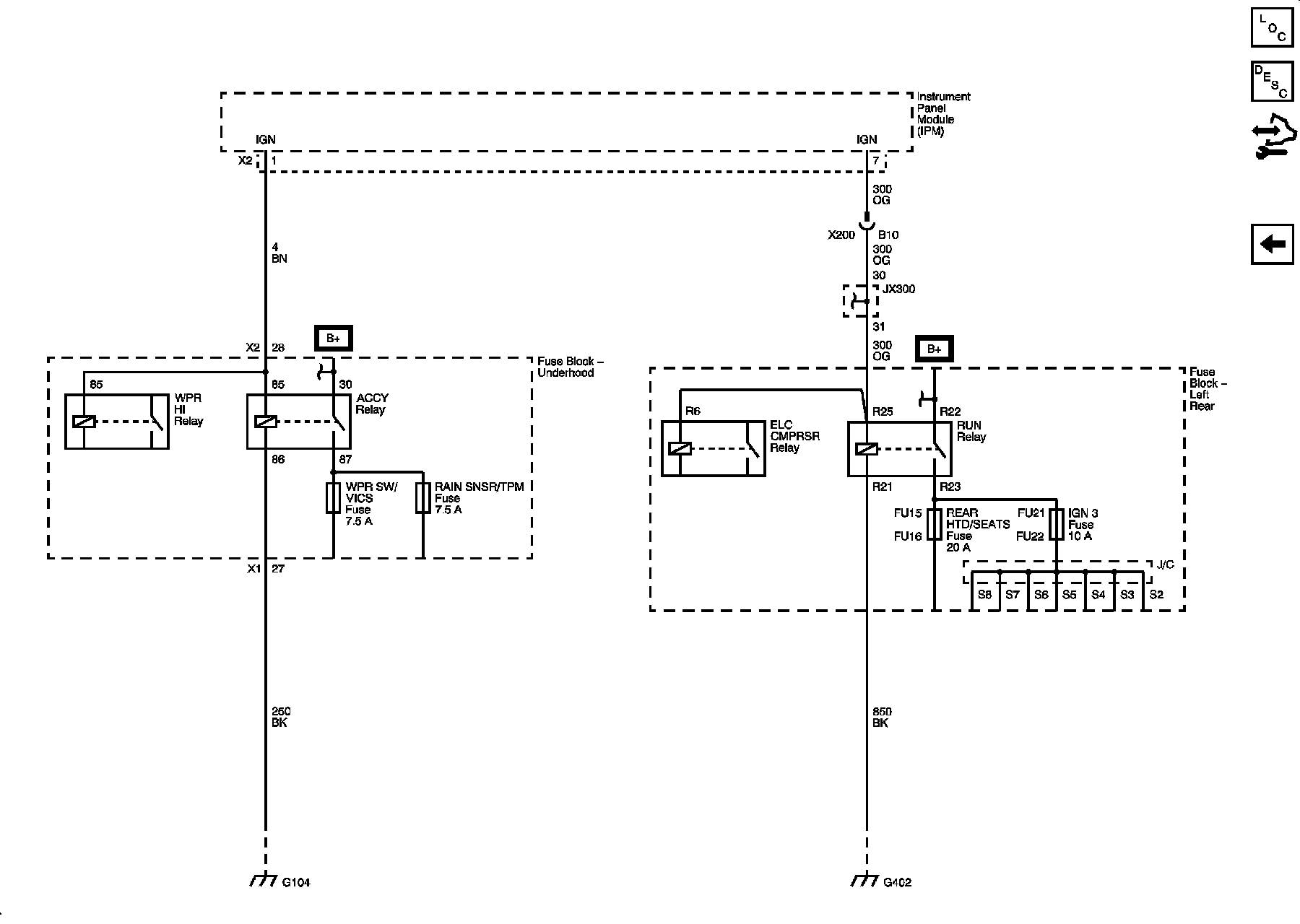

ACCY and RUN Relay
