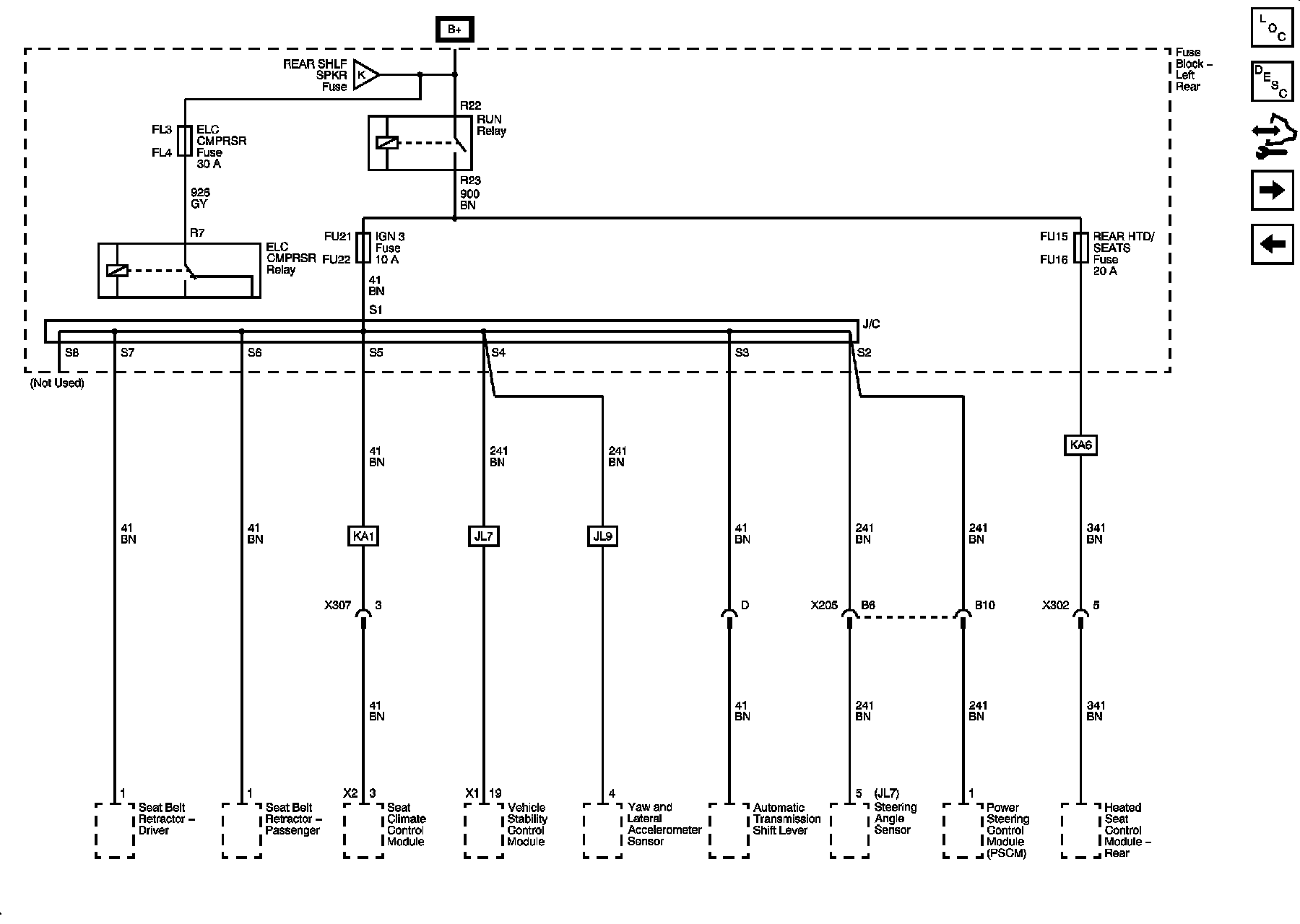

Power Distribution Diagram 15



Power Distribution Schematics

ELC CMPRSR, IGN 3, and REAR HTD/SEATS Fuses
