Steering Angle Sensor: Diagrams



Component Connector End Views

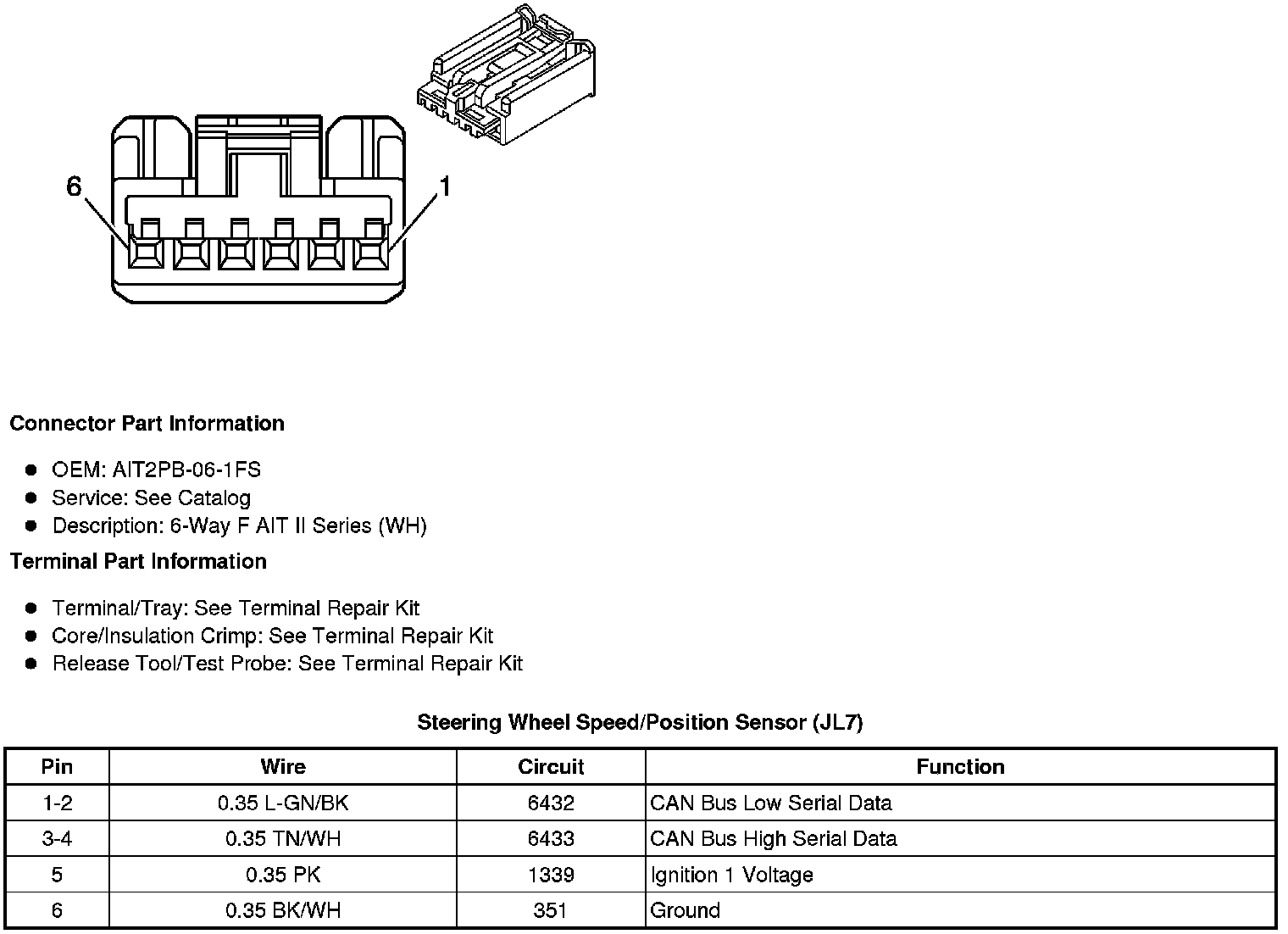

Steering Wheel Speed/Position Sensor (JL7)

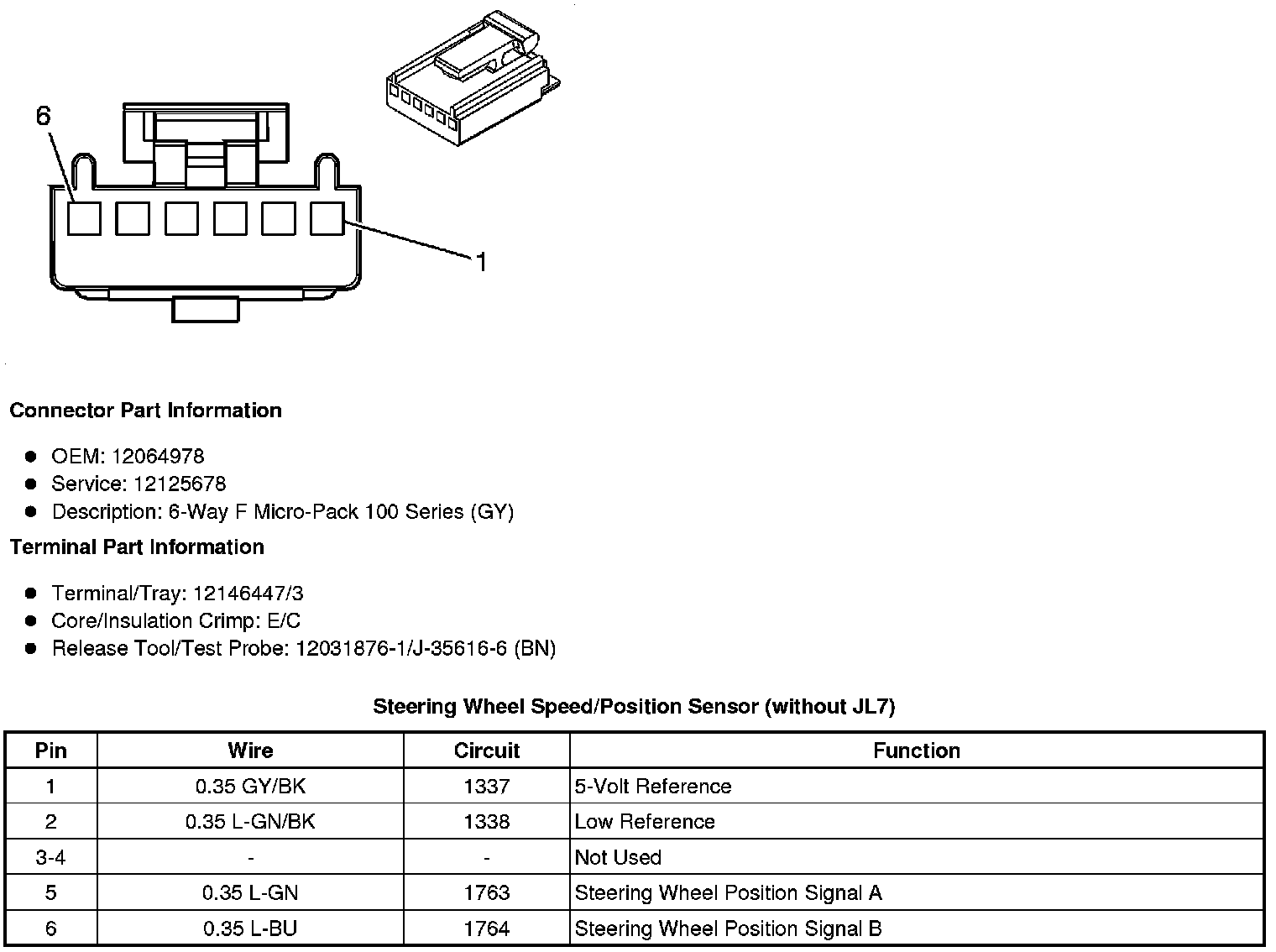

Steering Wheel Speed/Position Sensor (without JL7)
