Fuel Pressure Sensor/Switch: Diagrams



Component Connector End Views

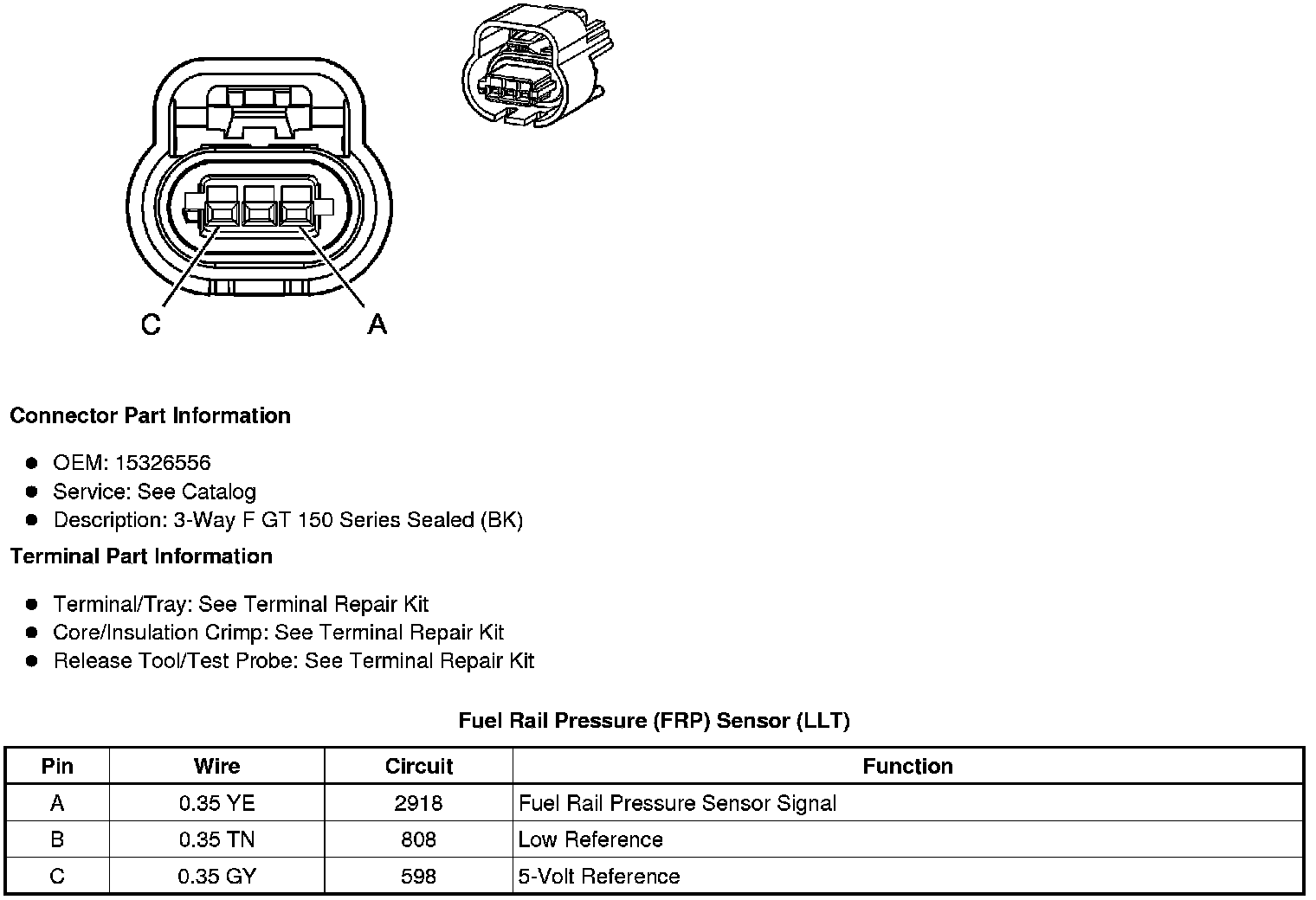

Fuel Rail Pressure (FRP) Sensor (LLT - Gas, 6 Cyl, 3.6L, Sidi, V6, Alum)
