Manifold Pressure/Vacuum Sensor: Diagrams



Component Connector End Views

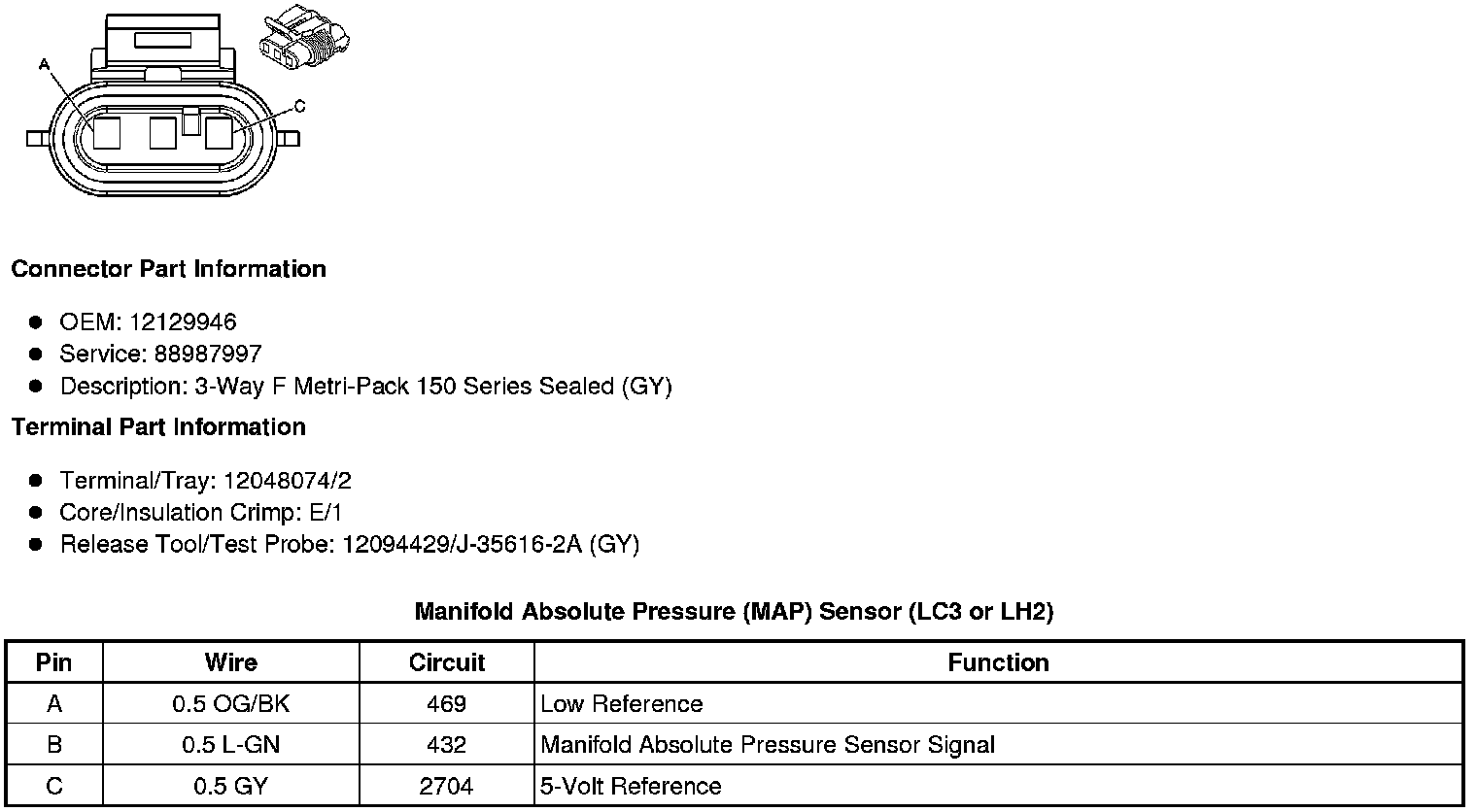

Manifold Absolute Pressure (MAP) Sensor (LC3 or LH2)
