Home >> Cadillac >> 2008 >> STS AWD V6-3.6L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Water Pump >> Service and Repair >> Auxiliary Water Pump Replacement

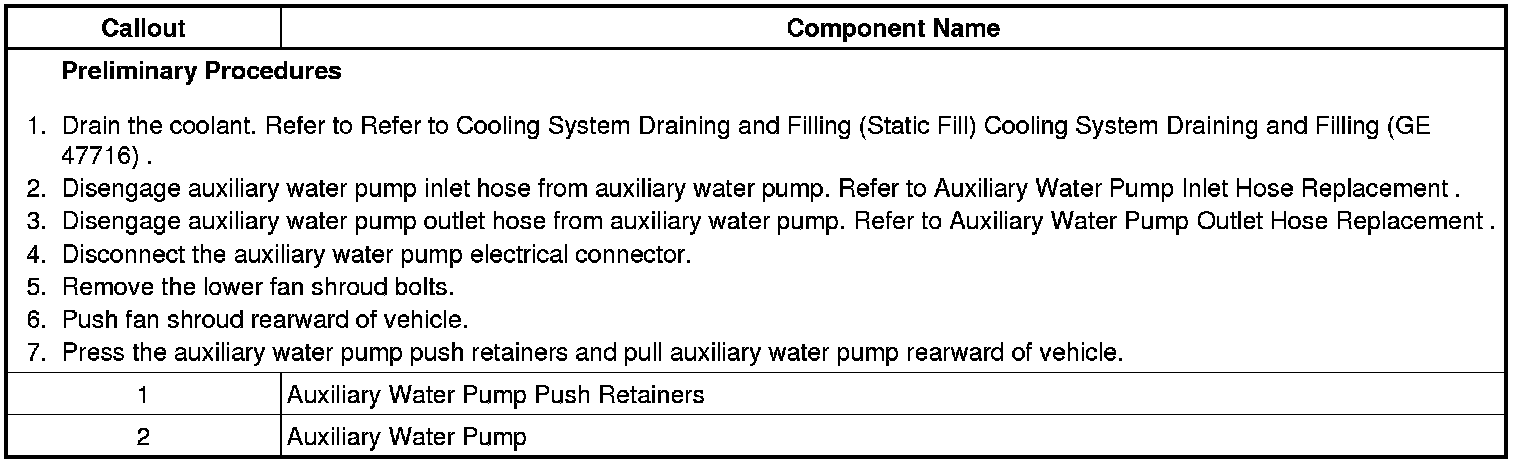

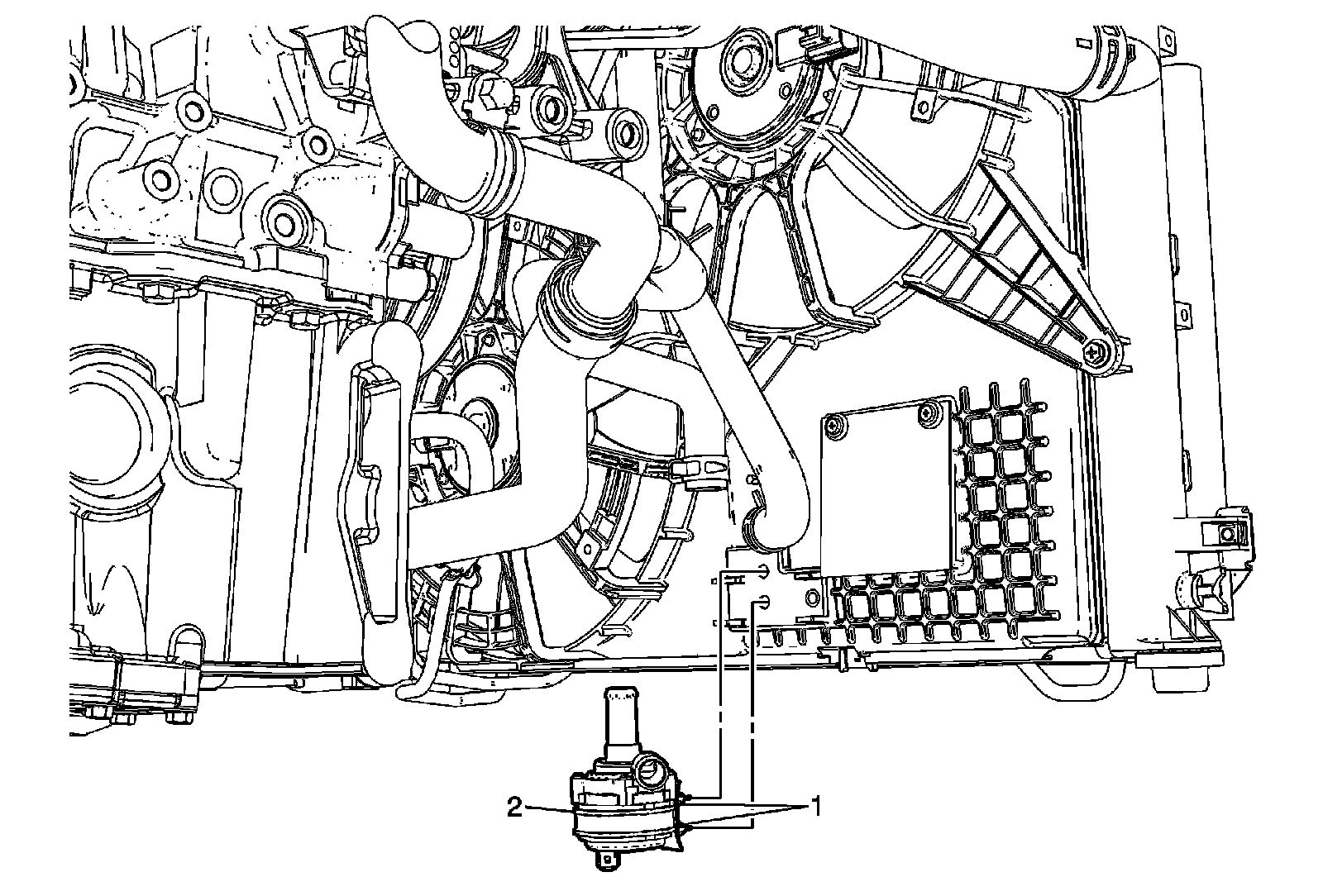

Auxiliary Water Pump Replacement



Auxiliary Water Pump Replacement (LLT - Gas, 6 Cyl, 3.6L, Sidi, V6, Alum)
