140. Drive Belt Tensioner Installation - Right Side

Drive Belt Tensioner Installation - Right Side

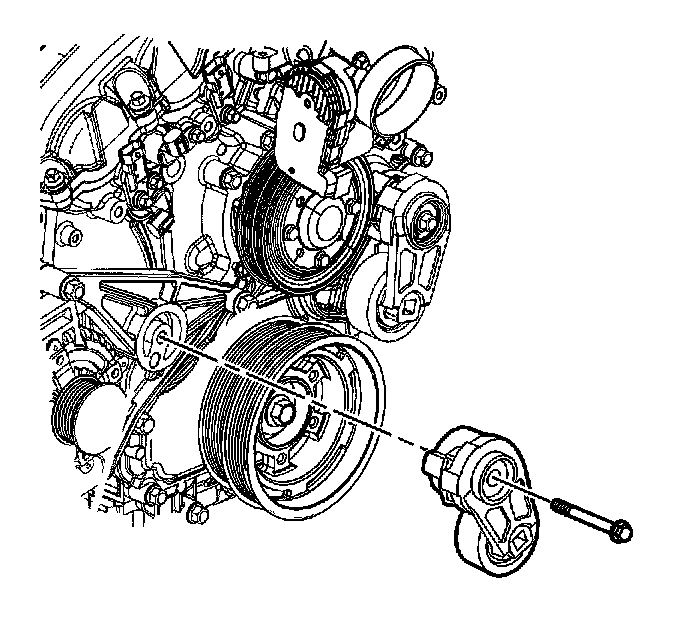

1. Place the right drive belt tensioner in position to the engine front cover.

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the right drive belt tensioner bolt.

Tighten the right drive belt tensioner bolt to 23 N.m (17 lb ft).
