Valve Rocker Arm Replacement - Right Side

Valve Rocker Arm Replacement - Right Side

Removal Procedure





1. Remove the applicable camshafts. Refer to Camshaft Replacement - Right Side (LP1, LY7) (Camshaft Replacement - Right Side (LP1, LY7))Camshaft Replacement - Right Side (LLT) (Camshaft Replacement - Right Side) .

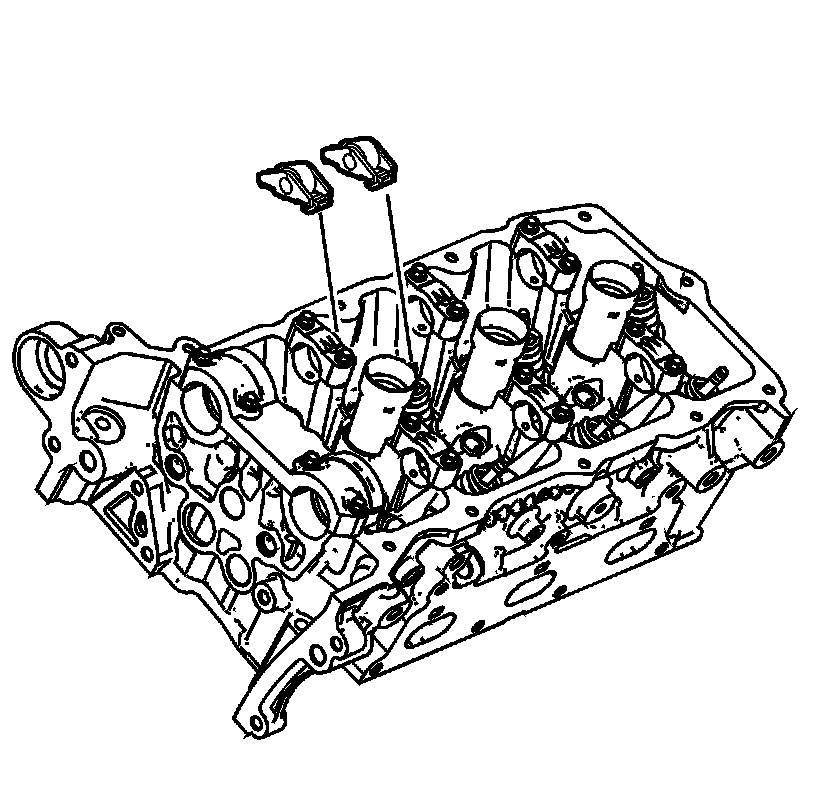

2. Remove the rocker arms. Refer to Valve Rocker Arm Removal - Right Side (Overhaul) .
3. Clean and inspect the camshafts and the rocker arms. Repair or replace as necessary. Refer to Camshaft Cleaning and Inspection () and Valve Rocker Arm Cleaning and Inspection (Overhaul) .



Installation Procedure





1. Install the rocker arms. Refer to Valve Rocker Arm Installation - Right Side (Overhaul) .
2. Install the applicable camshafts. Refer to Camshaft Replacement - Right Side (LP1, LY7) (Camshaft Replacement - Right Side (LP1, LY7))Camshaft Replacement - Right Side (LLT) (Camshaft Replacement - Right Side) .
