System Diagram

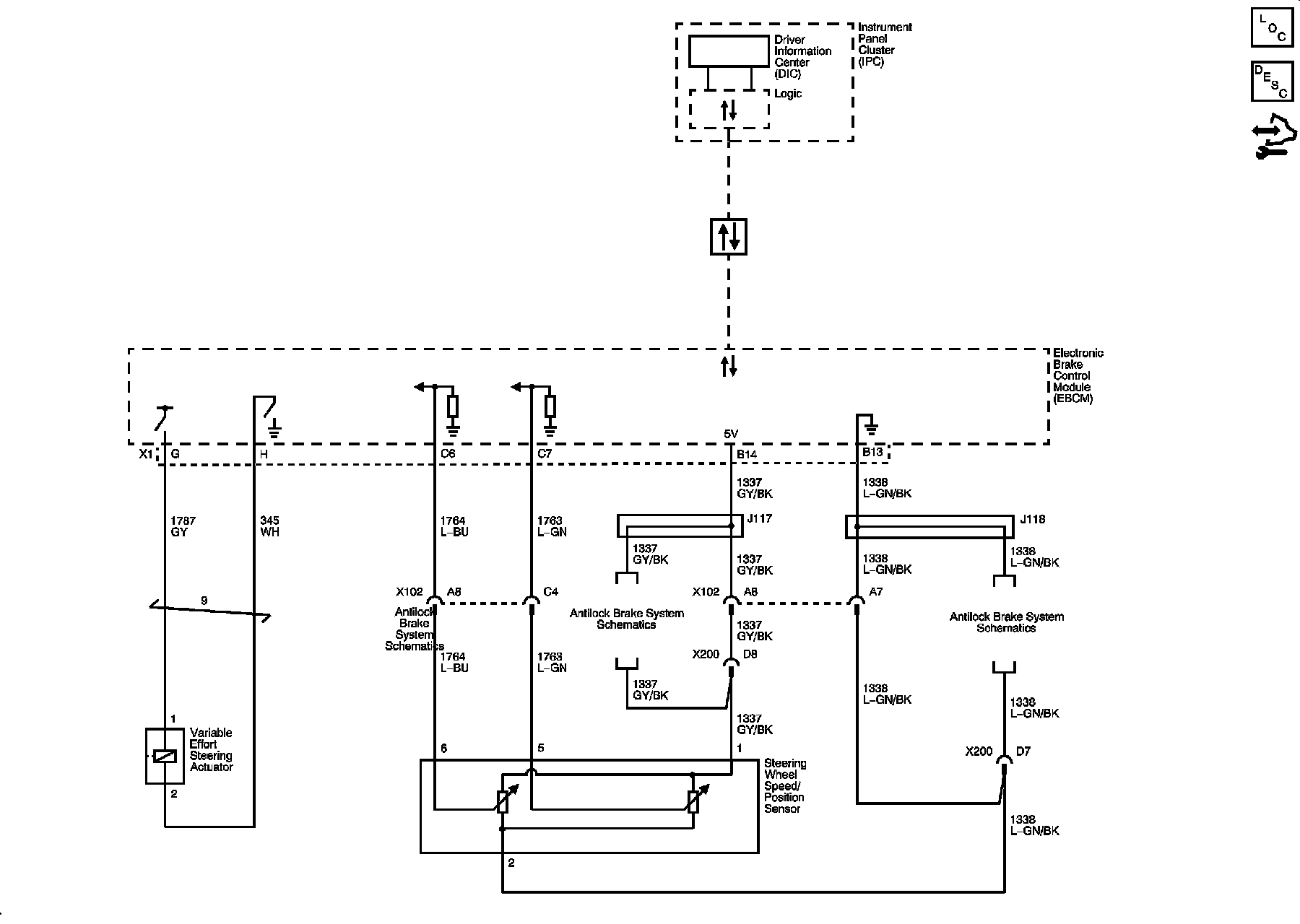

Power Steering Schematics

Variable Effort





Active Front Steering Module and Actuator - JL7
