Home >> Cadillac >> 2008 >> STS AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Ground Distribution Diagrams >> G402

G402



Ground Distribution Schematics

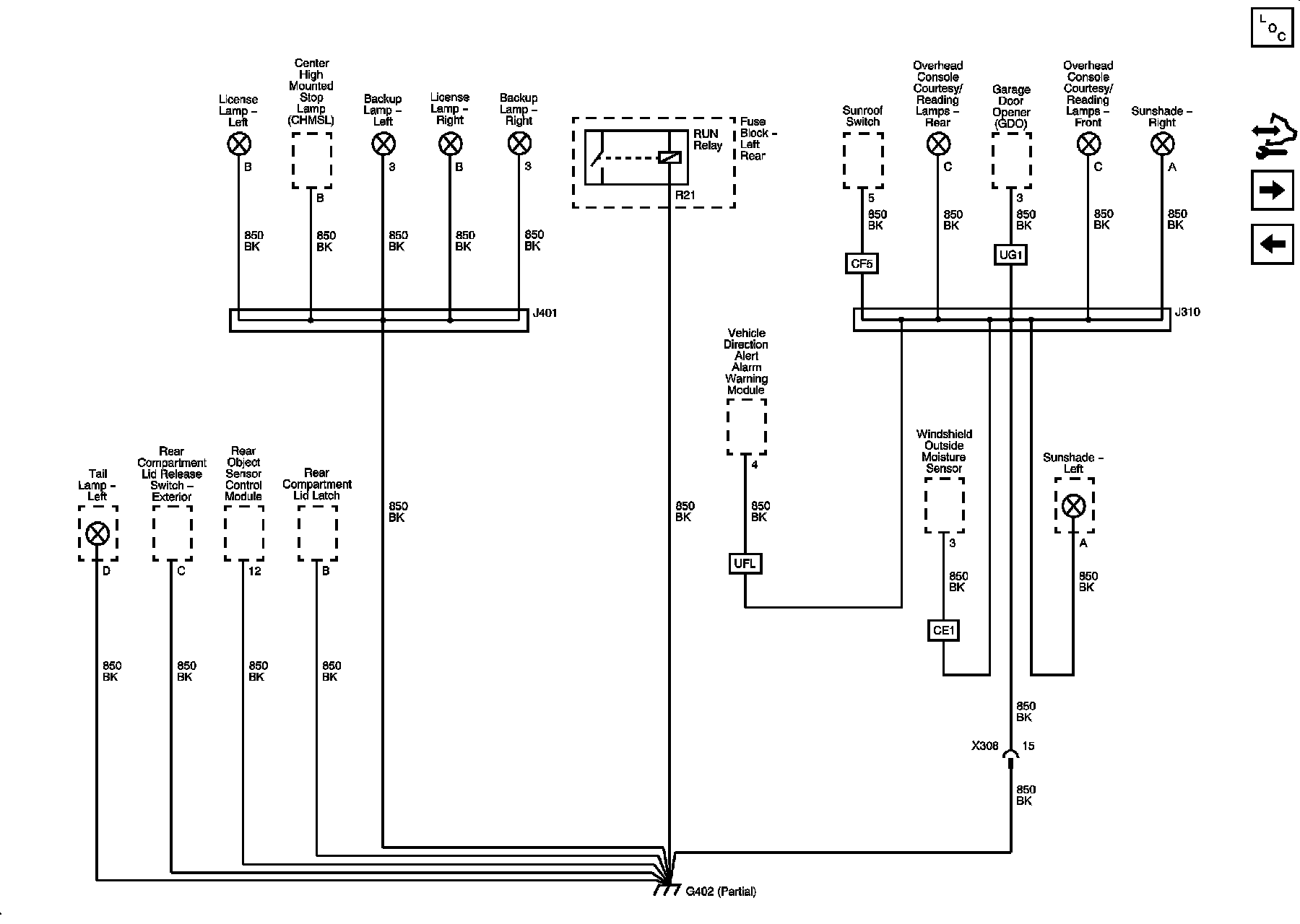

G402 (1 of 2)





G402 (2 of 2)
