Information Bus
Data Communication Schematics
Power, Ground, and Low Speed GMLAN Serial Data
GMLAN - High Speed Serial Data Wake Up
GMLAN High Speed Serial Data (North America)
GMLAN High Speed Serial Data (except North America)
Data Communication Schematics

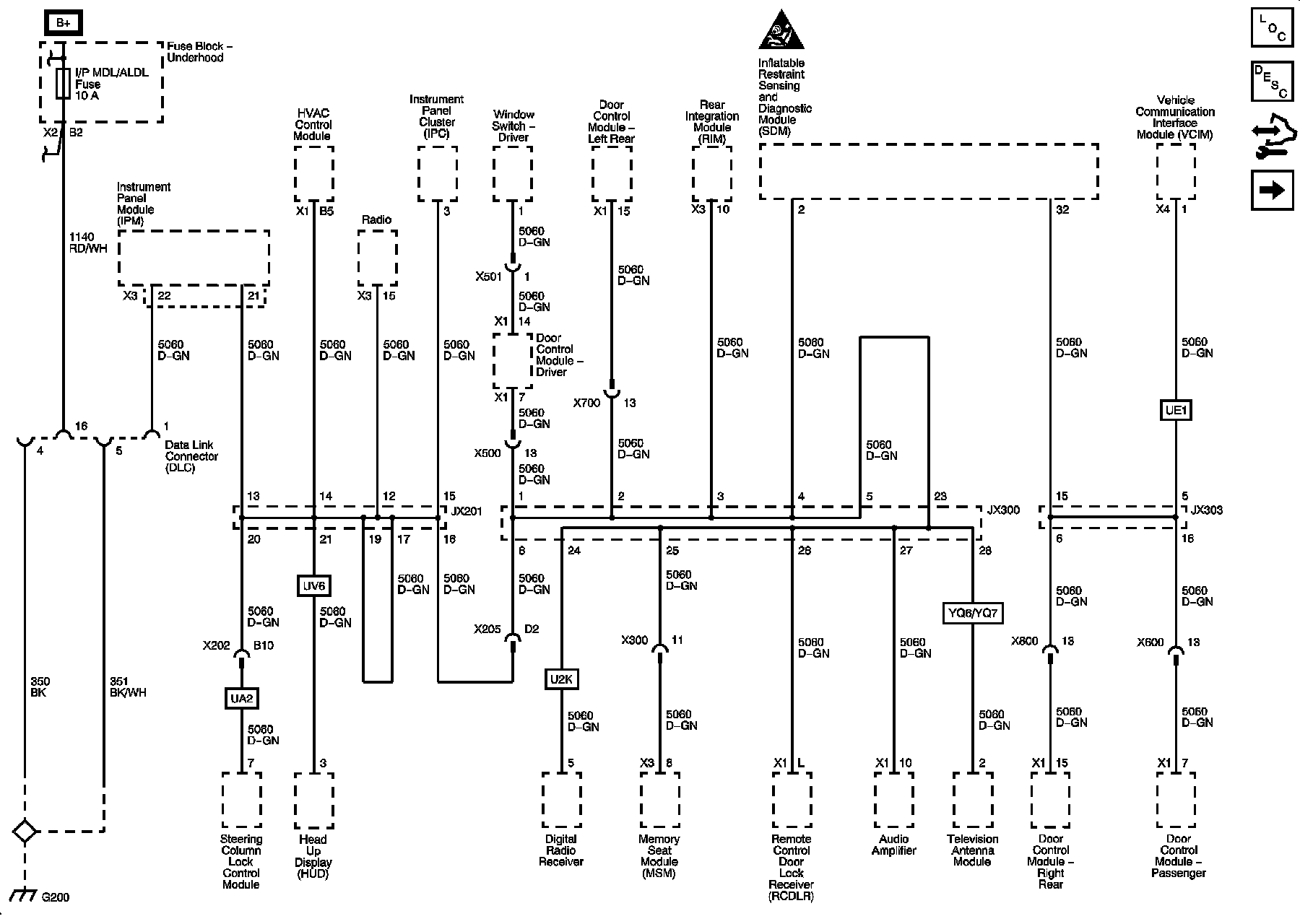

Power, Ground, and Low Speed GMLAN Serial Data

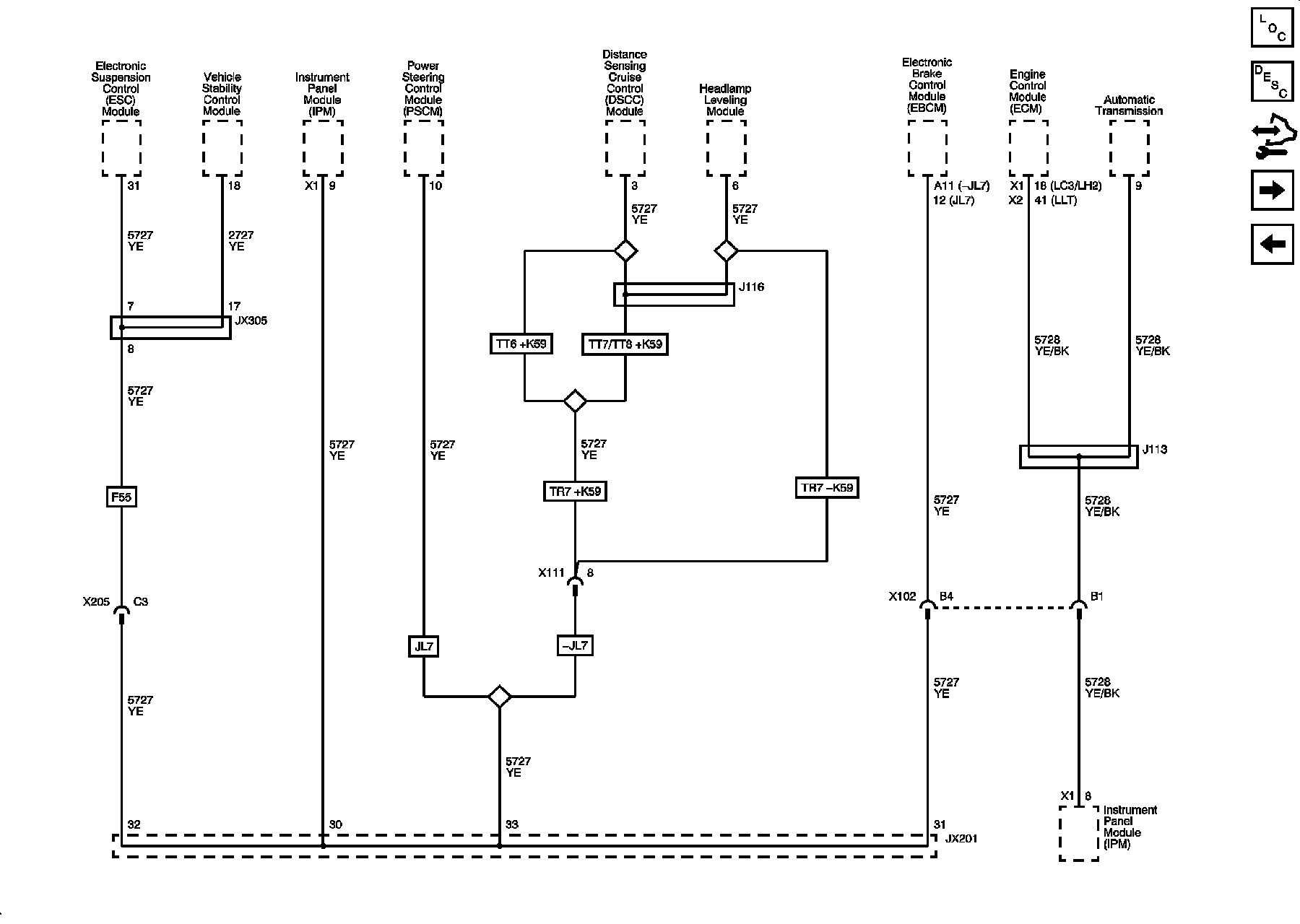

GMLAN - High Speed Serial Data Wake Up

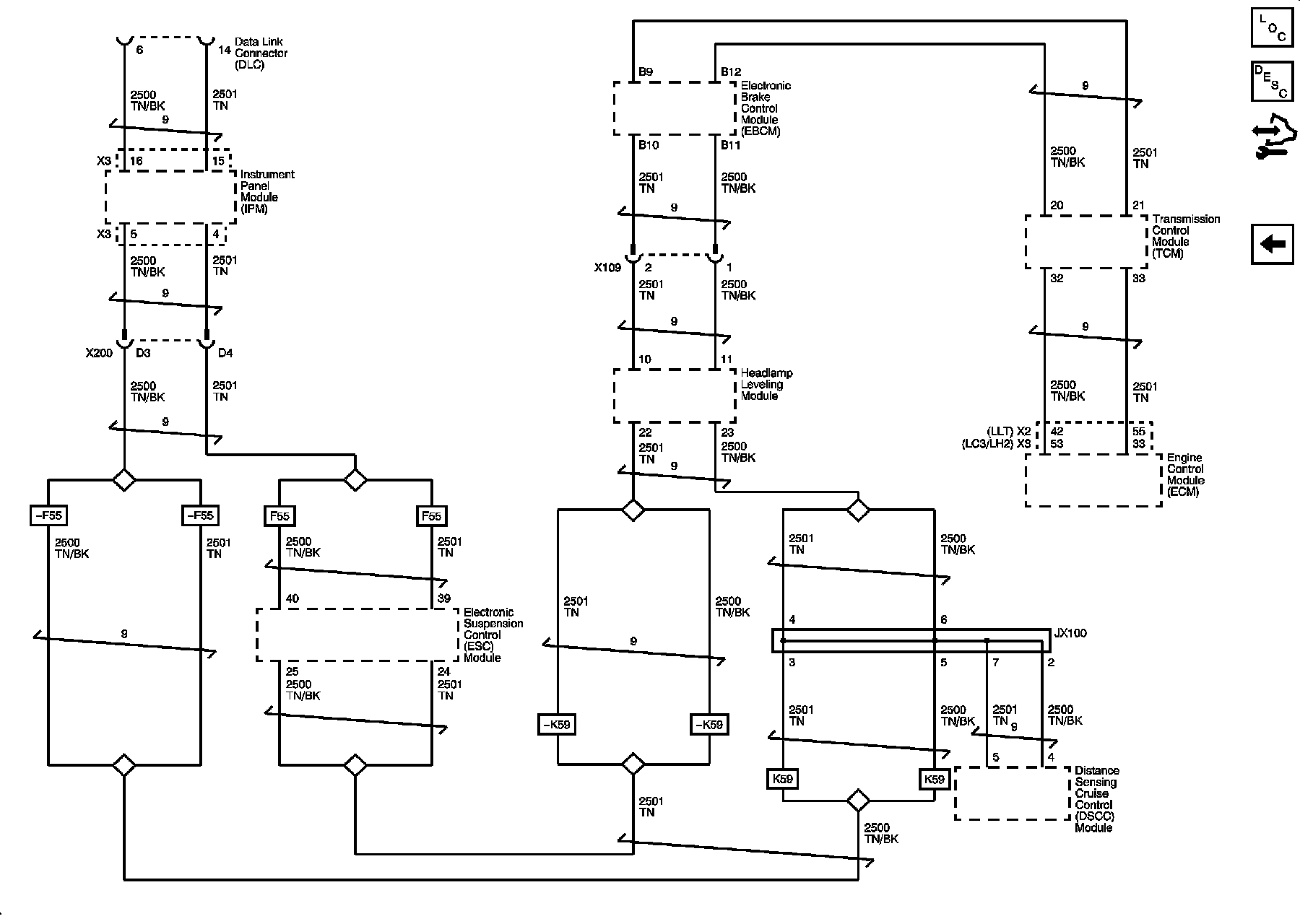

GMLAN High Speed Serial Data (North America)

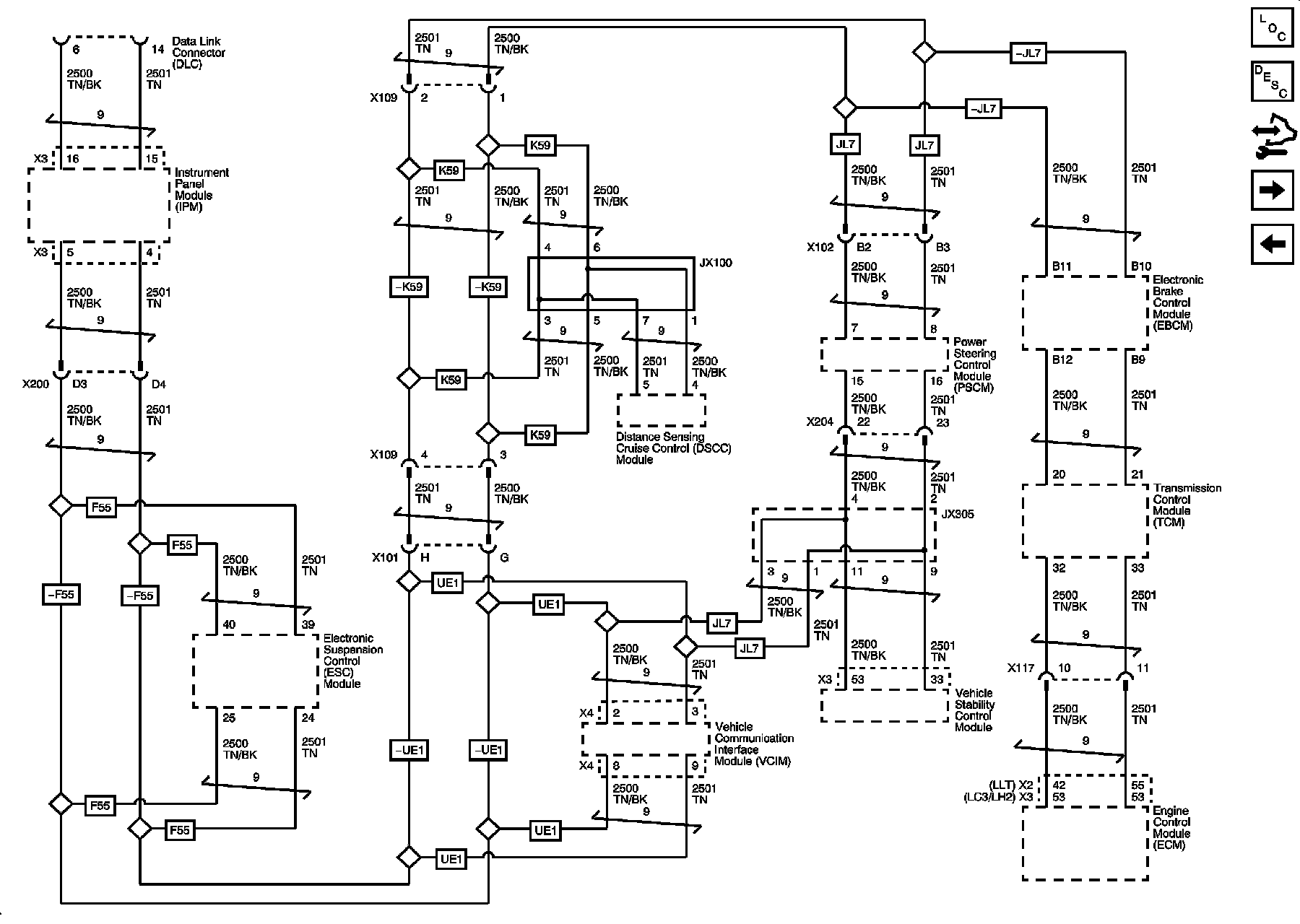

GMLAN High Speed Serial Data (except North America)
