Cadillac
>>
2008
>>
STS AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Navigation System
Navigation System

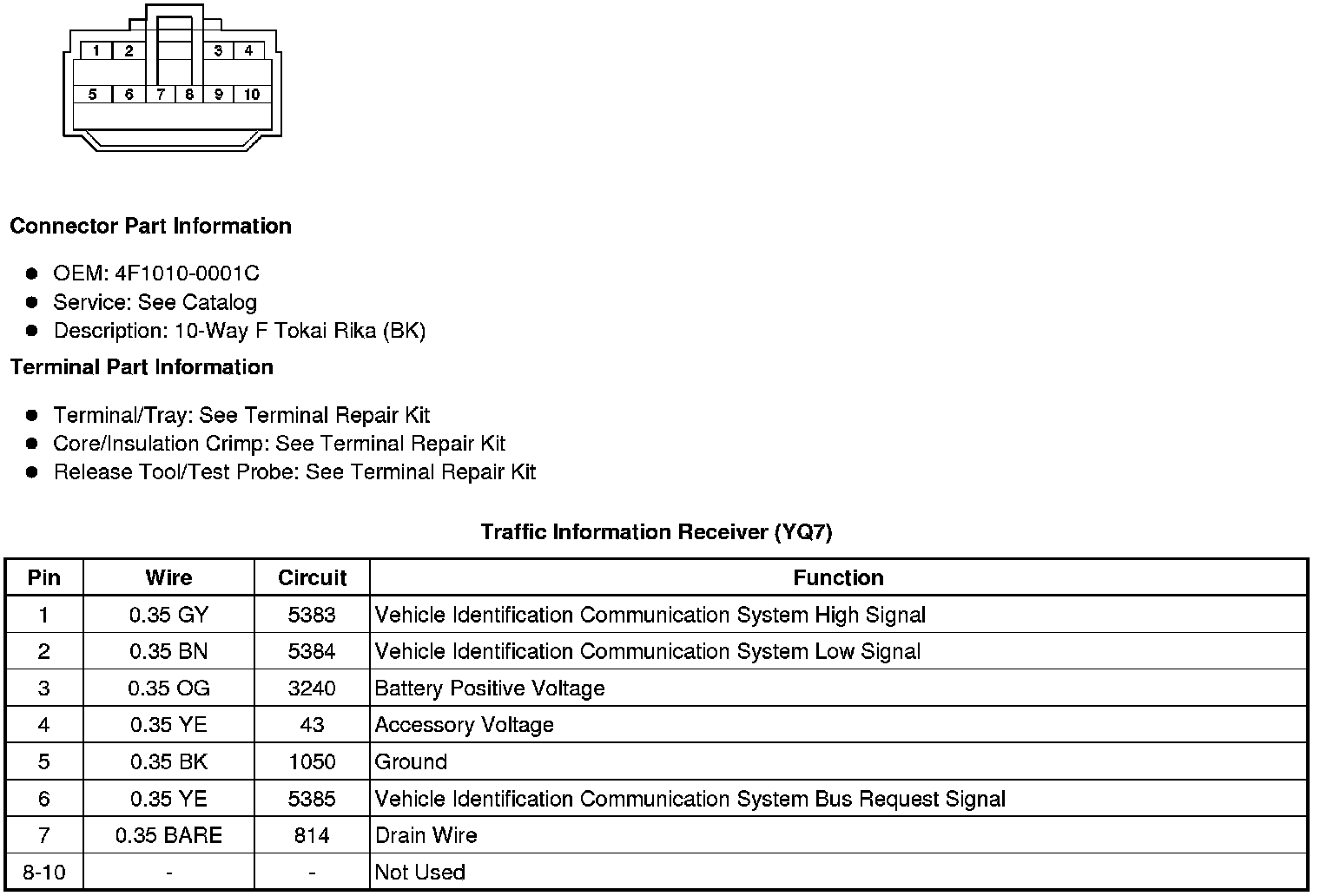

Component Connector End Views
Traffic Information Receiver (YQ7)
