System Diagram



Component Connector End Views

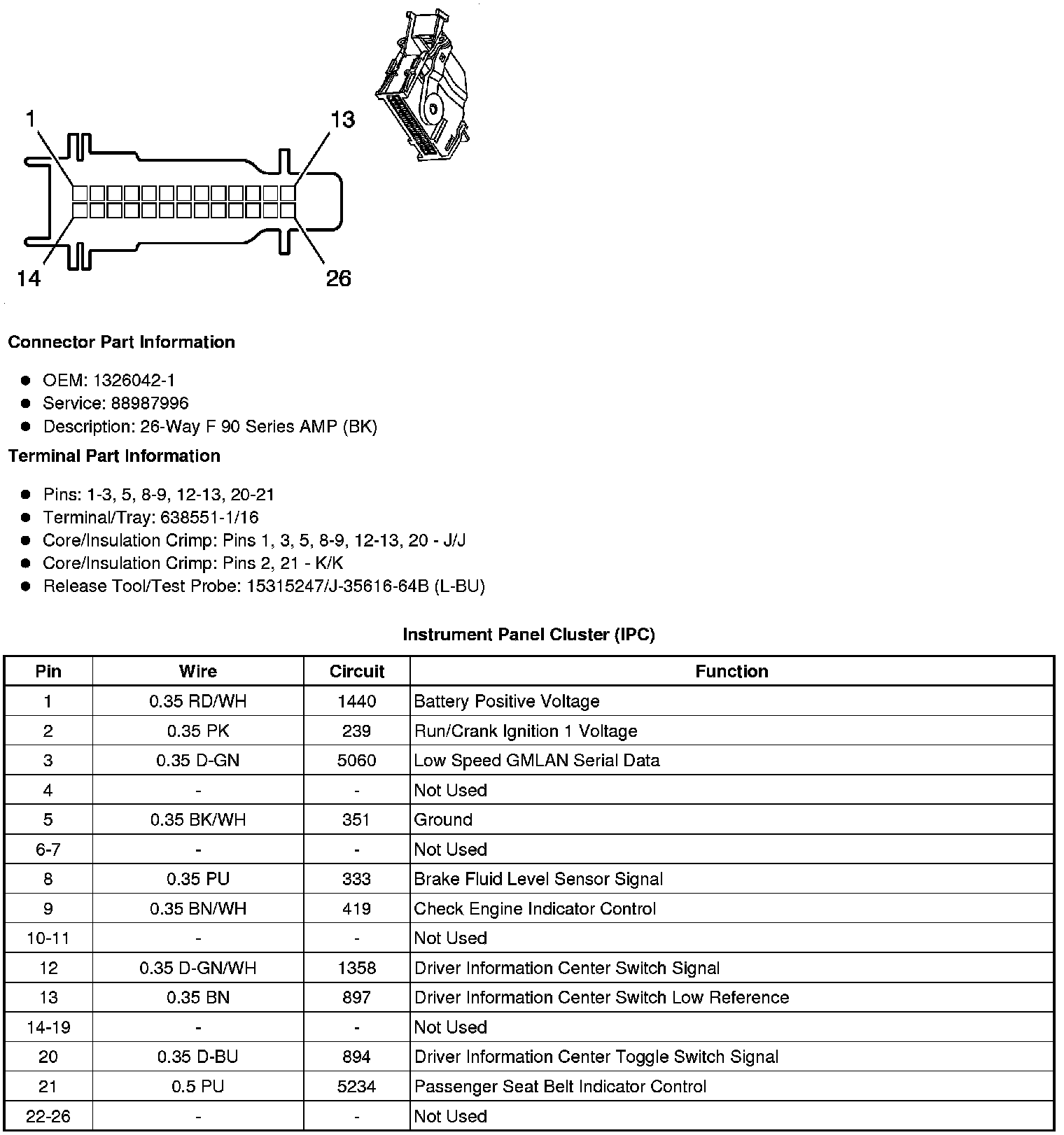

Instrument Panel Cluster (IPC)






Instrument Panel Module (IPM) X1

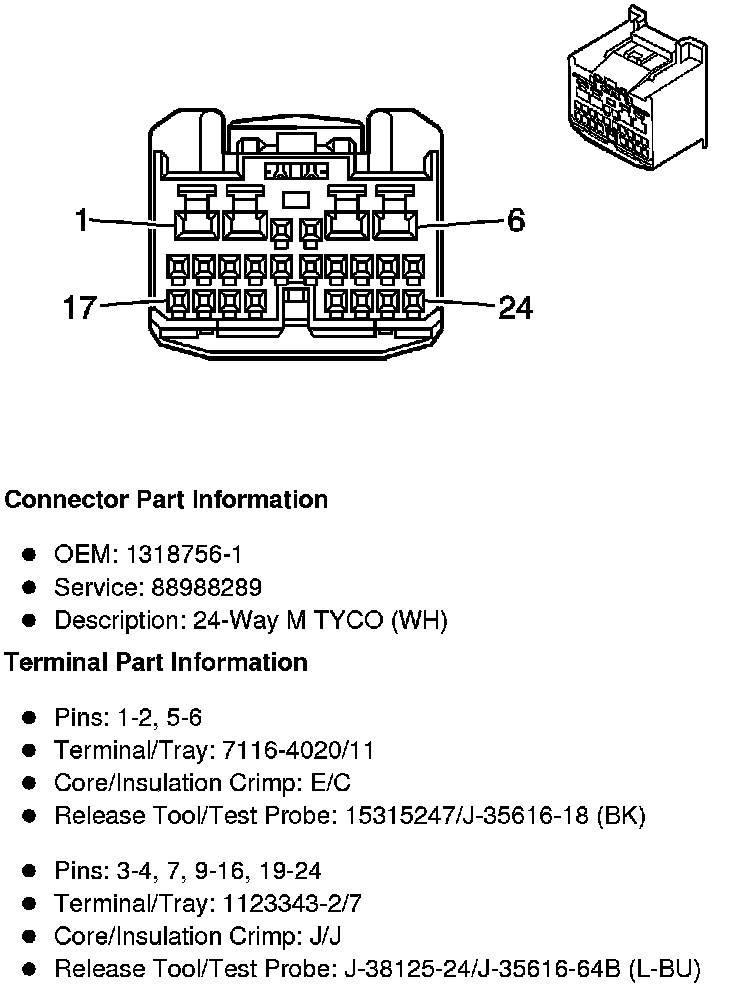

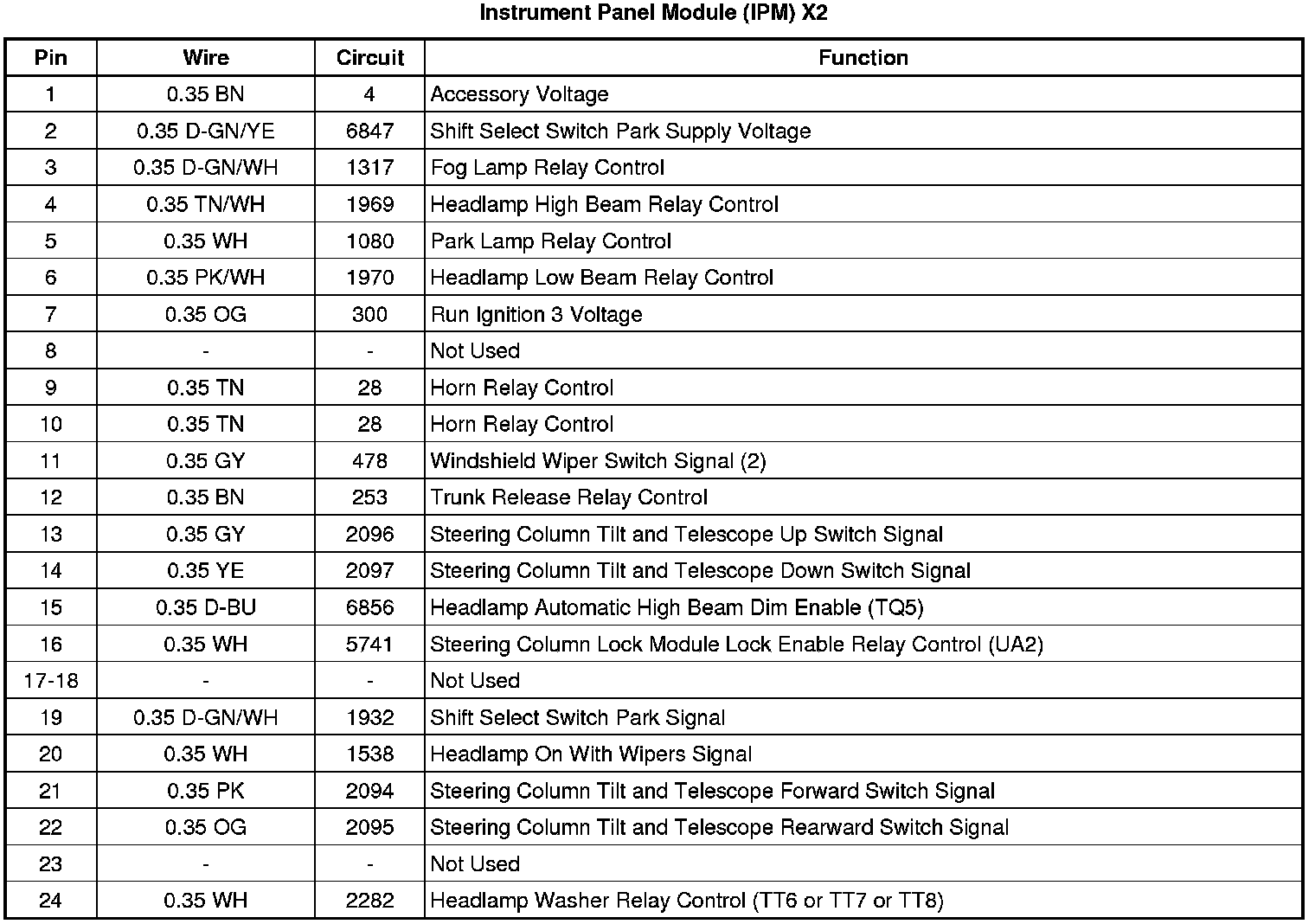

Instrument Panel Module (IPM) X2

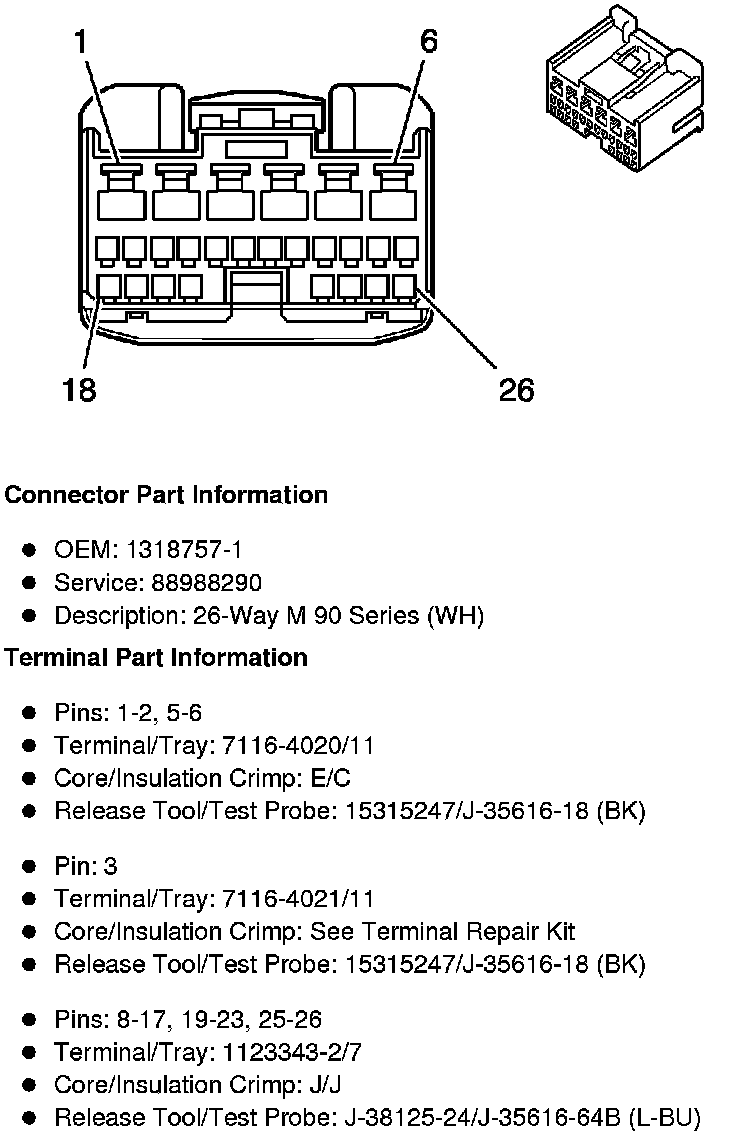

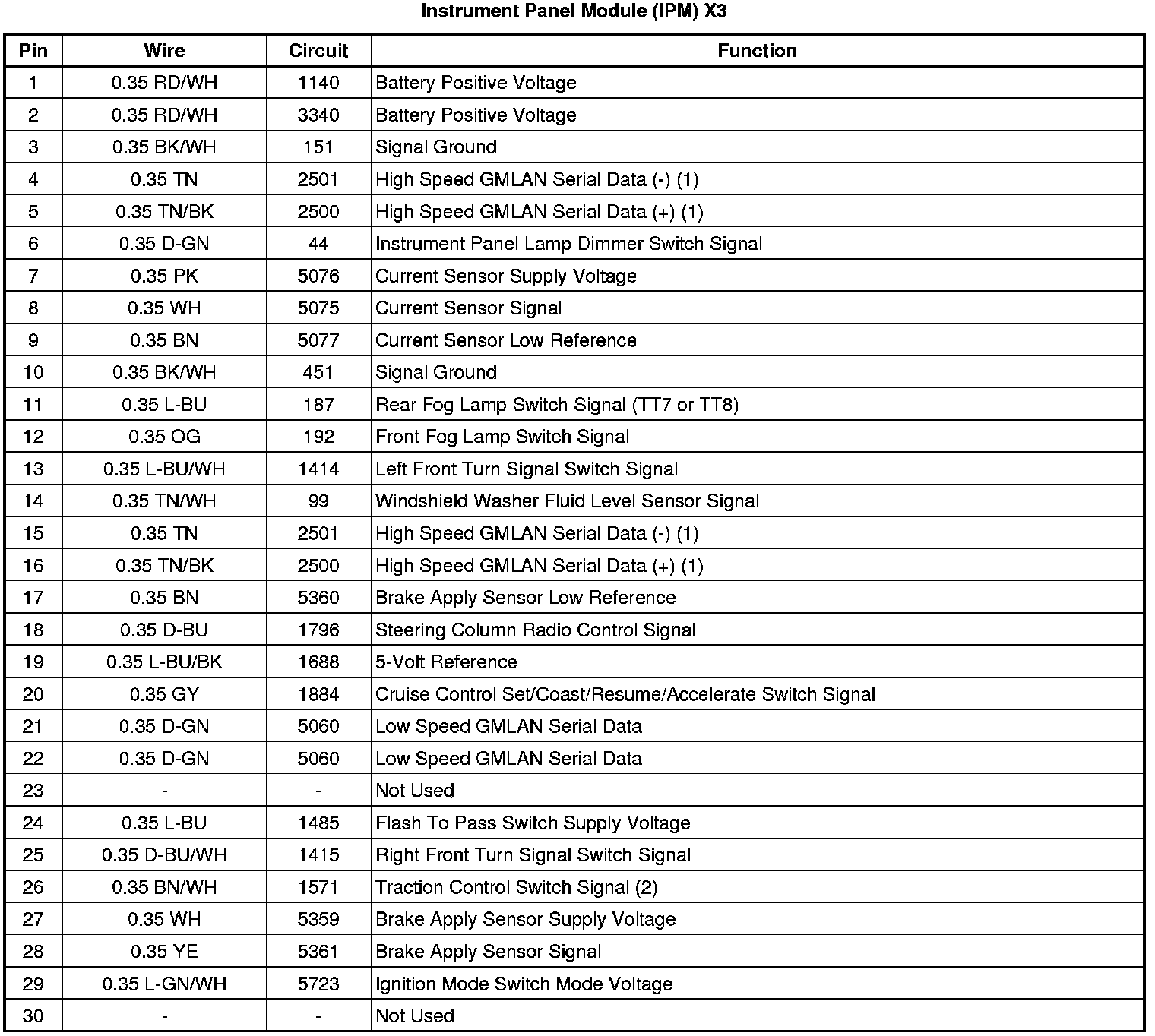

Instrument Panel Module (IPM) X3
