Front Door Handle Switch



Component Connector End Views

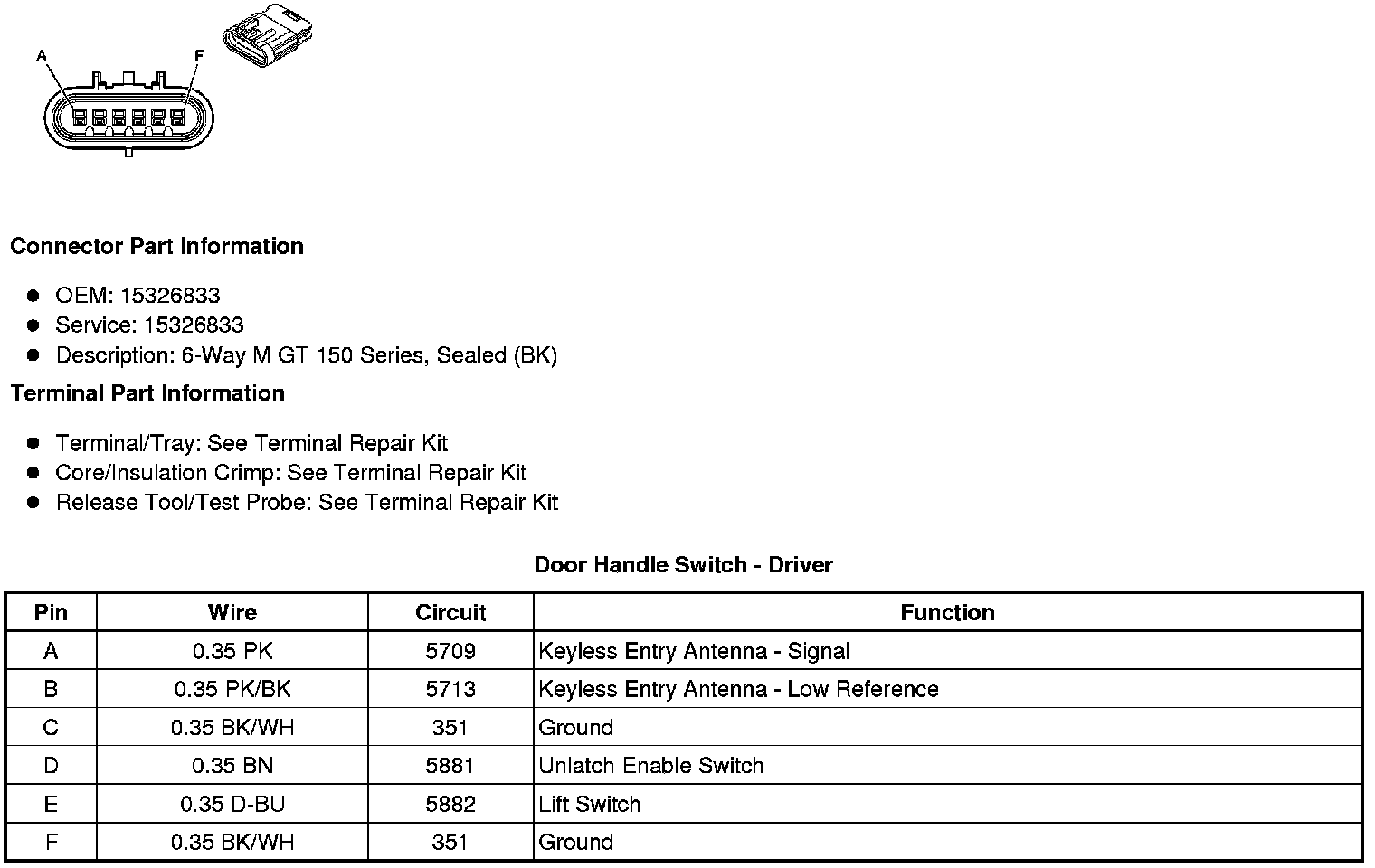

Door Handle Switch - Driver






Door Handle Switch - Passenger
